Omron V600 Series Operation Manual

4-2SectionMonitor Unit Operation List
57
Note 1. Data setting is not required for an operation test with the test read or test
auto read command to check the relationship of the position.
2. If the DC’ s memory capacity is more than 256 bytes, data cannot be written
to address 00 or 01 when page 0 is set with a page number because these
addresses are used to register the production month and year of the DC.
Nothing can be written to addresses 0002 to 0005 because these addresses
are used as a write protected area.
or If the DC’ s memory capacity is 256 bytes or less, no data can be written to
address 00 when page 0 is set with a page number because this address is
used as a write protected area.

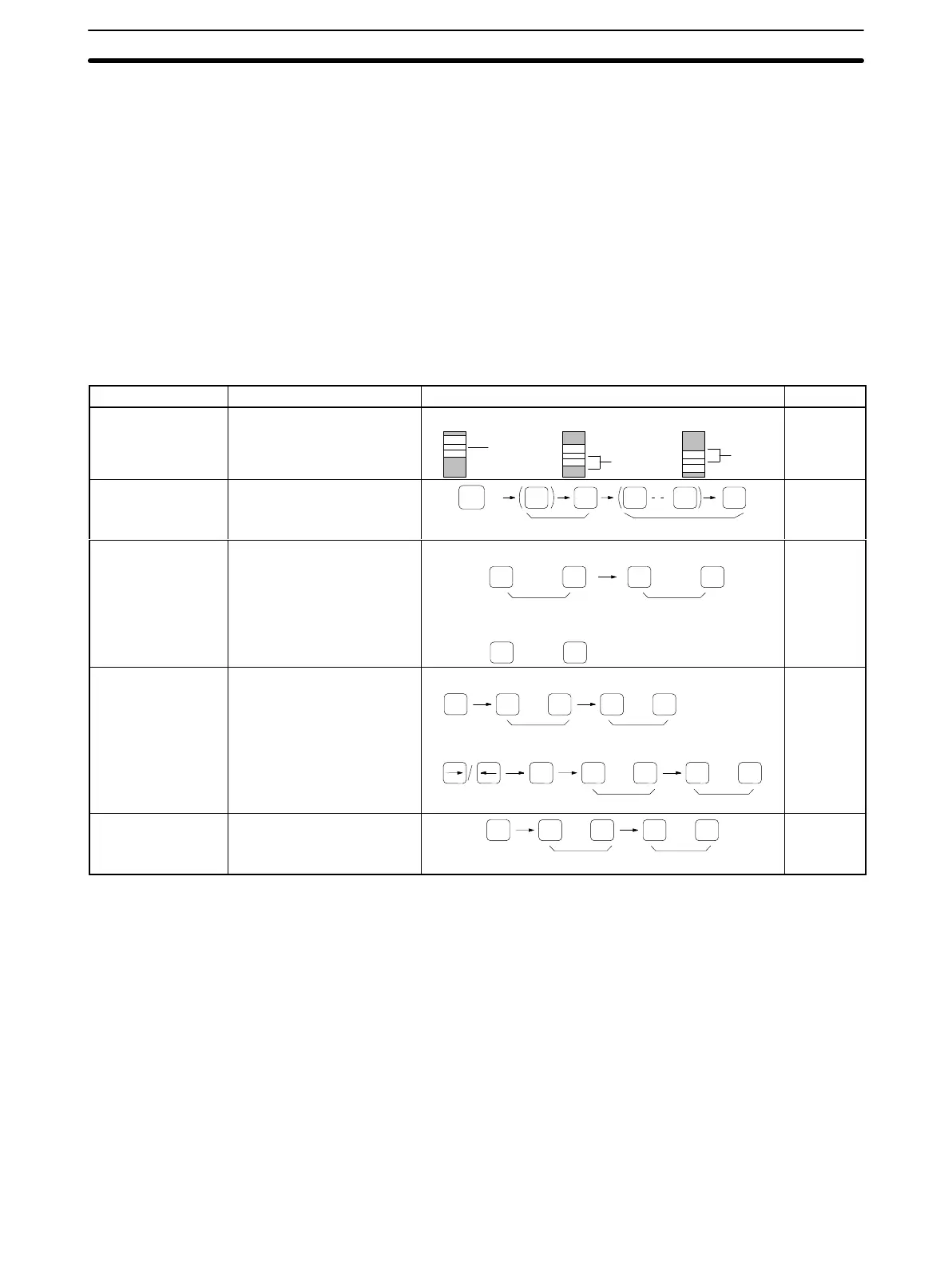

4-2 Monitor Unit Operation List
4-2-1 Basic Operations
Operation mode Description Basic operation procedure Page
Changing operation
mode
Switches ID Controller
operation mode
MONITOR
RUN
RUN
or
MONITOR Mode RUN Mode
59
Job specification Specifies head and page
numbers required for given
operations
INC
JOB
INC SET SETINC
Head no. setting Page no. setting
60
Numerical keys Used for setting address,
specifying data, and
selecting functions
Fo
to
Fo
to
Address and data specifications
Upper digit Lower digit
41
to
Function selection
60
Address setting Sets the address from
which data is read or to
which data is written in the
range 00 to FF.
ADRS
Fo
to
Fo
to
Start address
Upper digit Lower digit
End address
ADRS Fo Fo
to to
Upper digit Lower digit
61
Data specification Specifies the 8-bit data (00
to FF) to be written to the
DC.
DATA
Fo Fo
to to
Upper digit Lower digit
62
Note Monitor Unit read and write data is limited to HEX code.

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
