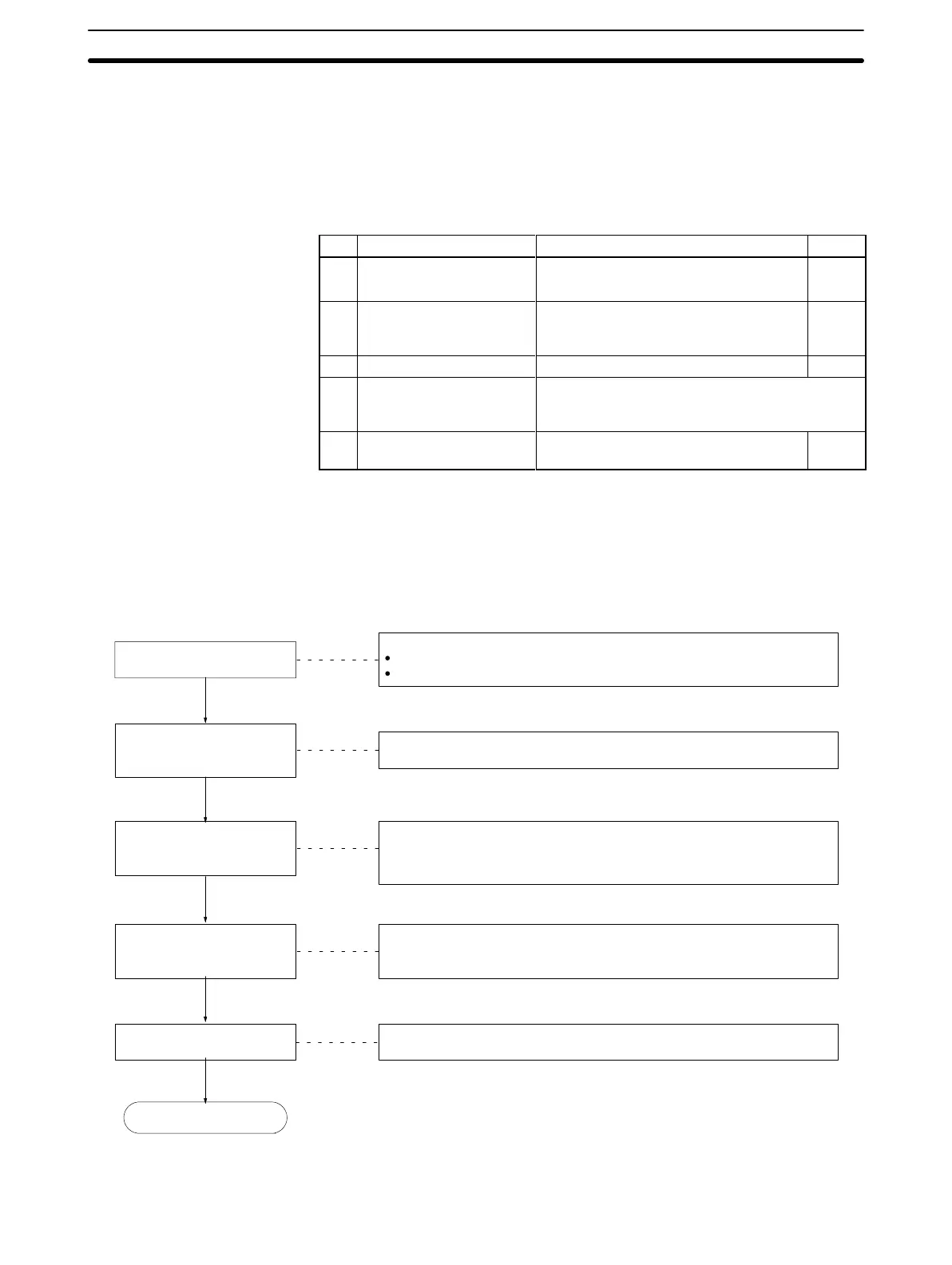

6-1 Test Operation
6-1-1 Checklist
Check the following items before performing the test operation.
No. Check items Checks Page
1 Power supply and I/O line
connections
Has wiring been done correctly?
Are the terminal screws loose?
80
2 DIP switch settings Have settings been made correctly
according to communications
specifications?
83
3 R/W Head connection Are R/W Heads connected correctly? 82
4 DC positioning Are DCs and R/W Heads correctly positioned?
Refer to the
R/W Head and Data Carrier
Operation Manuals
for details.
5 Connections to host
computer
Is RS-232C or RS-422 connector
connected correctly?
86,
90
6-1-2 Test Operation Procedure
End
Apply
power
Check reset input
operation
Use Monitor Unit
for of
fline test
Use host computer
for online test
Perform test run of system
Line voltage and power supply terminal connection
Check I/O DC power supply voltage
Check that ID Controller and R/W Heads 1 and 2, POWER indicators are lit
Check stop when reset is input (ST
OP indicator lights)
Check total system operation using actual commands
Check communications between R/W Head and CD while disconnected
from host computer (this can also be done while connected) (see
6-1-3
Using Monitor Unit for Offline T
est
)
Check communications using test commands between host computer and
ID Controller
To Next Page
