5-2SectionID Controller Installation
79

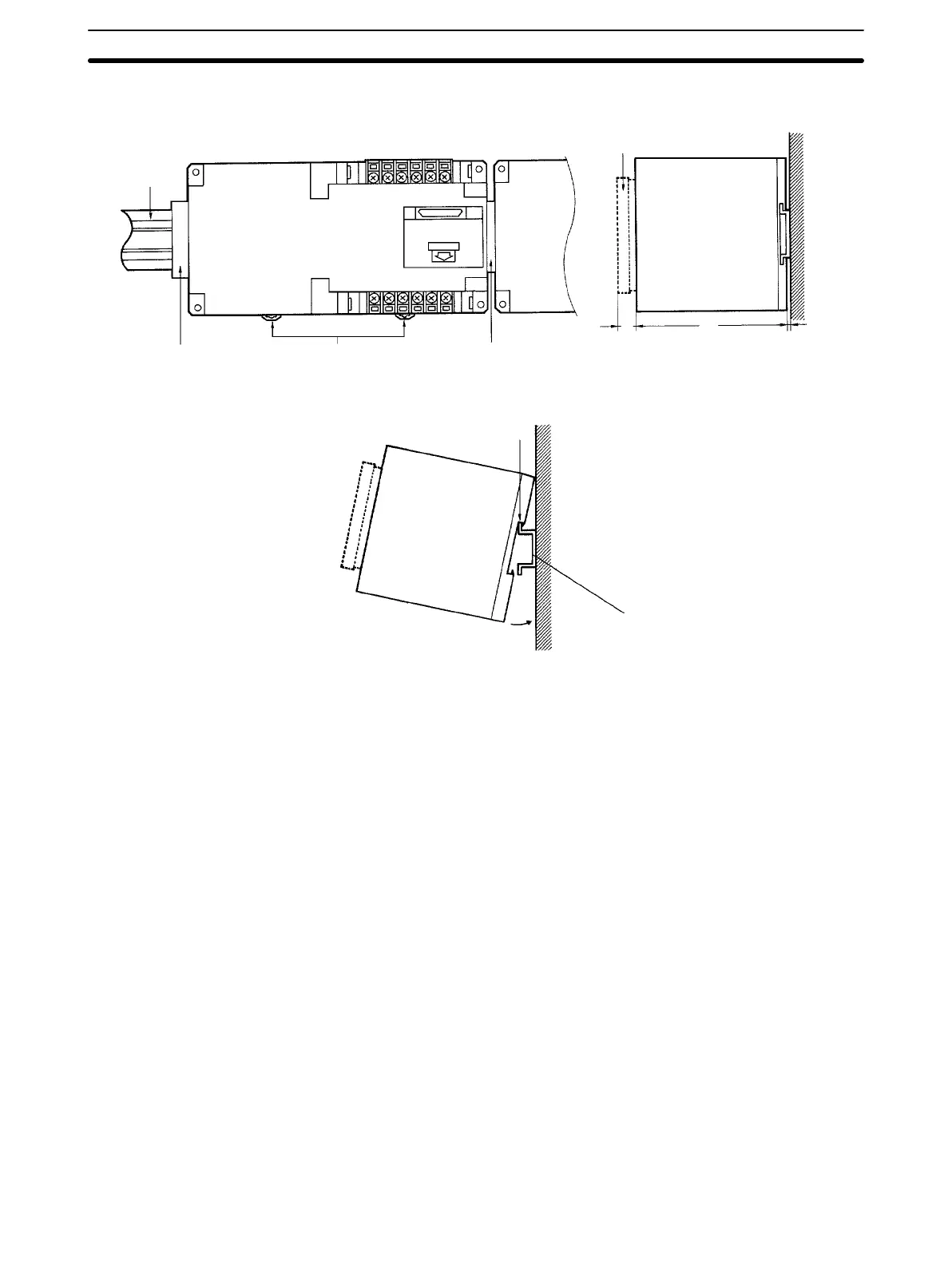

5-2-2 DIN Rail Attachment
DIN
rail
End plate
Attachment hooks
Spacer
When Monitor Unit is mounted.
(Note)
10015
Note: T
ake DIN rail height into consideration.
DIN Rail
PFP-100N2 (made by OMRON Co.)
A
B
1, 2, 3...
1. When
attaching the ID Controller to a DIN rail, first attach at A, then push in
direction B to mount the ID Controller.
2. To
remove the ID Controller from the DIN rail, pull the attachment hooks for
-
ward.
