RFID System
User’s Manual
SECTION 6
Troubleshooting
SECTION 6
Troubleshooting
247

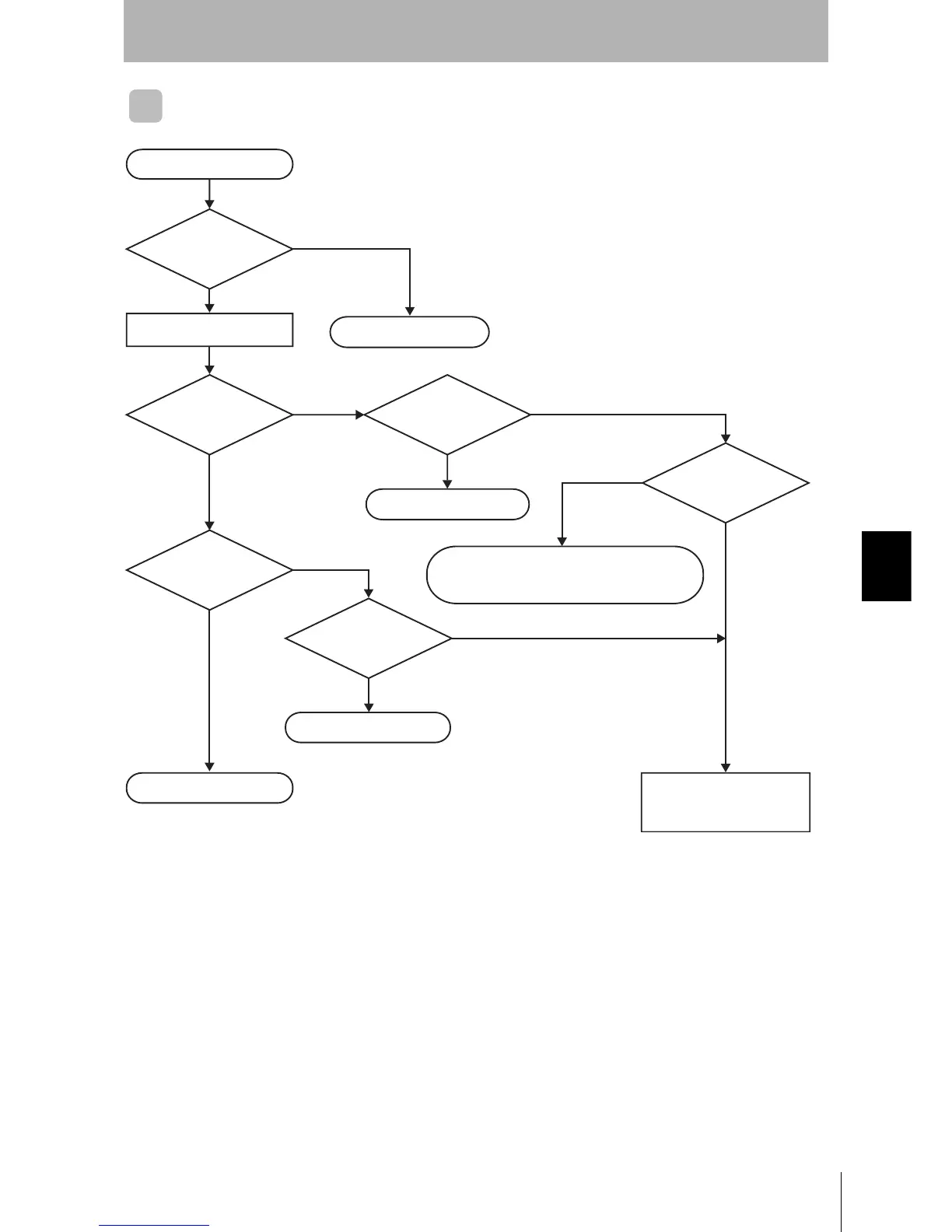

System Connections Check Flowchart
RUN/RST indicator
Supply the rated voltage.
COMM indicator
Start
Are the
connector and cable
connections
OK?
YES
NO
Turn ON the power.
RUN/RST indicator
Not lit
Lit
Lit green
Lit red
OK
Connect them correctly.
Is the rated
voltage supplied?
YES
NO
Not lit
Lit red
NO
Is the RESET
input ON?
YES
Turn OFF the RESET
input.
Replace the Controller.
Turn ON the RESET input. Turn ON
the power again. Set the communications
conditions again with the SP command.
