RFID System
User’s Manual
SECTION 1
System Configuration
SECTION 1
Product Overview
1:N Connections with RS-422/RS-485 Connection to Host
Device

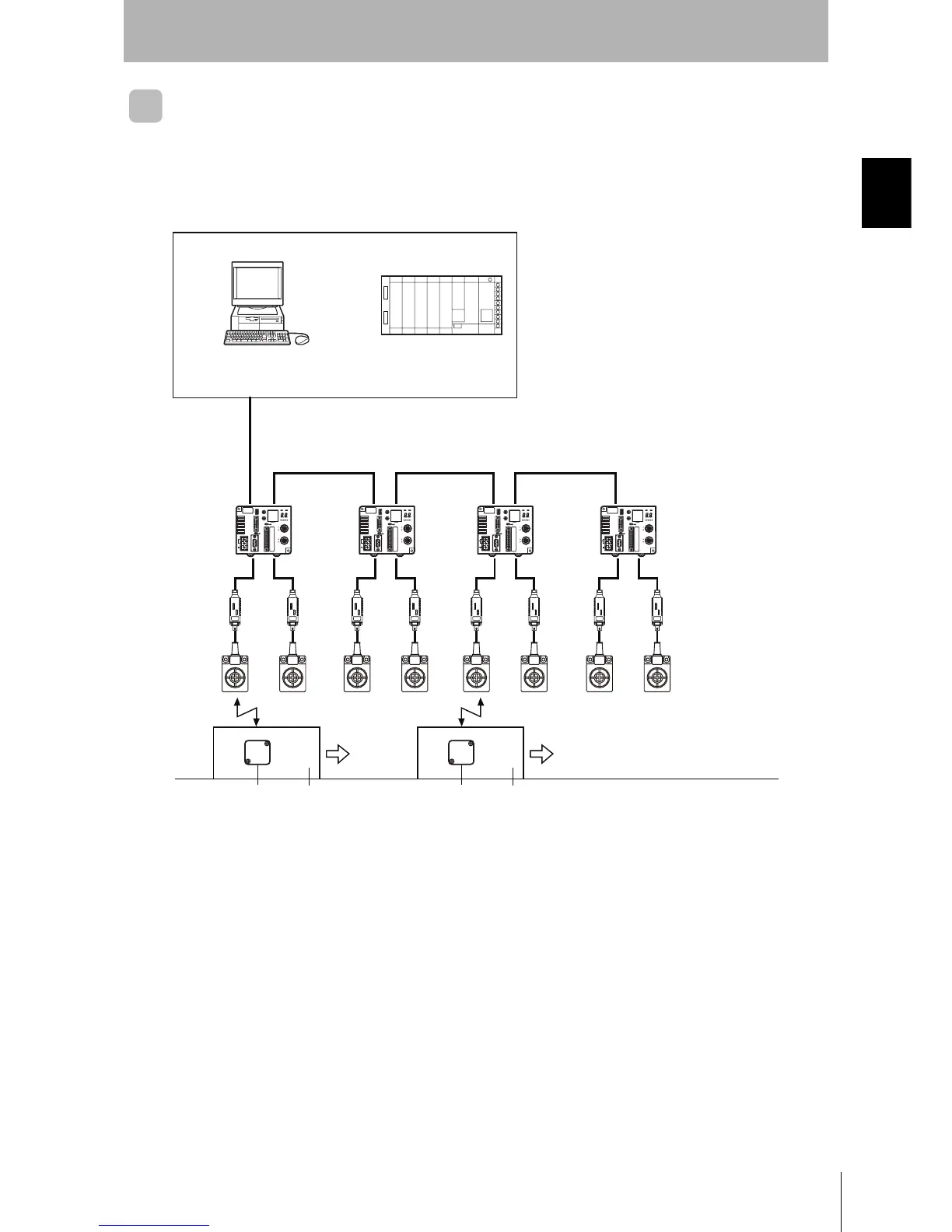

The host device and other ID Controllers can all be connected via RS-422 or RS-485 interfaces.
• Using an Antenna Other than the V680-H01
ID Controller
V680-CA5D01-V2
V680-CA5D02-V2
RS-422/RS-485
Amplifiers
V680-HA63 A/B
Tag
Pallet or other object
RS-422/RS-485 RS-422/RS-485 RS-422/RS-485
Tag
Pallet or other object
Programmable Controller
Personal computer
(PLC)
Antennas
V680-HS52
V680-HS63
V680-HS65
V680-HS51
