 To reduce the influence of radiated noise, use a ferrite core.
Use the following procedure.
1. Wire the power supply and ground lines as normal.

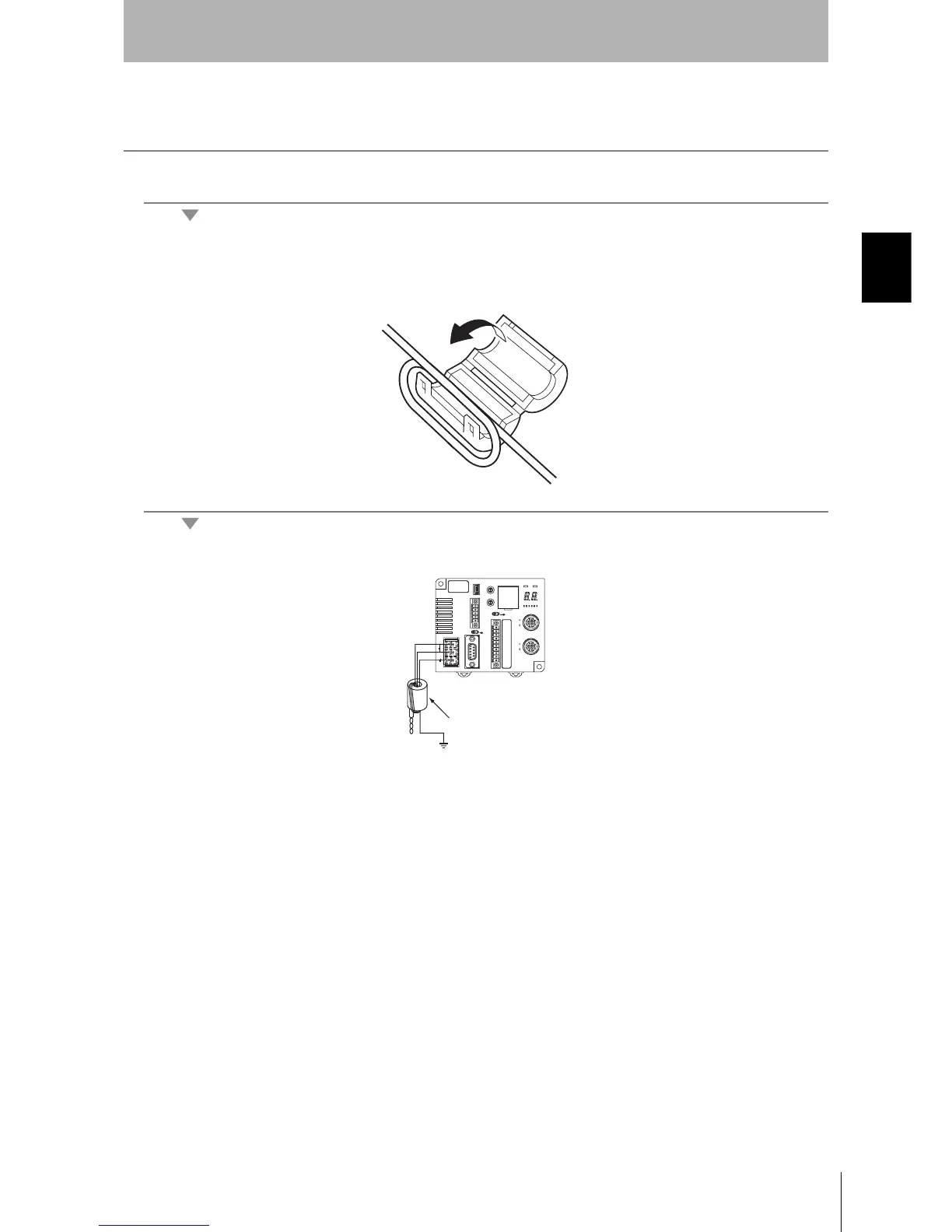

2. Wrap the power supply lines and ground line together around the ferrite core. Loop them around the
ferrite core once so that the ferrite core does not move. The ferrite core should be within 10 cm of the
ID Controller.
3. Close the ferrite core until you hear it click into place.
Ferrite core

Omron V680-CA5D01-V2 Specifications

General

Model	V680-CA5D01-V2
Series	V680
Type	RFID Controller
Input Voltage	24 VDC
Frequency	13.56 MHz
Power Supply Voltage	24 VDC ±10%
Communication Ports	RS-232C
Communication Interface	RS-232C
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 65°C
