RFID System
User’s Manual
SECTION 2
Connection and Wiring
SECTION 2
Installation, Connections, and Wiring
Antenna Port
Connecting and Removing the Connector

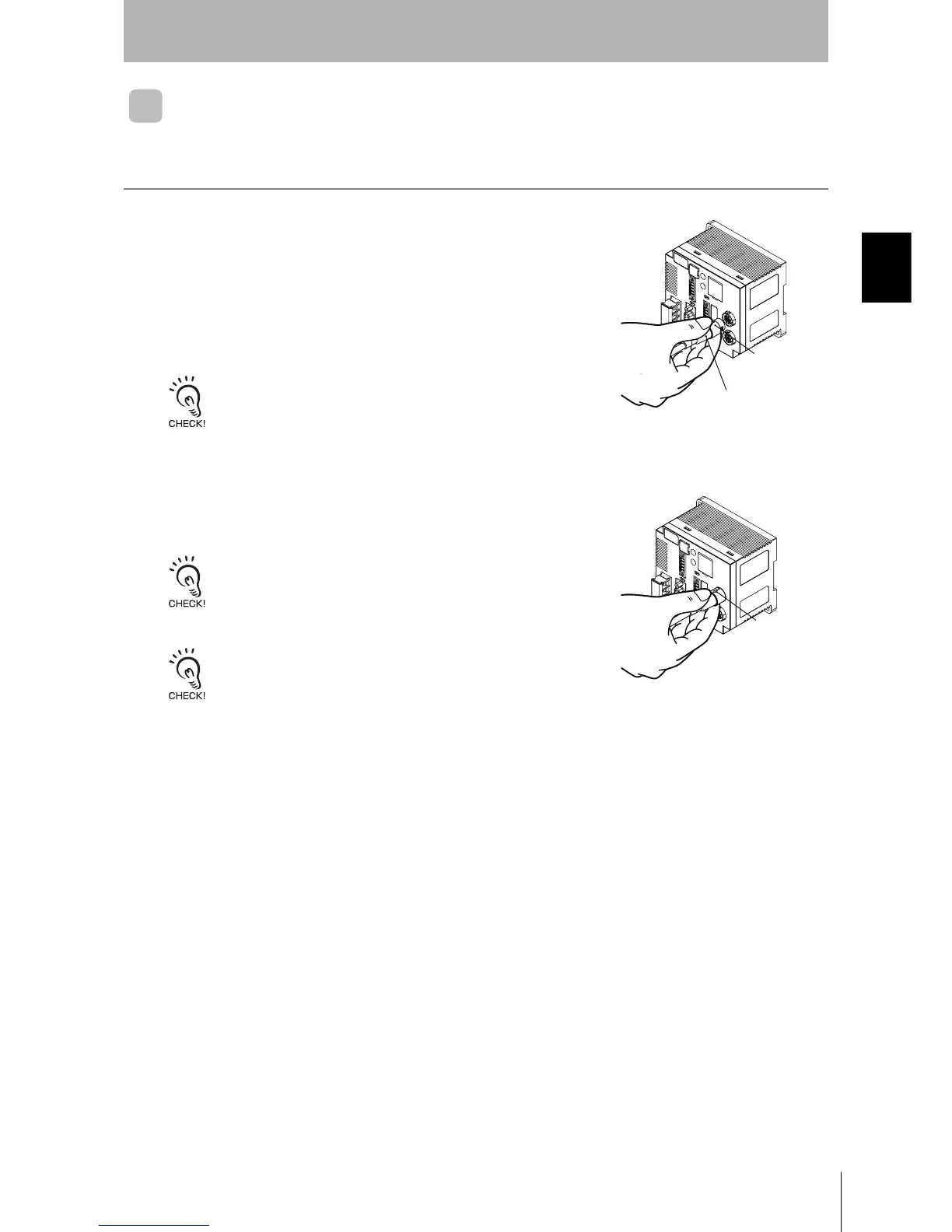

1. Hold the base of the connector, and insert the connector while
matching the white mark on the ID Controller with the white mark on
the connector.
2. Press the connector in vertically until it locks.
Be sure to hold onto the base of the connector. The connector will not lock if
the ring is held.
3. To remove the connector, hold onto the ring and pull the connector
straight out.
The cable cannot be removed if the base of the connector is held. Never
pull excessively on the cable. Doing so will cause broken wires and dam-
age.
Do not remove or connect the connector when the power is turned ON.
Doing so may cause malfunctions.
Ring
Base of connector
Ring
