64
SECTION 3
Switch Settings
RFID System
User’s Manual
SECTION 3
Preparations for Communications

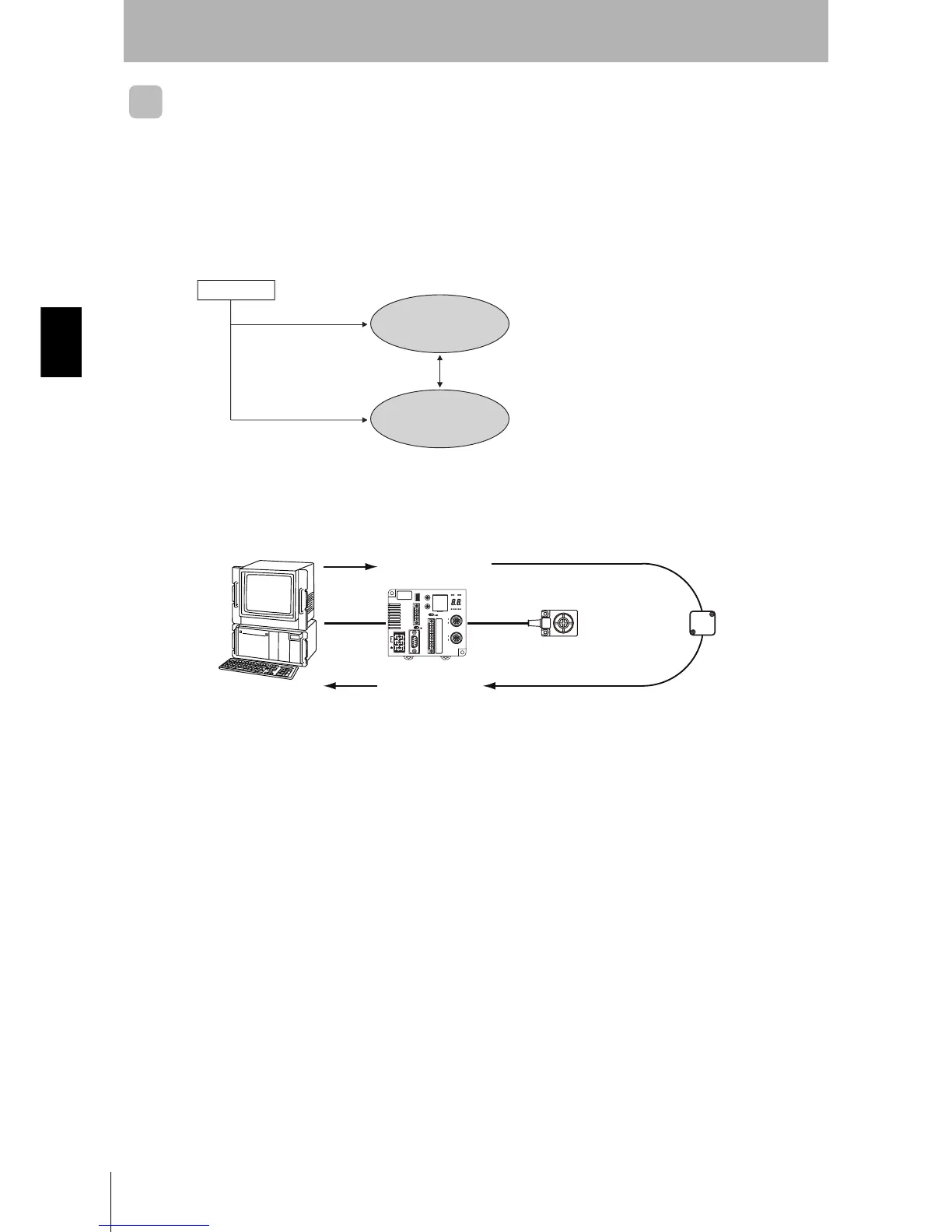

Operation Modes
The V680-CA5D01/02 ID Controller has two operation modes: Run Mode and Maintenance Mode.
Run Mode
There are two Run Modes: Command Execution Mode and Self-execution Mode.
The Run Mode at startup (when the power is turned ON) can be selected using pin 9 on SW4. The
mode can also be changed by executing an OPERATION MODE CHANGE command (MO) from the
host device.
Command Execution Mode
In this mode, commands are executed from the host device to perform operations and the results are
returned to the host device as responses.
Command
Execution Mode
Self-execution
Mode
OPERATION MODE CHANGE command (MO)
Power ON
SW4, pin 9 OFF
SW4, pin 9 ON
Host device
Command
Response
ID Controller
Antenna
Ta g
To Next Page
