Omron V680-CA5D01-V2

71
RFID System
User’s Manual
SECTION 3
Switch Settings
SECTION 3
Preparations for Communications

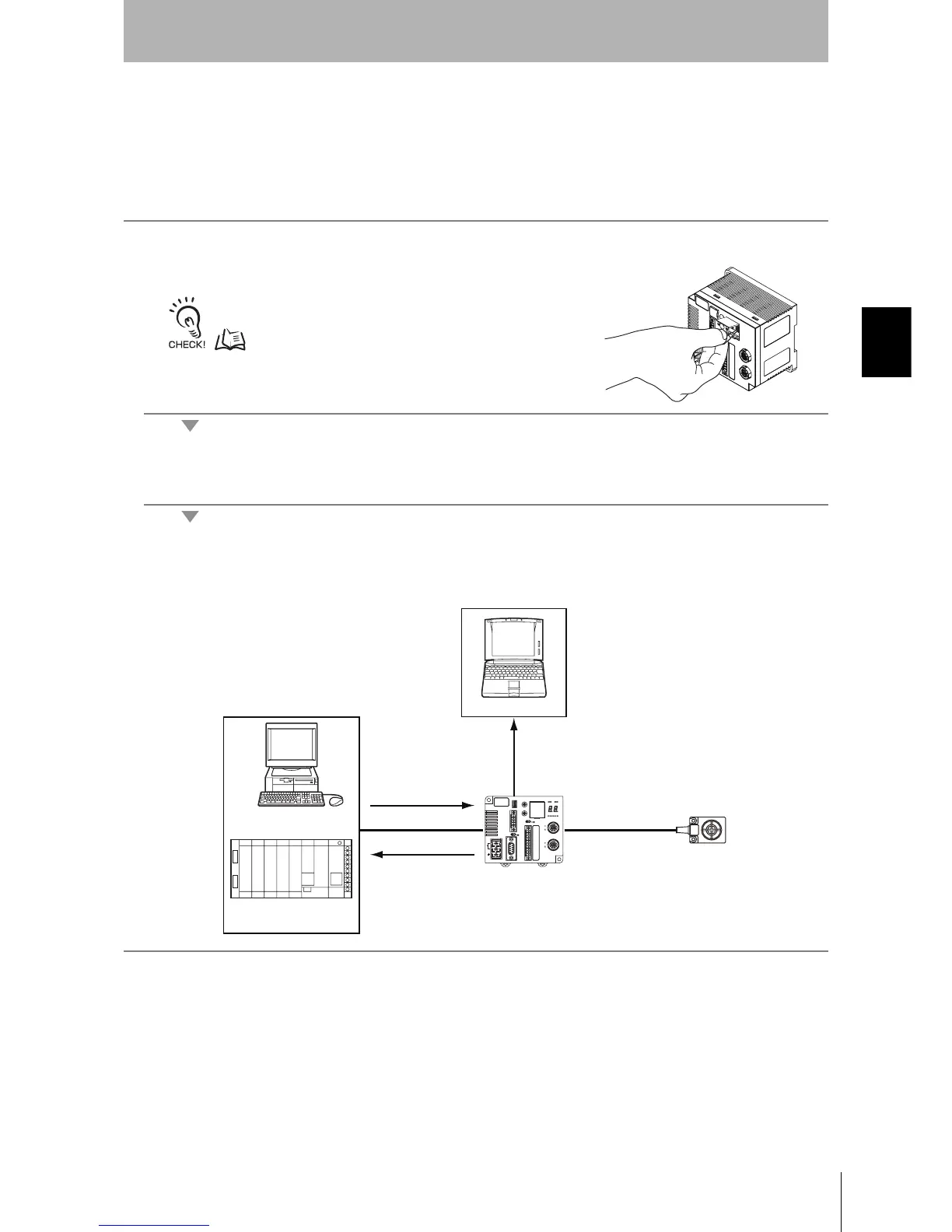

 Host Communications Monitor Mode (Protocol Analyzer)
Commands sent by serial communications (RS-232C, RS-422, or RS-485) from the host device and
execution result responses can be output to the monitor port (USB) to enable application as a host
communications line protocol analyzer.
1. Change to Monitor Mode.
SW4, pin 1: ON, SW4, pin 2: ON, SW4, pin 3: ON, SW5: ON
The mode can also be changed by executing an OPERATION MODE
CHANGE command (MO) from the host device while in Run Mode.
p. 151
2. Connect a monitor device (e.g., a personal computer) to the ID Controller via the USB port.
3. Commands and responses from communications with the host device will be output to the monitor
device.
Command
RDSTH100100010*CR
Response
RD72*CR
Antenna
Monitor
RDSTH100100010*CR
RD72*CR
Personal computer
Host device
Monitor
Programmable Controller
(PLC)
