Specifications of Accessories Chapter 9-2
9-2-5 Digital Operator
JVOP-140/JVOP-146
The Digital Operator (JVOP-140/JVOP-146) is used to control the Inverter
from a distance. There are two models available. The JVOP-140 is equipped
with an adjuster and the JVOP-146 is not.
Always use the JVOP140 together with a Digital Operator Case (3G3IV-
PEZZ08386A). Without the Case, the Digital Operator’s connection cable
cannot be wired. Using the Case also enables mounting to a control panel.
Note When a Digital Operator is connected, the Operator on the Inverter cannot be
used to control operation (i.e., only display functions will work).

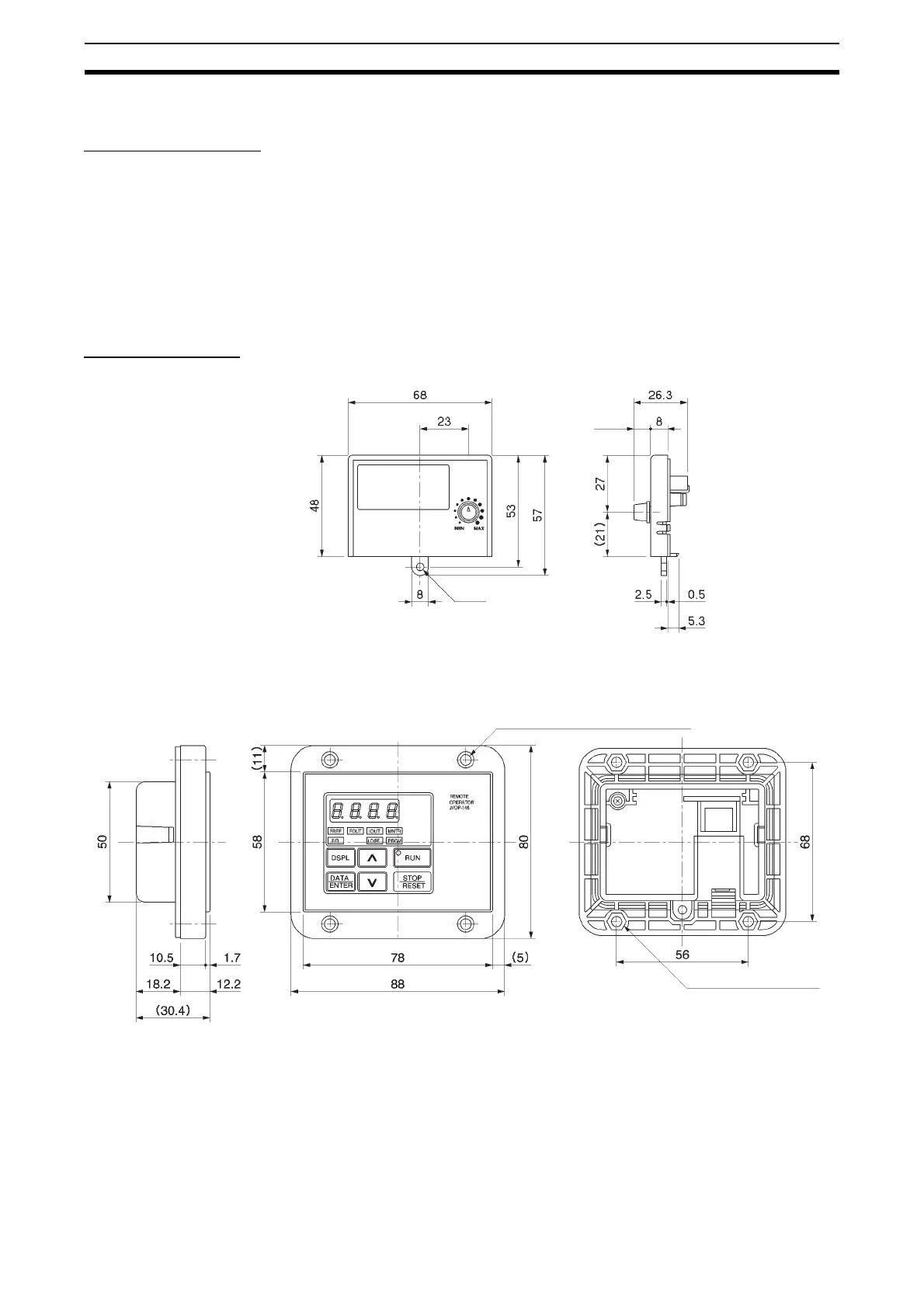

Dimensions (mm)
JVOP-140
(with Adjuster)
JVOP-146
(without Adjuster)
8 max.
3.6 dia
Four, 4.4-dia. mounting holes
Four depressions for
M4 bolts (Depth: 3.5)
