Installation Chapter 2-1
2-1 Installation

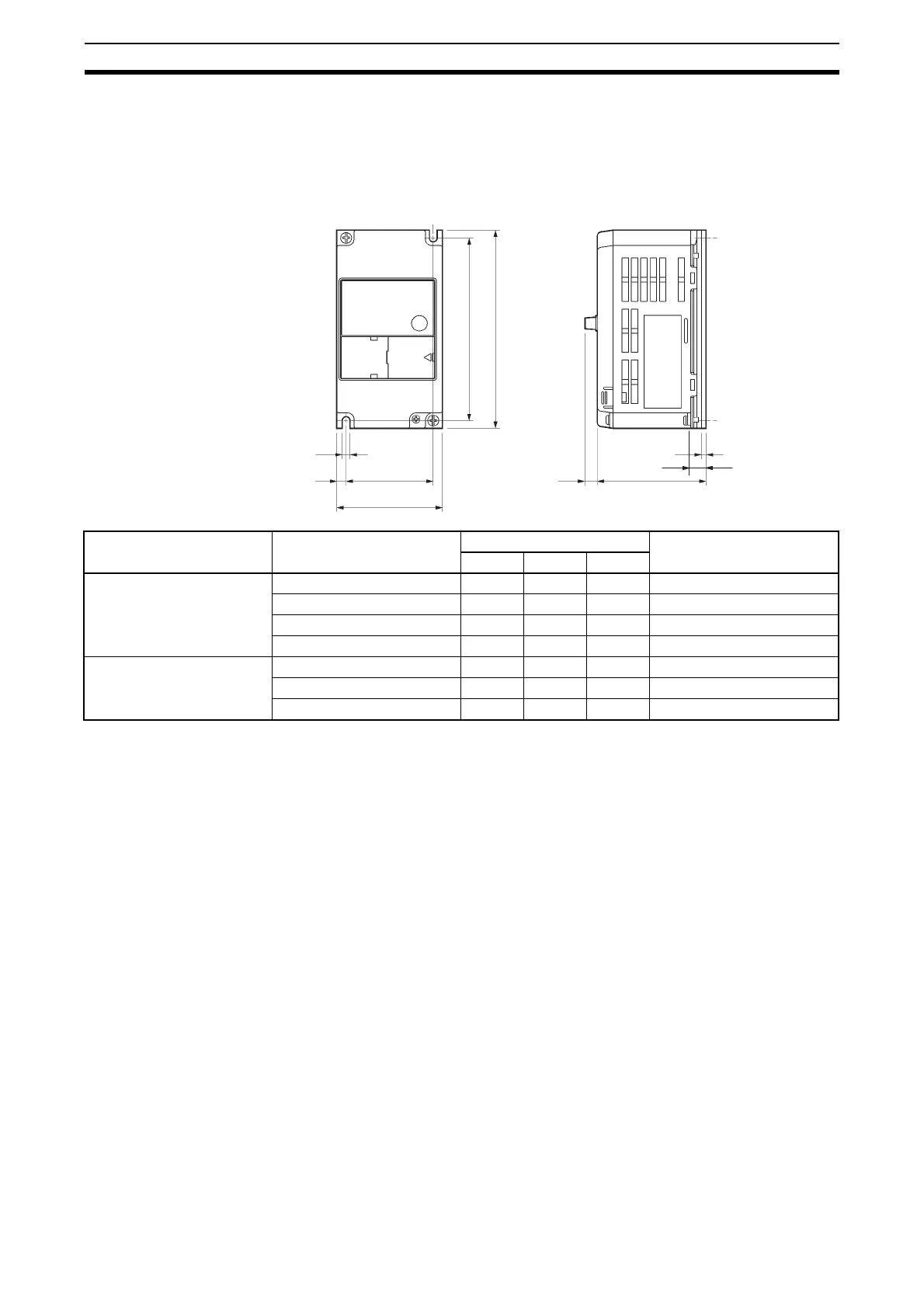

2-1-1 Dimensions
CIMR-J7AZ20P1 to CIMR-J7AZ20P7 (0.1 to 0.75 kW) 3-phase 200-V AC Input
CIMR-J7AZB0P1 to CIMR-J7AZB0P4 (0.1 to 0.4 kW) Single-phase 200-V AC Input
D
8.5
5
656
68
118 128
D1
t
Rated voltage Model CIMR-J7AZ- Dimensions (mm) Weight (kg)
DD1 t
3-phase 200 V AC 20P1 70 10 3 Approx. 0.5
20P2 70103 Approx. 0.5
20P4 102 42 5 Approx. 0.8
20P7 122 62 5 Approx. 0.9
Single-phase 200 V AC B0P1 70 10 3 Approx. 0.5
B0P2 70 10 3 Approx. 0.5
B0P4 112 42 5 Approx. 0.9
