Installation Chapter 2-1

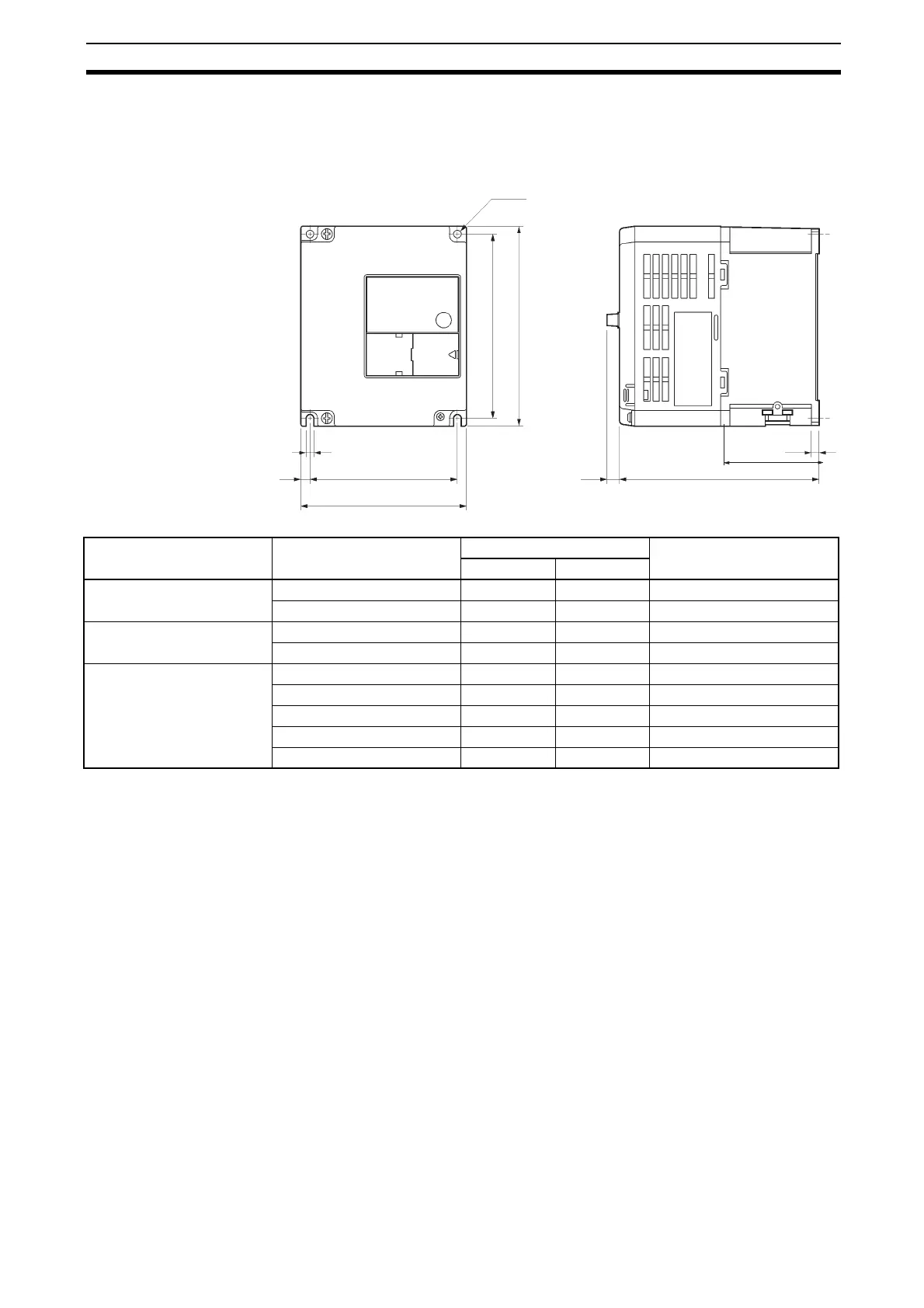

CIMR-J7AZ21P5 to CIMR-J7AZ22P2 (1.5 to 2.2 kW) 3-phase 200-V AC Input
CIMR-J7AZB0P7 to CIMR-J7AZB1P5 (0.75 to 1.5 kW) Single-phase 200-V AC Input
CIMR-J7AZ40P2 to CIMR-J7AZ42P2 (0.2 to 2.2 kW) 3-phase 400-V AC Input
Rated voltage Model CIMR-J7AZ- Dimensions (mm) Weight (kg)
DD1
3-phase 200 V AC 21P5 129 64 Approx. 1.3
22P5 154 64 Approx. 1.5
Single-phase 200 V AC B0P7 129 64 Approx. 1.5
B1P5 154 64 Approx. 1.5
3-phase 400 V AC 40P2 81 16 Approx. 1.0
40P4 99 34 Approx. 1.1
40P7 129 64 Approx. 1.5
41P5 154 64 Approx. 1.5
42P2 154 64 Approx. 1.5
Two, 5-dia. holes
118 128
5
6 96
108
8.5
D
D1
5
