143
Option Specifications Chapter 9-3

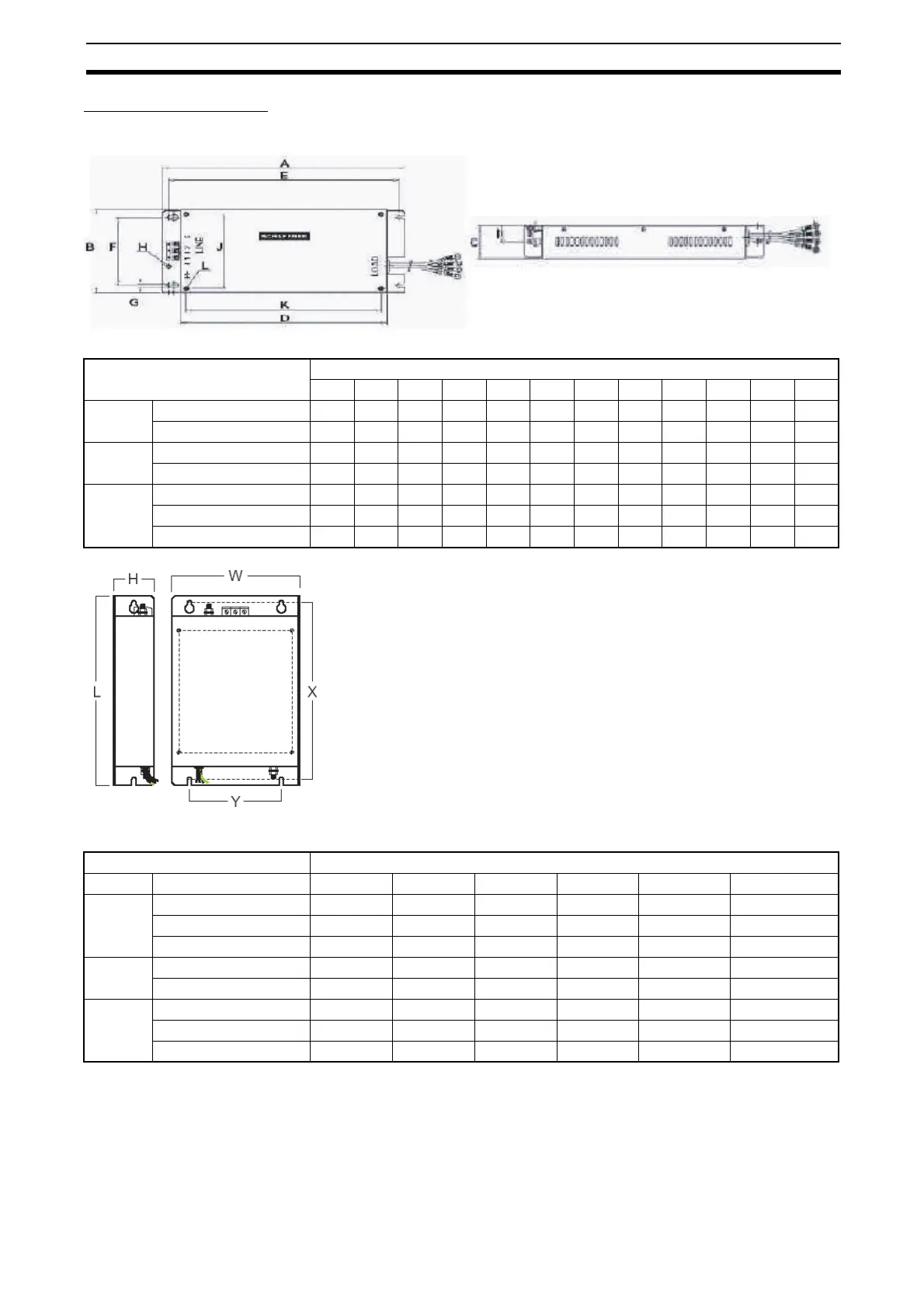

External Dimensions
Filters
Schaffner model Dimensions
ABCDEFGH I JKL
3 x 200 V 3G3JV-PFI2010-SE 194 82 50 160 181 62 5.3 M5 25 56 118 M14
3G3JV-PFI2020-SE 169 111 50 135 156 91 5.5 M5 25 96 118 M4
1 x 200 V 3G3JV-PFI1010-SE 169 71 45 135 156 51 5.3 M5 22 56 118 M4
3G3JV-PFI1020-SE 169 111 50 135 156 91 5.3 M5 25 96 118 M4
3 x 400 V 3G3JV-PFI3005-SE 169 111 50 135 156 91 5.3 M5 22 96 118 M4
3G3JV-PFI3010-SE 169 111 50 135 61 120 5 M5 28 128 118 M4
3G3JV-PFI3020-SE 174 144 50 135 61 120 5 M5 28 128 118 M4
Rasmi model Dimensions
W H L X Y Inverter fixing
3 x 200 V 3G3JV-PFI2010-E 82 50 194 181 62 M5
3G3-JV-PF2020-E 111 50 169 156 91 M5
3G3JV-PFI2030-E 144 50 174 161 120 M5
1 x 200 V 3G3-JV-PFI1010-E 71 45 169 156 51 M5
3G3-JVPFI1020-E 111 50 169 156 91 M5
3 x 400 V 3G3JV-PFI3005-E 111 50 169 156 91 M5
3G3JV-PFI3010-E 111 50 169 156 91 M5
3G3JV-PFI3020-E 144 50 174 161 120 M5
Output
flexes
Drive mounts
