Section 1
Part Names and Functions

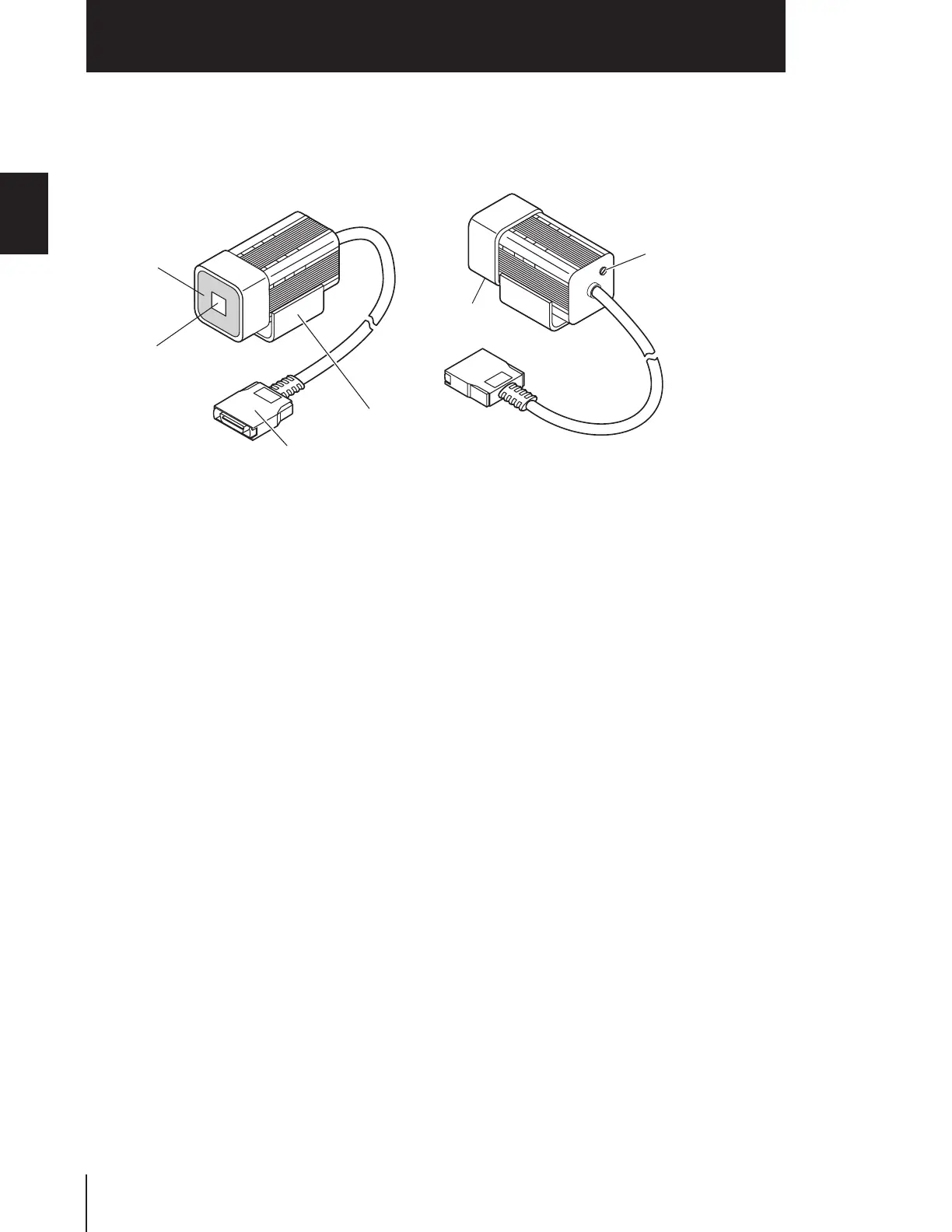

■ Sensor Head
(1) Lighting part
This section emits light.
(2) Receiver part
This section captures the image.
(3) Connector
This connector is connected to the Amplifier Unit.
(4) Sensor Head mounting fixture
This fixture is for mounting the Sensor Head.
This fixture can be mounted on all of the four mounting surfaces.
(5) Focus adjustment control
This control is used for adjusting the focus of the image.
(6) Ventilation film
This film prevents the front panel from condensation.
(2) Receiver part
(3) Connector
(4) Sensor Head mounting fixture
(5) Focus adjustment
control
(1) Lighting part
(6) Ventilation film
