Omron ZX Series Manual

15
ZX SERIESZX SERIES

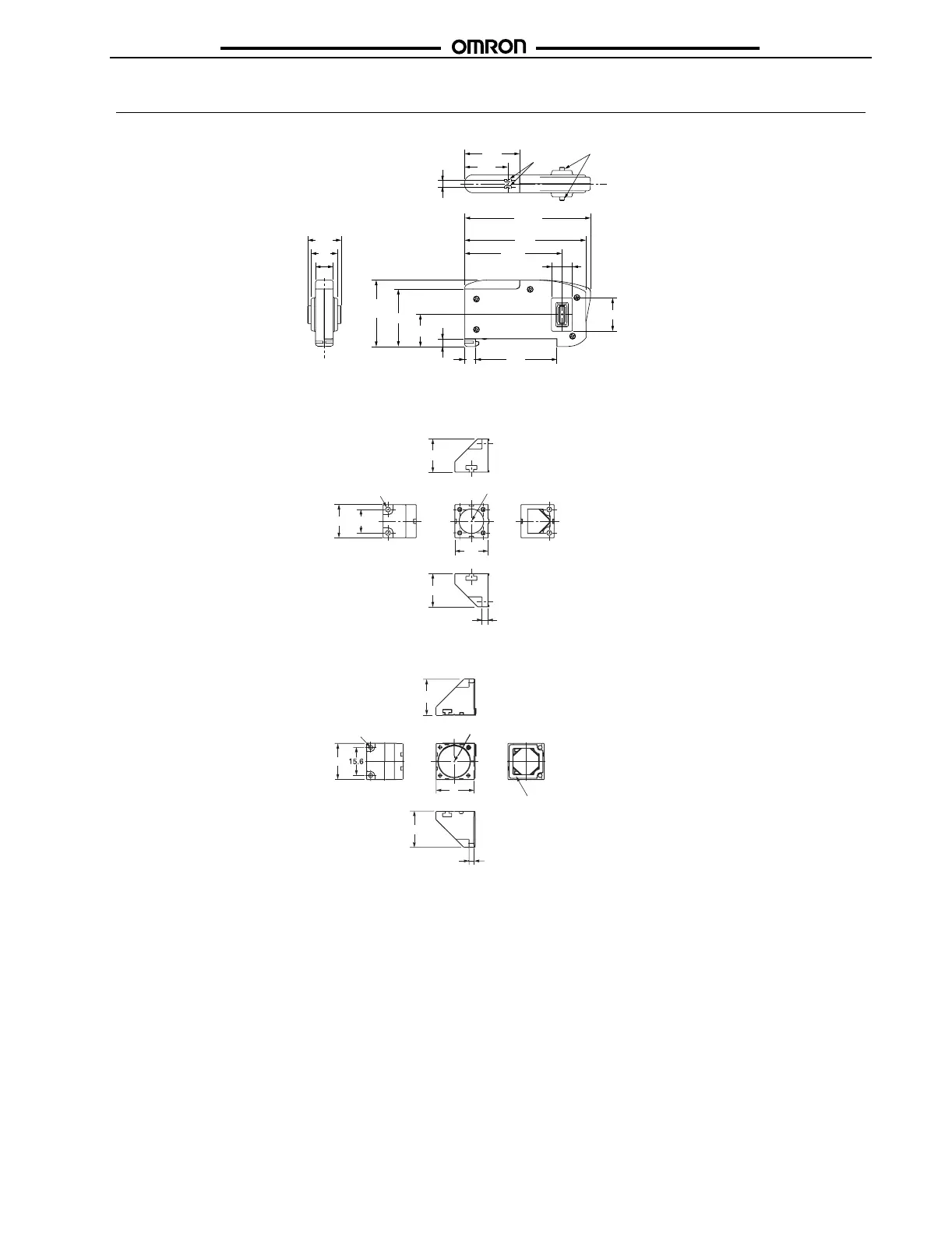

Accessories (Order Separately)
Unit: mm (inch)
21
2.
8
2
0
2
0
2
0
24.9
19.5
3
9.5
15
44.05
30
(1.18)
15.1
12
8
26
14.4
3.4
36.7
5
54.9
57
(2.24)
15
15
15
15
2.7
10.6
■ Calculating Unit
ZX-CAL
Operation
indicators
Connectors
■ Side-view Attachments
ZX-XF12
Light axis center
Two, 2.2 dia.
ZX-XF22
Light axis center
Two, 2.2 dia.
Seal

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
