Error Messages

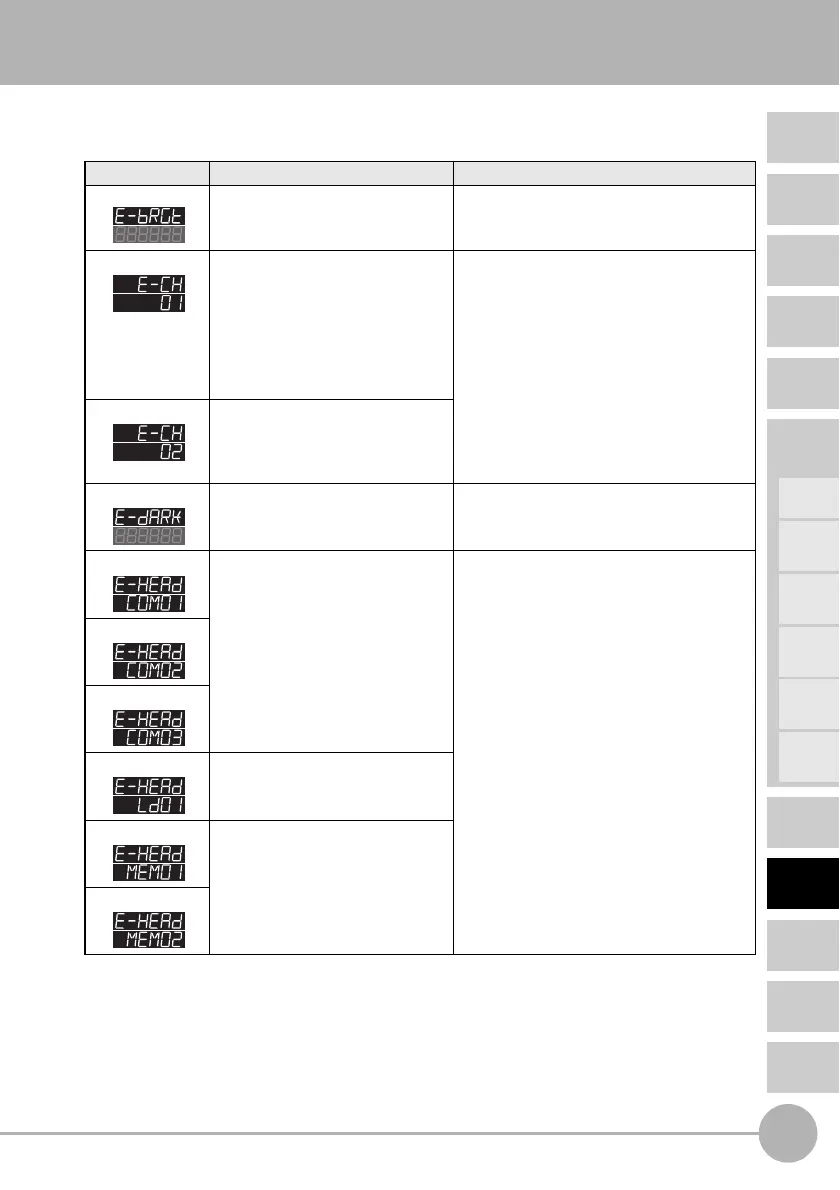

This section outlines the error messages displayed on the Amplifier Unit and the
countermeasures for those messages.
Display Error Countermeasure
Error-bright Saturated light amount intensity,
measurement error.
• Install so that the distance between the
Sensor Head and the workpiece is
within the measuring range.
Error-channel • There is only one Amplifier
Unit even though mutual
interference prevention is set
to ON.
• There is only one Amplifier
Unit even though two-Sensor
operation is set to ON.
• If two or more Amplifier Units have
been installed, turn OFF the power
supply and check that the Amplifier
Units and Calculating Units are
connected correctly.
• If only one Amplifier Unit is being used,
connect another Amplifier Unit
temporarily and turn OFF mutual
interference prevention and two-
Sensor operation, or initialize the
setting data.
Error-channel Two Amplifier Unit
communications error.
Error-dark Insufficient received light
intensity, measurement error.
• Install so that the distance between the
Sensor Head and the workpiece is
within the measuring range.
Error-head The Sensor Head is
disconnected. Or, a sensor
communications error has
occurred.
• Turn OFF the power supply, check the
Sensor Head connection, and then
turn ON the power supply again.
• If the above countermeasure does not
solve the problem, the Sensor Head is
malfunctioning. Replace the Sensor
Head.
Error-head
Error-head
Error-head Sensor Head laser error.
Error-head The Sensor Head internal
memory is in error.
Error-head
