Omron ZX2 Series User Manual

Positioning
63
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

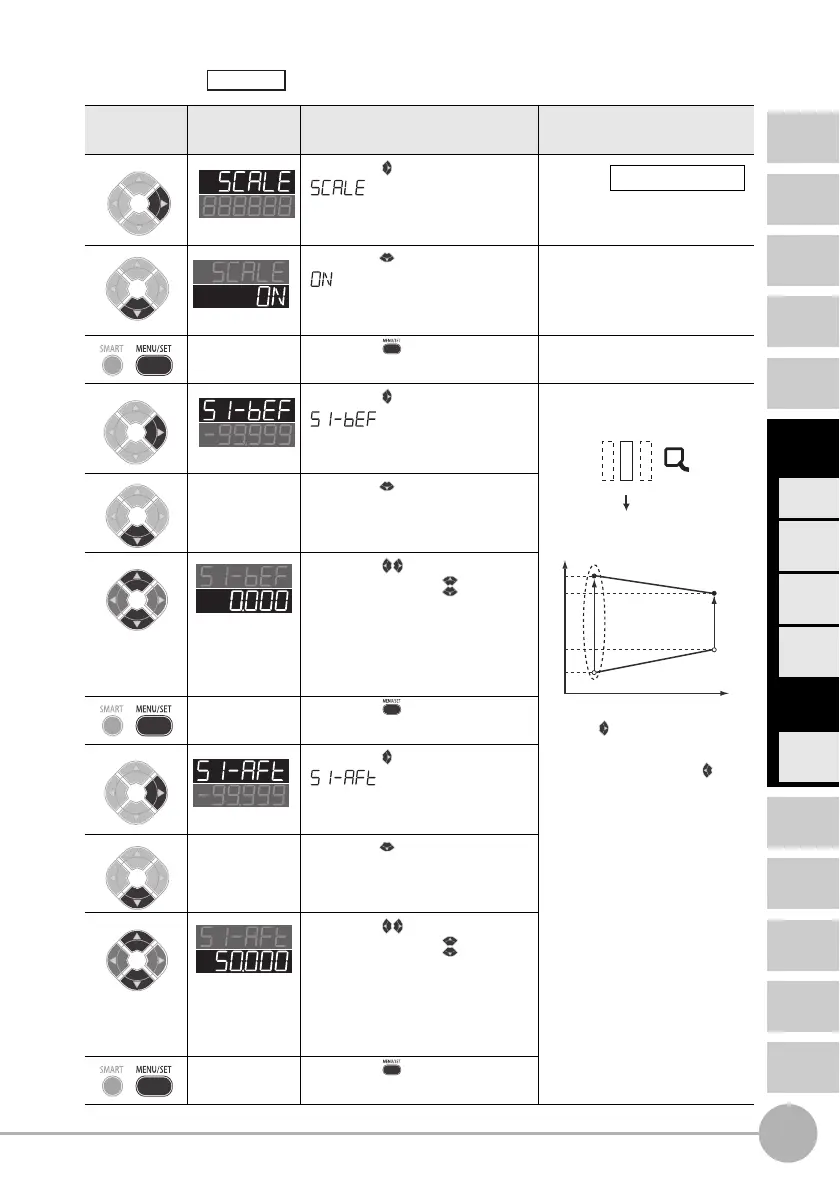

5 Scaling
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Press the button to display
.
Press the button to enable
setting of scaling.
Press the button to display
.
<To display the actual sensing
distance>
* If the button is pressed
when the cursor is at the
right-most digit or the
button is pressed when the
cursor is at the left-most
digit, the setting will be
canceled.
Press the button to enable
setting of S1-Before.
[Numeric
value before
change]
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the measured value before
S1 is changed.
Press the button to apply
the numeric value of S1-Before.
Press the button to display
.
Press the button to enable
setting of S1-After.
[Numeric
value after
change]
Set any value.
Press the button to move
the digit, press the button to
change the numeric value, and
set the measured value after S1
is changed.
Press the button to apply
the numeric value of S1-After.
Optional
Set this item to change the display scale when you want to display
a digital value on the Amplifier Unit different from the actual
measured value. (e.g. to display the actual sensing distance)
Press to display.
Default value: OFF
Press to display.
Press to display.
-8 0 8
58 50 42
S2S1
Before
After
8
50
42
0
Press to set.
[Change numeric value]
[Move digit]
Press to display.
Press to set.
[Change numeric value]
[Move digit]
