Omron ZX2 Series

Wiring Diagram
31
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

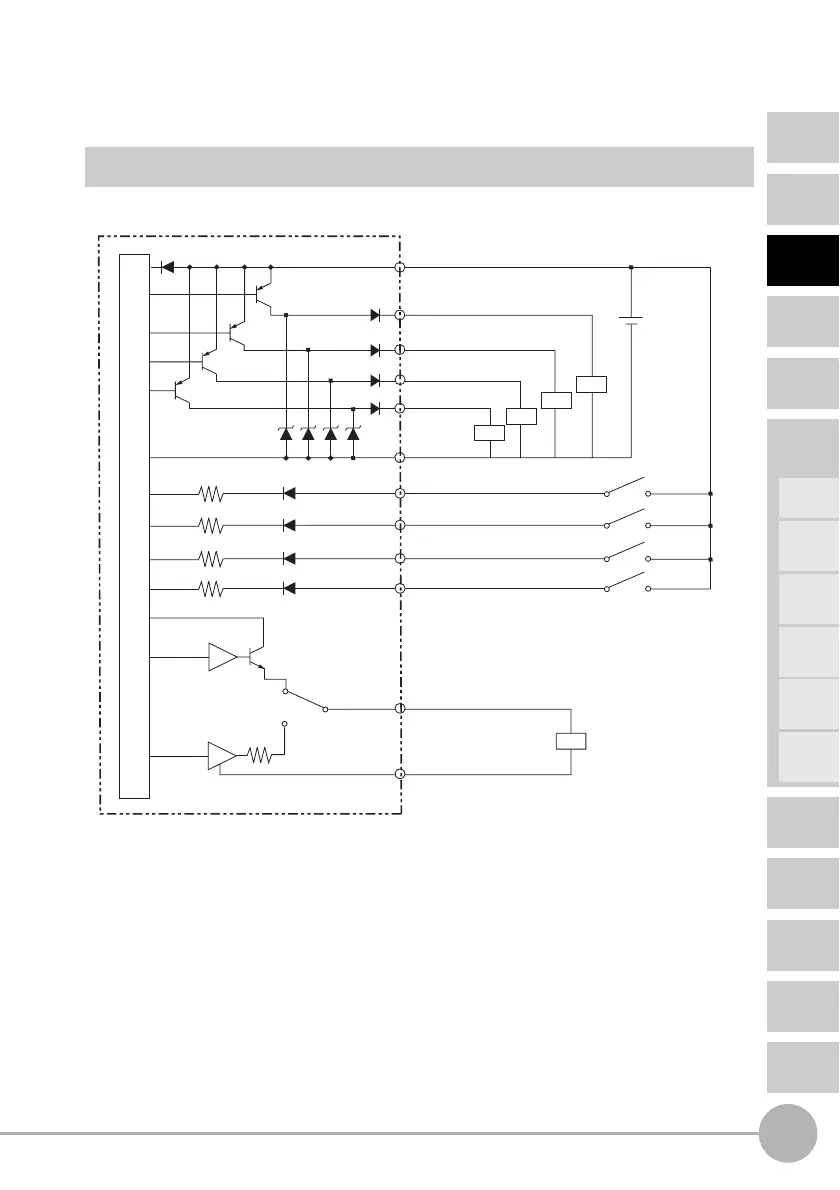

PNP Amplifier Unit
100 Ω
Brown 10 to 30 VDC
10 to 30 VDC
Load
Load
Load
Load
Load
Blue GND (0 V)
Pink LD-OFF input
Purple Timing input/BANK input 0
Orange Zero reset input
Red Reset input/BANK input 1
Current output
4 to 20 mA
Voltage output
± 5 V
1 to 5 V
Current/voltage
output switch
Black
Shield
Analog output
Analog GND
White HIGH judgement output
Green PASS judgement output
Gray LOW judgement output
Yellow Error output
Internal circuit
Current output: 300 Ω or lower
Voltage output: 10 kΩ or highe
r
