Specifications and Dimensions
118
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

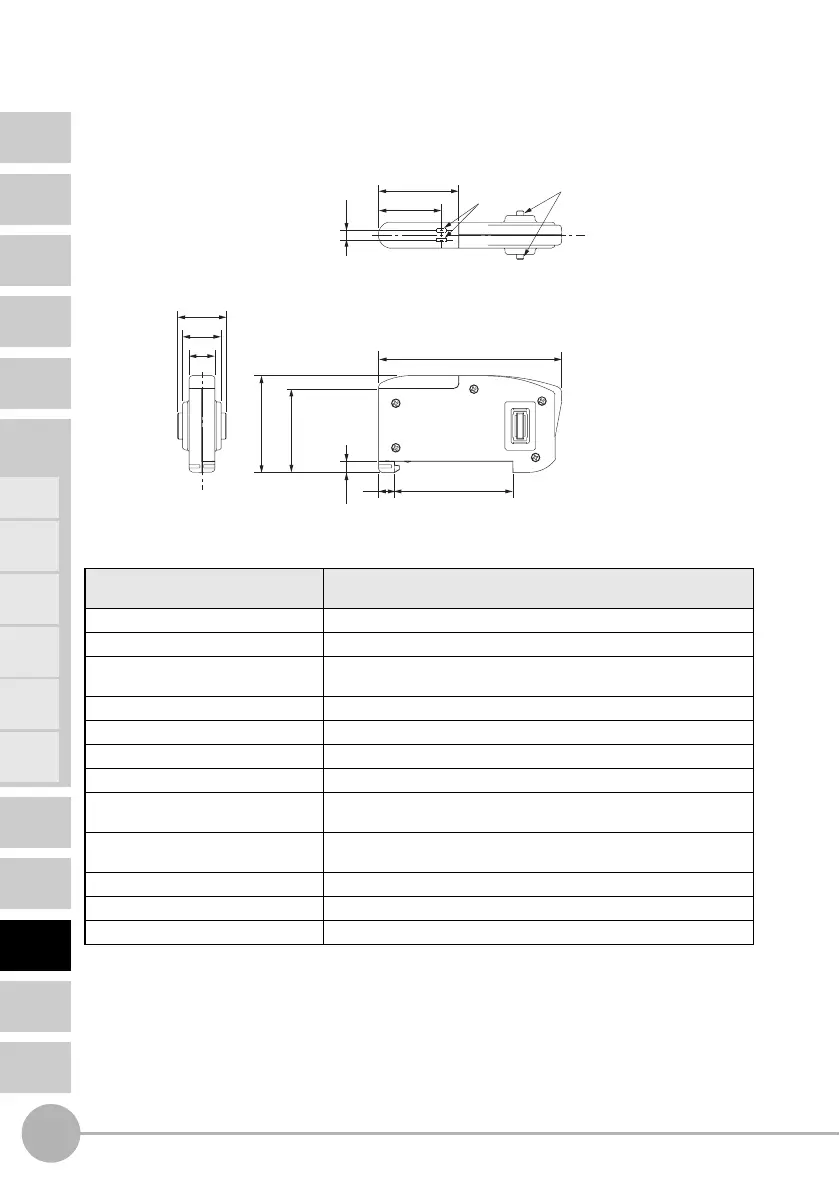

Calculating Unit
ZX2-CAL
Model
Item
ZX2-CAL
Applicable Amplifier Units ZX2-LDA11/ZX2-LDA41
Current consumption 12 mA max. (supplied from the Smart Sensor Amplifier Unit)
Ambient temperature Operating: 0 to +50°C, Storage: -15 to +70°C
(with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Connection method Connector
Dielectic strength 1,000 VAC, 50/60 Hz for 1 min.
Insulation resistance 100 MΩ min. (at 500 VDC)
Vibration resistance (destruction) 10 to 150 Hz, 0.7 mm double amplitude, 80 min. each in X, Y, and
Z directions
Shock resistance (destruction) 300 m/s
2
3 times each in six directions
(up/down, left/right, forward/backward)
Materials Case: PBT (polybutylene terephthalate), Display: Acrylic resin
Weight (packed state) Approx. 50 g
Accessories Instruction sheet
24.9
19.5
3
15.1
12
8
26
3.4
36.7
5
57
Coupled
indicators
Coupling connectors
30
(Unit: mm)
