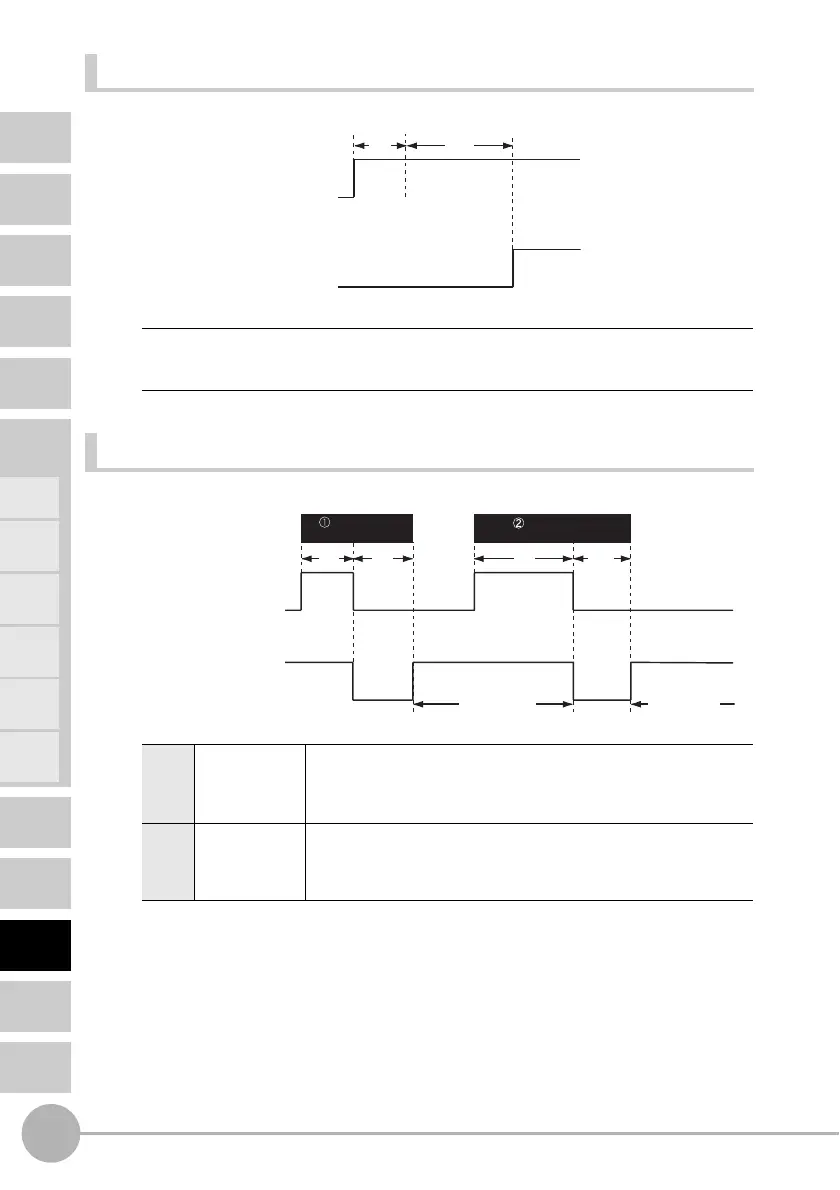

Timing Charts
120
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness
Bank input
Example)Switching from bank 2 to bank 1
* Bank input is executed by the ON/OFF combinations of BANK input 0 and BANK input 1.
Zero reset input
• When the zero reset memory setting is OFF
If bank input is input for 4 ms or more, the bank is confirmed, the bank is switched within 20 ms,
and measurement is resumed.
Acquire the measurement results after the preset response time has elapsed.
1
Zero reset
execution
Turn OFF after 4 ms to 1 s zero reset input turns ON.
The zero reset is executed, and measurement is resumed within 5 ms.
Acquire the measurement results after the preset response time has
elapsed.
2
Zero reset
cancellation
Turn OFF after zero reset input turns ON for 3 s or more.
The zero reset is canceled, and measurement is resumed within 5 ms.
Acquire the measurement results after the preset response time has
elapsed.
Within
20 ms
4 ms
Bank input*
Bank 1
Bank 1
Bank
Bank 2
Bank 2
or more
OFF
ON
4 ms
to 1 s
Within
5 ms
3 s
Within
5 ms
Zero reset
execution
Zero reset
cancellation
Zero reset input
Measurement
Zero reset
Output
or more
Result after
zero reset
cancellation
Result after
zero reset
execution
