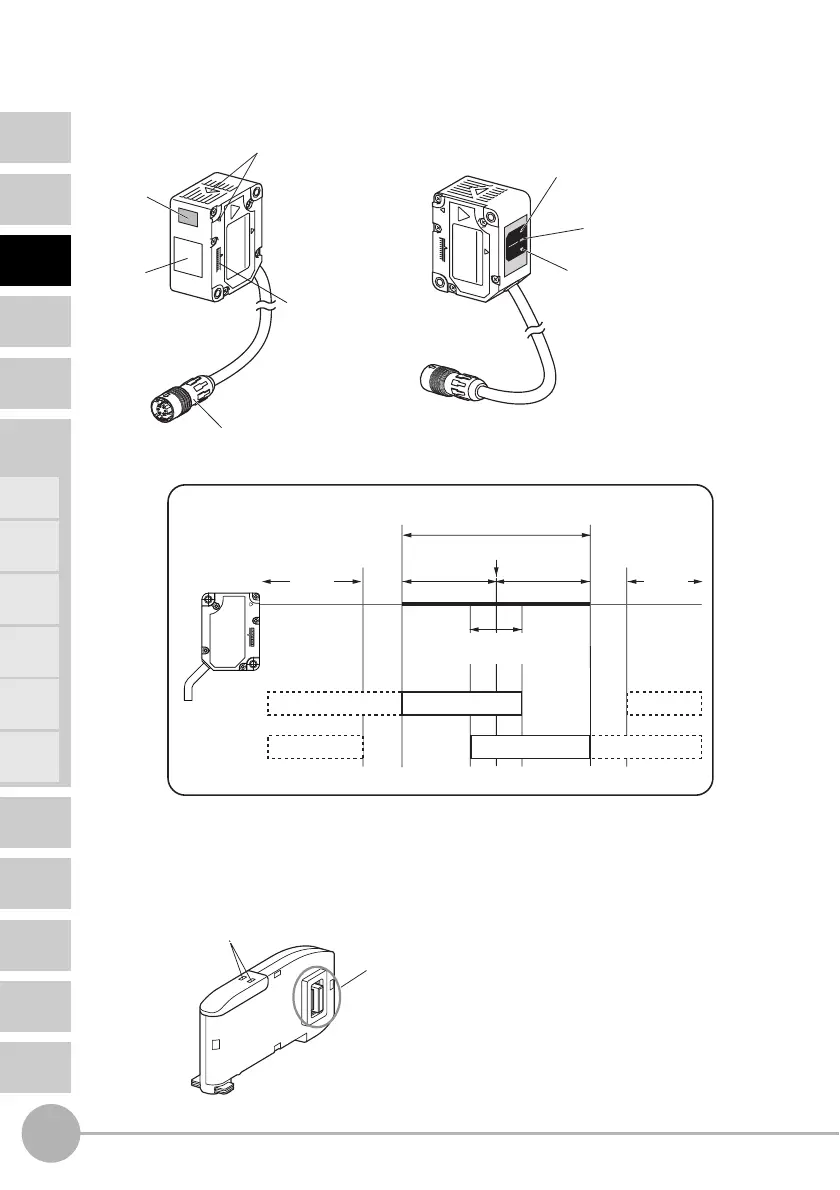

Part Names and Functions
22
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness
Sensor Head
Calculating Unit
Emitting
section
Receiving
section
Emission center position mark
CMOS position mark
Connector
FAR Indicator (green)
NEAR Indicator (green)
Laser life indicator (red)
FAR
NEAR
Indicator Operation According to Position of Workpiece
NEAR side
Measuring range
FAR side
NEAR
indicator
FAR
indicator
Measuring center distance
Flashing FlashingLit
Flashing FlashingLit
Measuring center distance
± (measuring range x 10%)
Error
(outside measuring range)
Error
(outside measuring range)
This mark indicates the emission center
position.
See the table below.
See the table below.
This mark indicates the position of the
CMOS light-receiving element.
This is connected to the Amplifier Unit.
Connection indicator
Connector (two connectors, one on each side)
This indicator lights when the
Amplifier Unit is connected.
This is connected to the Amplifier Unit.
(used for connecting two or more Calculating Units)
