Installation
25
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness
Connecting Calculating Units
Use a Calculating Unit to connect Amplifier Units when performing calculations between
Amplifier Units and to prevent mutual interference between Sensor Heads.
Provide power to all connected Amplifier Units at the same time.

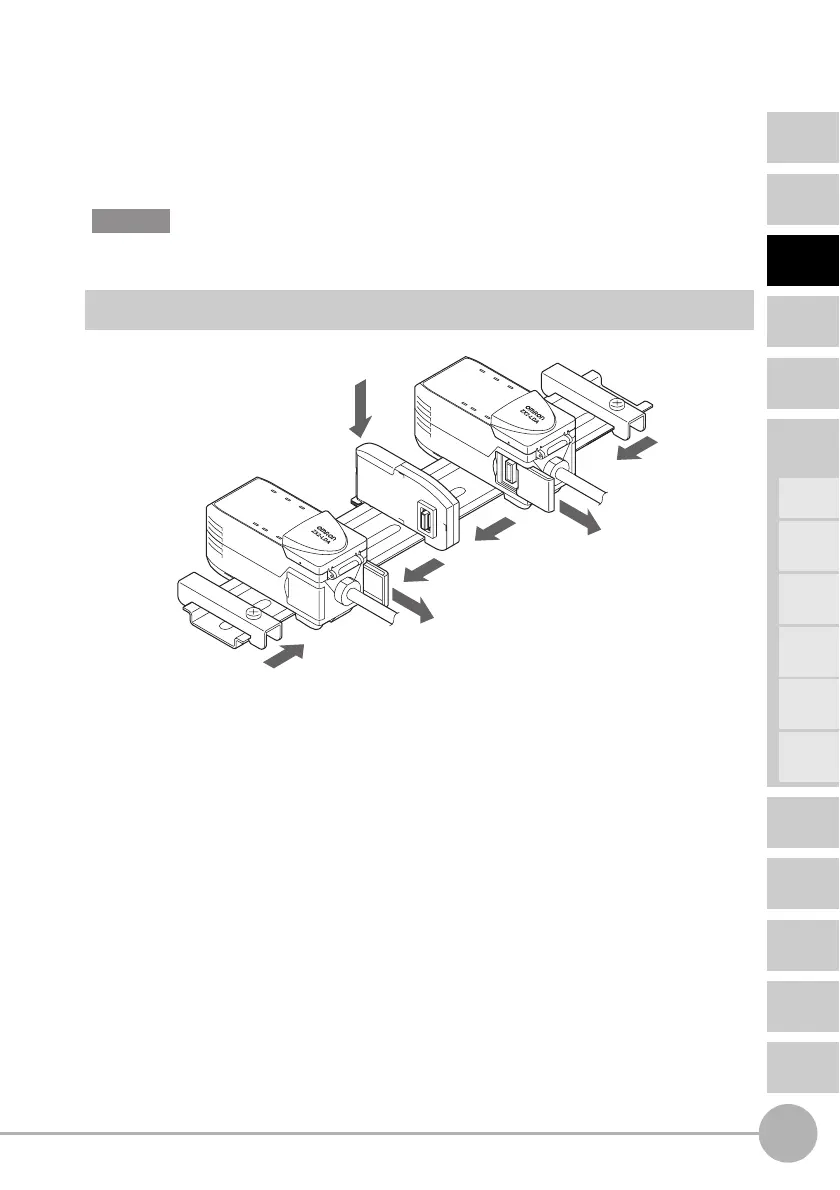

Connection Method
1 Open the connector cover on the Amplifier Unit.
Open the connector cover by lifting and sliding it.
2 Mount the Calculating Unit to the DIN Track.
3 Slide and connect the Calculating Unit to the Amplifier Unit connector.
4 Slide and connect the second Amplifier Unit to the Calculating Unit
connector.
5 Fix in place with the End Plate (sold separately: PFP-M).
[Continued on the following page]
Important
1
5
5
1
2
3
4
To Next Page
