Connecting the Sensor Head to the Amplifier
Unit
Installation Method

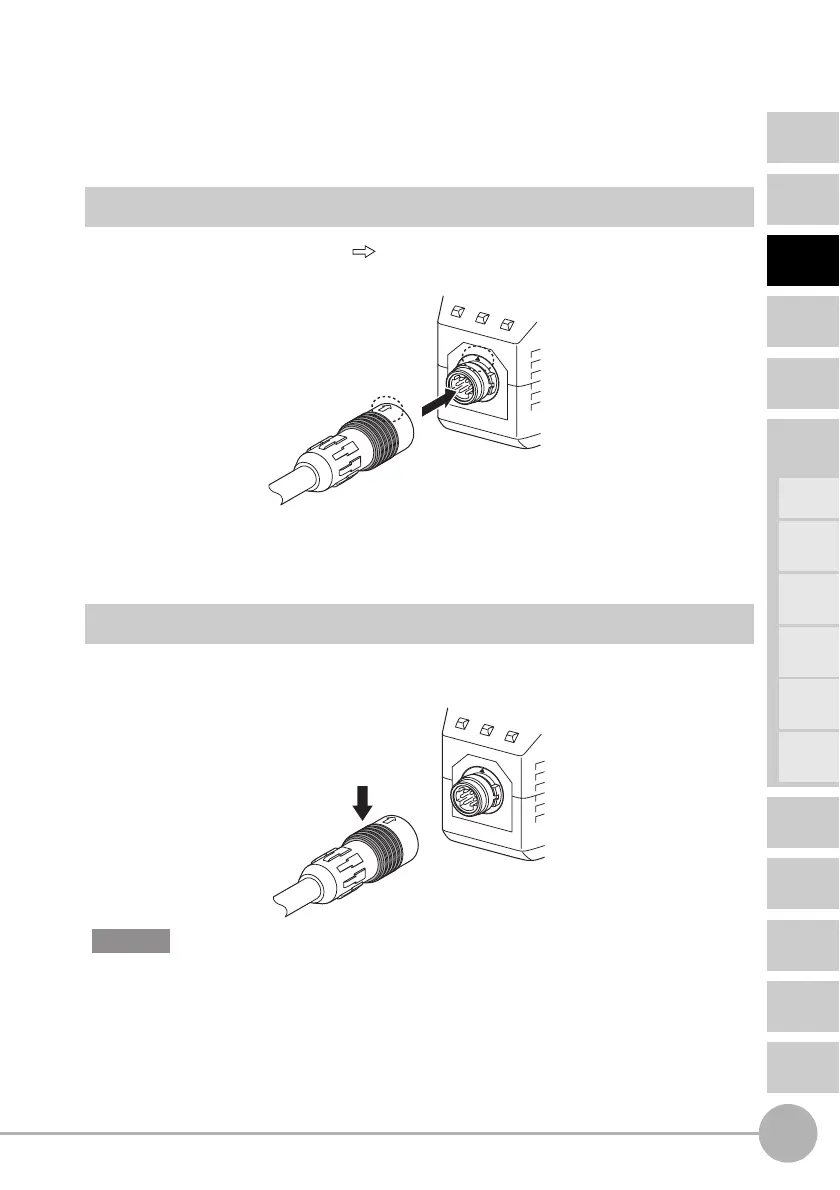

Align the position of the connector mark with the S mark on the Amplifier Unit, and
insert the connector until it is locked in place.
Removal Method
To disconnect the Sensor Head, hold the Sensor Head's connector ring and the Amplifier
Unit connector, and then pull them straight out.
• Do not touch the terminals inside the connector.
• Prevent the connector from being subjected to static electricity.
• When the Sensor Head is replaced with a different type, set all the setting data inside the
Amplifier Unit again since it will be cleared.
(default values: → See page 106.)
