Omron ZX2 Series User Manual

Steps and Warpage
47
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

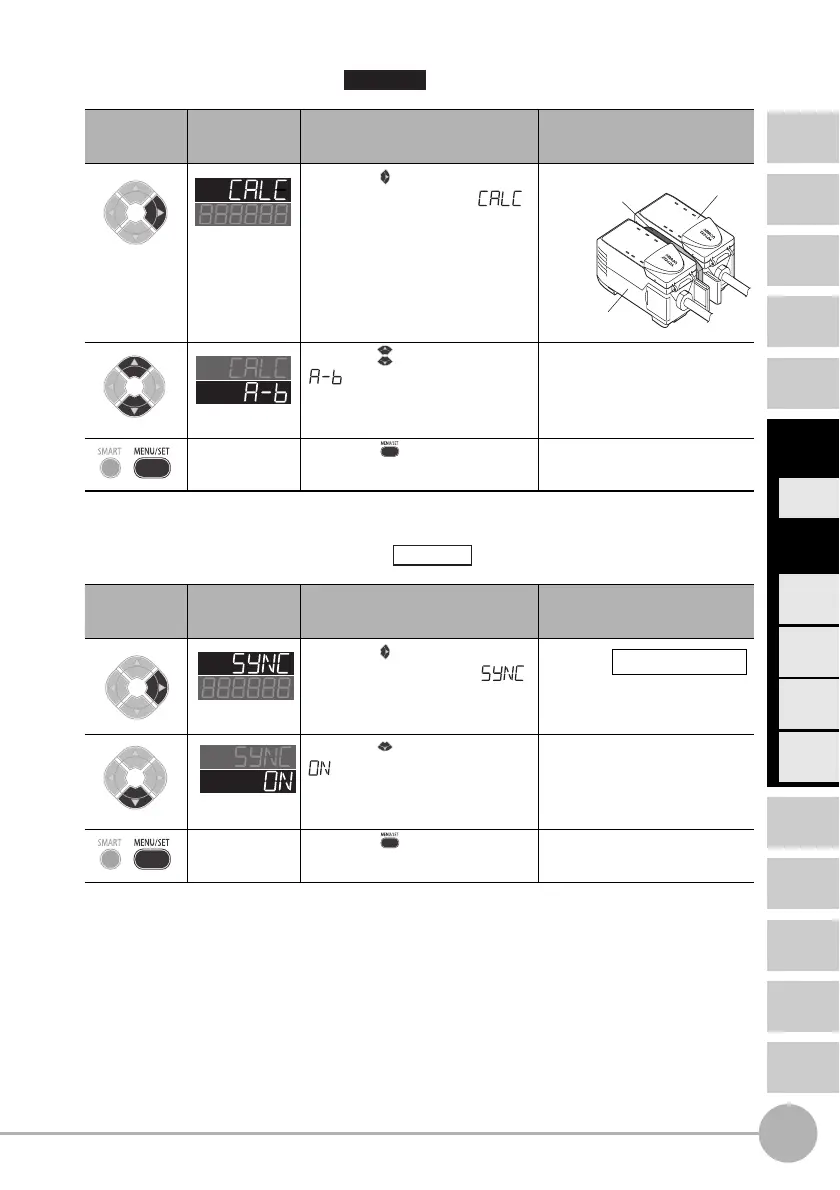

5 2-sensor operation (A-B)
6 Mutual interference prevention
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button on the CH2
Amplifier Unit to display .
Press the button to display
.
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button on the CH1
Amplifier Unit to display .
Press the button to display
.
Press the button to apply
the setting.
Required
Set this item on the CH2 Amplifier Unit when
calculating the difference between the
measurement results from two Sensor Heads.
Press to display.
CH1
Calculating Unit
(Calculation result is output.)
CH2
Press to select
Optional
Set this item on the CH1 Amplifier Unit to
prevent the influence of mutual
interference between two Sensor Heads.
Press to display.
Default value: OFF
Press to display.
