Omron ZX2 Series User Manual

Double Sheet Detection
49
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

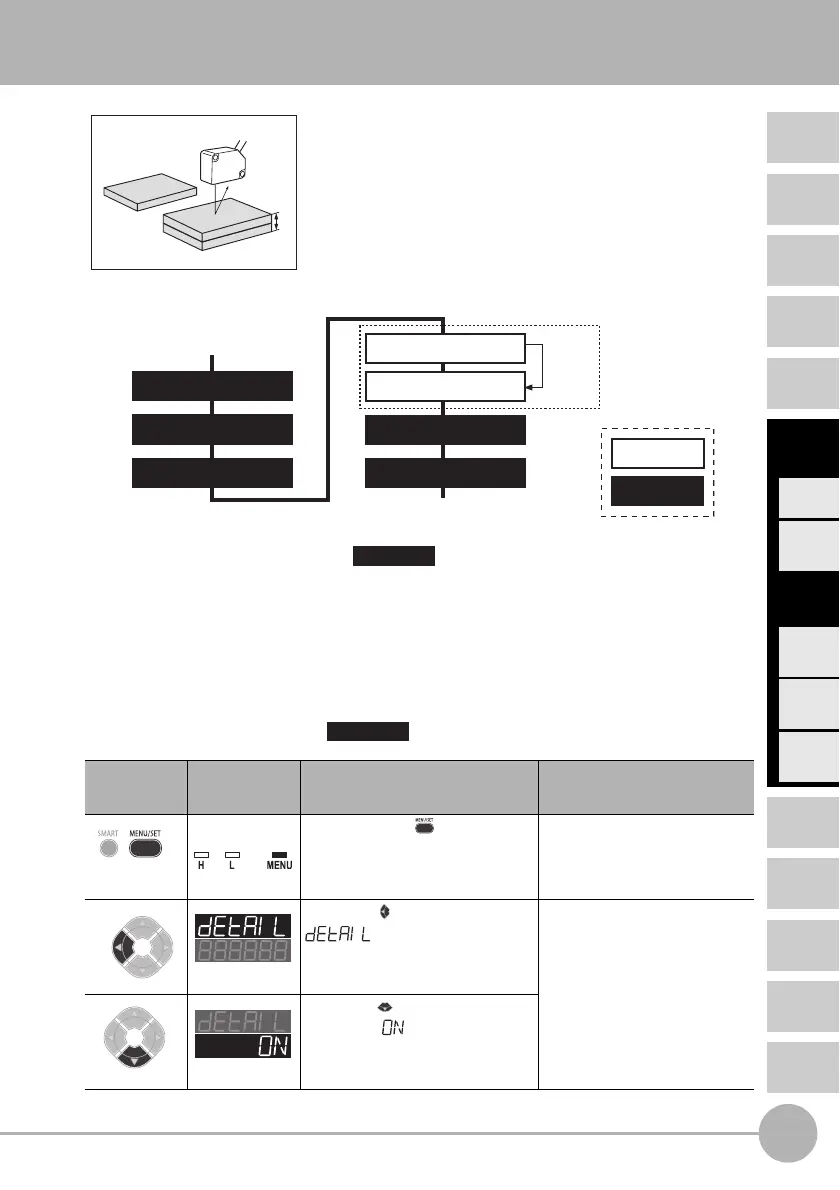

Double Sheet Detection
Procedure for setting up double sheet detection
1 Sensor installation/wiring
Has the Sensor been installed and wired? (See page 23.)
Set the reference workpiece in place, adjust the position of the Sensor Head while
looking at the digital display values on the Amplifier Unit or the indicators on the
Sensor Head so that the measured value at measurement of one product and at
measurement of two products is within the measuring range, and install the Sensor
Head at this position.
2 Set to the MENU mode
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Press the button to display
.
* This operation is not
required when hold and
trigger conditions are not to
be set.
Press the button to set the
display to to set display of
the detail menu.
Other than
OFF
Arbitrary setting
Required setting
Set to the MENU mode
2
Response time setting
3
Sensor installation/wiring
1
Smart Tuning
4
8
Return to RUN mode
Setting completed
7
Threshold setting
5
Hold
6
Trigger conditions
Required
Required
Select the desired mode to set
the measurement conditions in.
Hold down for
3 seconds
Lit
Press to display.
Press to display.
