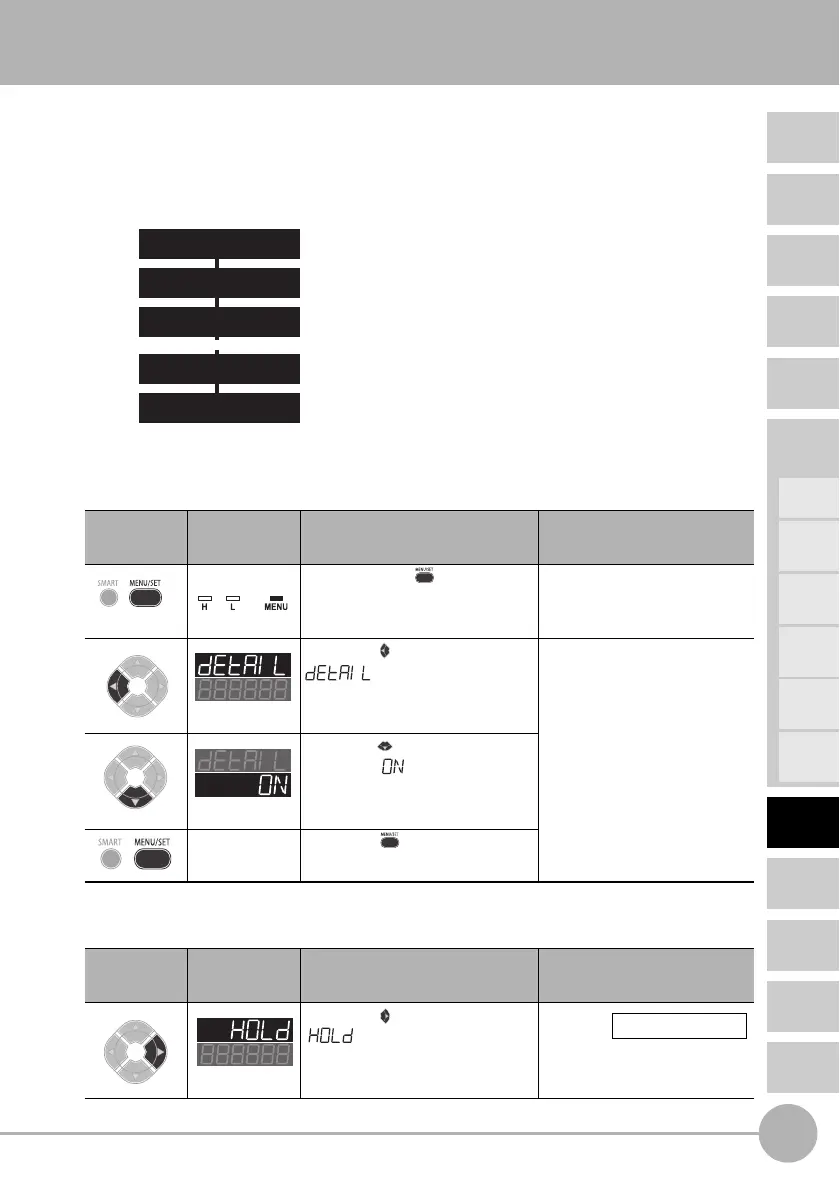

Setting the Hold Function
Hold:
The hold function holds any values during the measurement period, and outputs
these values at the end of measurement.
Procedure for setting up hold
1 Set to the MENU mode
2 Hold conditions setting
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Press the button to display
.
* This step is not required if
detail menu display is
already set to ON in the
MENU mode.
Press the button to set the
display to to set display of
the detail menu.
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
4
Trigger level setting
5
Return to RUN mode
Setting completed
3
Self-trigger setting
1
Set to the MENU mode
2
Hold conditions setting
When SELF U/SELF D is selected
Hold down for
3 seconds
Lit
Press to display.
Press to display.
Press to display.
Default value: OFF
