Setting the Hold Function
81
ZX2 User’s Manual
INTRODUCTION
BASIC
SETUP
PREPARATION
FOR
MEASUREMENT
TROUBLE-
SHOOTING
INDEX
CONTENTS
SETTING
TRANSITION
CHARTS
FLOW OF
OPERATION
MAIN
APPLICATIONS
& SETTING
METHODS
DETAILED
SETTINGS
SPECIFI-
CATIONS
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

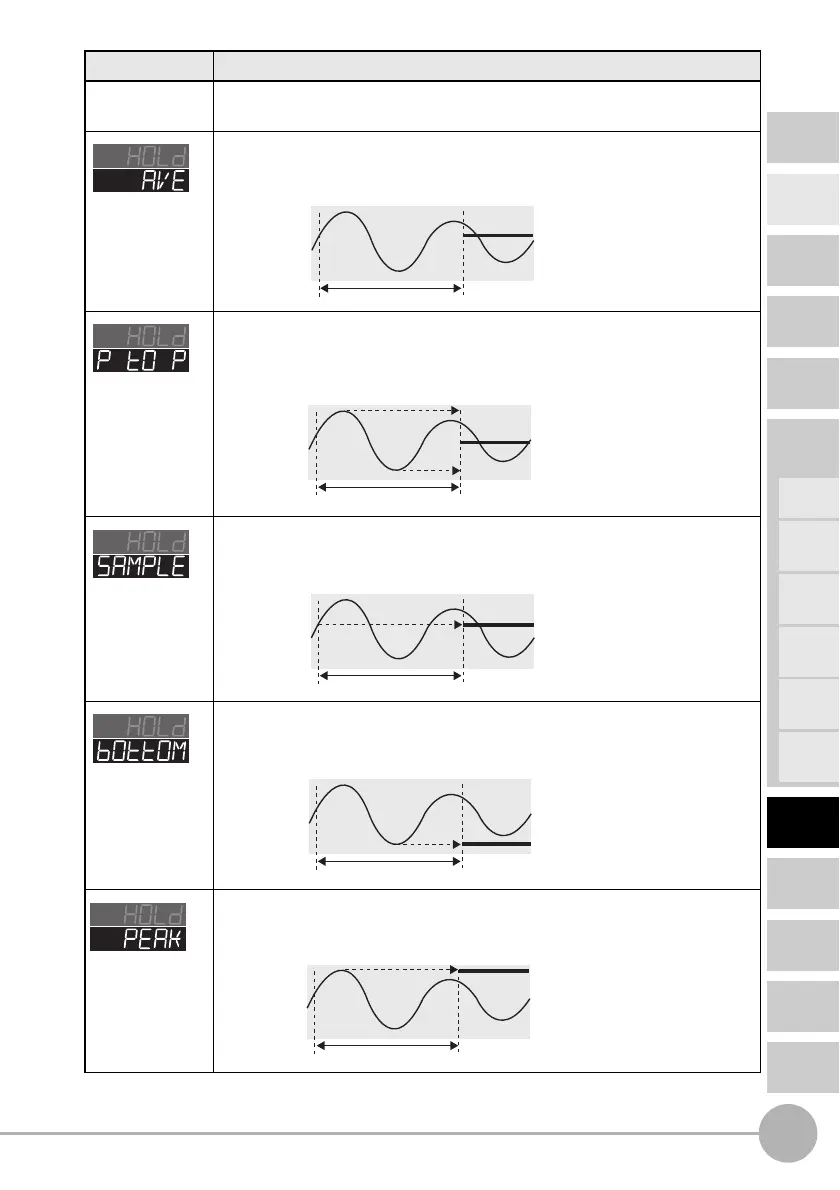

Selection menu Details
OFF (default) Hold measurement is not performed. The measured value is output at all
times.
The average measured value during the sampling period is held. The output
changes at the end of the sampling period and is held until the end of the
next sampling period.
The difference between the minimum and maximum values during the
sampling period is held. This option is selected mainly to detect vibration.
The output changes at the end of the sampling period and is held until the
end of the next sampling period.
The measured value at the start of the sampling period is held. The output
changes at the end of the sampling period and is held until the end of the
next sampling period.
The minimum value during the sampling period is held. The output changes
at the end of the sampling period and is held until the end of the next
sampling period.
The maximum value during the sampling period is held. The output changes
at the end of the sampling period and is held until the end of the next
sampling period.
Current
measured
value
Output
(average of measured values)
Sampling period
Maximum value
Current
measured
value
Output
(maximum value - minimum value)
Sampling period
Minimum
value
Current
measured
value
Outpu
t
Sampling period
Minimum
value
Current
measured
value
Output
Sampling period
Maximum value
Current
measured
value
Output
Sampling period
