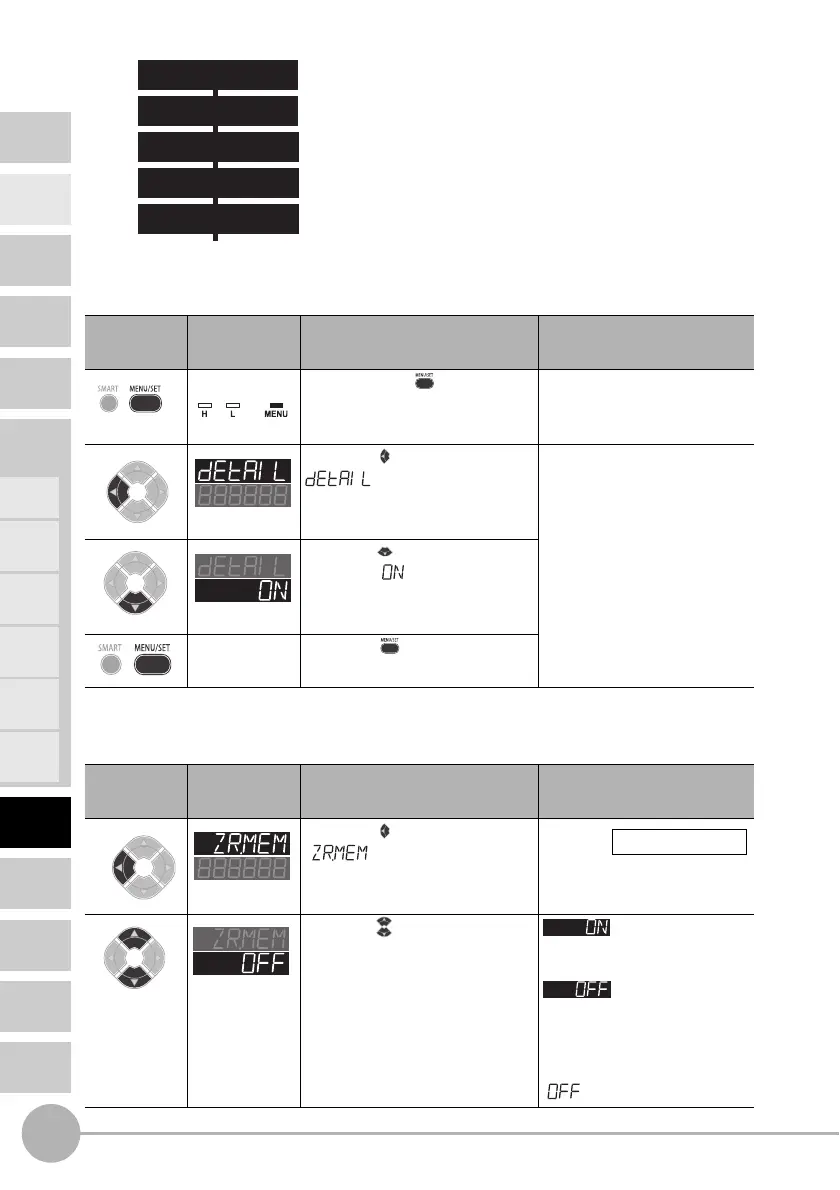

Procedure for setting up zero reset
1 Set to the MENU mode
2 Zero reset memory setting
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Hold down the button for
three seconds to switch to the
MENU mode.
Press the button to display
.
* This step is not required if
detail menu display is
already set to ON in the
MENU mode.
Press the button to set the
display to to set display of
the detail menu.
Press the button to apply
the setting.
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Press the button to display
.
Select the
desired value.
Press the button to select the
zero reset memory setting. Saves the current measured
result.
Does not save the current
measured result.
When executing a zero reset
at each measurement, set to
.
4
Return to RUN mode
5
Zero reset execution
Setting completed
3
Display setting at zero reset
1
Set to the MENU mode
2
Zero reset memory setting
Hold down for
3 seconds
Lit
Press to display.
Press to display.
Select whether or not to hold the measured
value after the zero reset was performed when
the power is turned OFF.
Press to display.
Default value: OFF
Press to select
