Omron ZX2 Series User Manual

Zero Reset
90
ZX2 User’s Manual
INTRODUCTION
MAIN
APPLICATIONS
& SETTING
METHODS
SPECIFI-
CATIONS
INDEX
SETTING
TRANSITION
CHARTS
DETAILED
SETTINGS
FLOW OF
OPERATION
CONTENTS
PREPARATION
FOR
MEASUREMENT
BASIC
SETUP
TROUBLE-
SHOOTING
Height
Double
Sheet
Detection
Positioning
Eccentricity
and Surface
Deflection
Steps
and
Warpage
Thickness

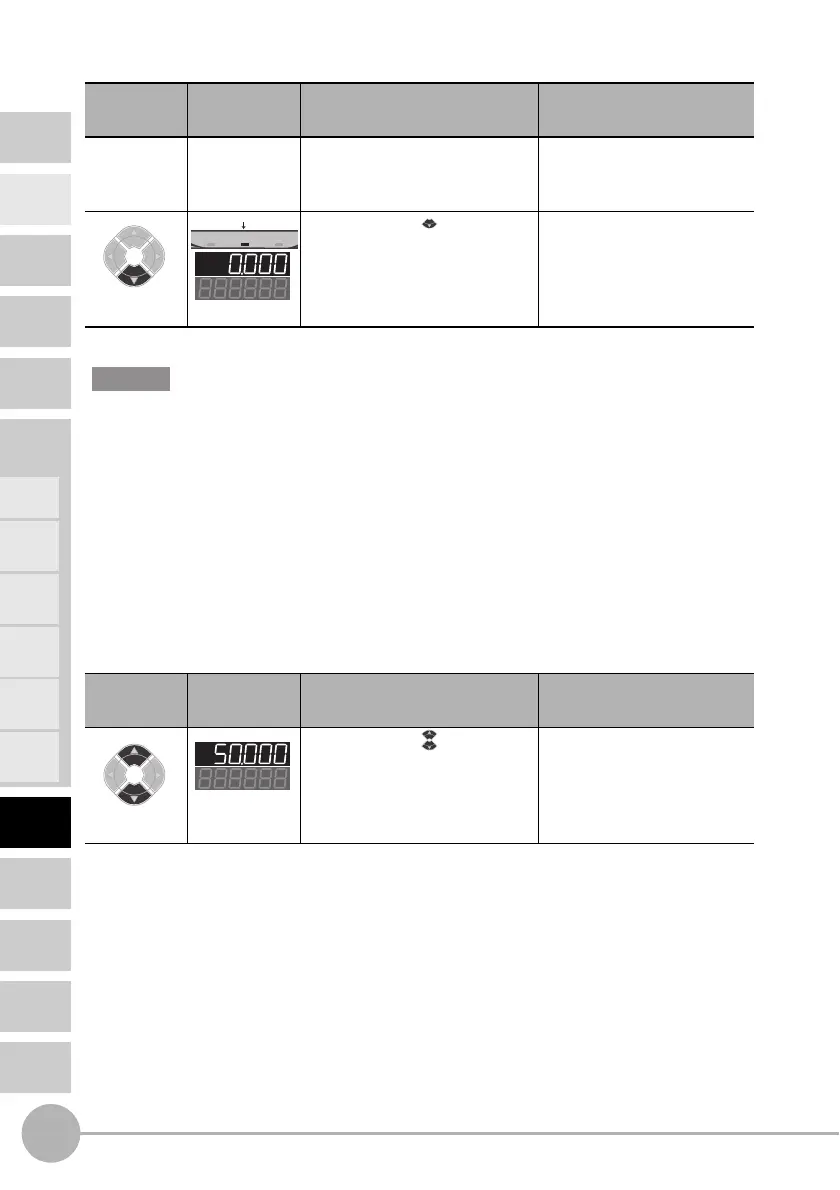

5 Zero reset execution
• The minimum display value is -99.999, and the maximum display value is 999.999. If the
measured value is below the minimum value after execution of zero reset, -99.999 will be
displayed. 999.999 will be displayed if the measured value is above the maximum value.
Zero reset can be executed only if the measured value is within ±10% of the rated measuring
range.
• Even if a zero reset is executed, the threshold does not change from the setting before
execution of the zero reset.
(For example, even if a zero reset is executed so that measured value 2 become 0, the HIGH
threshold stays at 5 if it is 5 before zero reset is executed.)
Procedure for canceling a zero reset
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
——
Set the sensing object to be
used for executing the zero
reset.
Either press the button for
one second in the RUN mode,
or input the zero reset signal (4
ms to 1 s) from an external
device.
(For details on external
inputs, see page 101.)
Button
Operation
Display Description of Operation
Explanation of
Selection Menu
Either press the button for
one second in the RUN mode,
or input the zero reset signal (3 s
or more) from an external
device.
Hold both down for 1 second
LD ON ZERO
Lit
ENABL
E
Important
Hold both down for 1 second
Hold both down for 1 second
