U S B - 1 6 1 0 - K 2
U S B - 1 6 1 0 - D 2
Rev. 21 Dec. 2023
42
Contact Us
Thank you for choosing our laser equipment for your home or shop! For a .pdf copy of the
latest version of this manual, use the appropriate app on your smartphone or other device
to scan the QR code to the right.
Come join the OMTech community at our official laser group on Facebook or visit the
company forums at omtechlaser.com! Check our YouTube channel for helpful hints and
instructional videos. If you encounter any problem regarding your engraver, do not
hesitate to contact customer service with your order number at help@cs-supportpro.com
or techsupport@omtechlaser.com. Our teams will respond within 24 hours to make
things right. You can also reach us Monday to Friday at (949) 539-0458 between 8 am and
4:30 pm PST.
Thank you and we hope you will choose us again for all your laser needs!

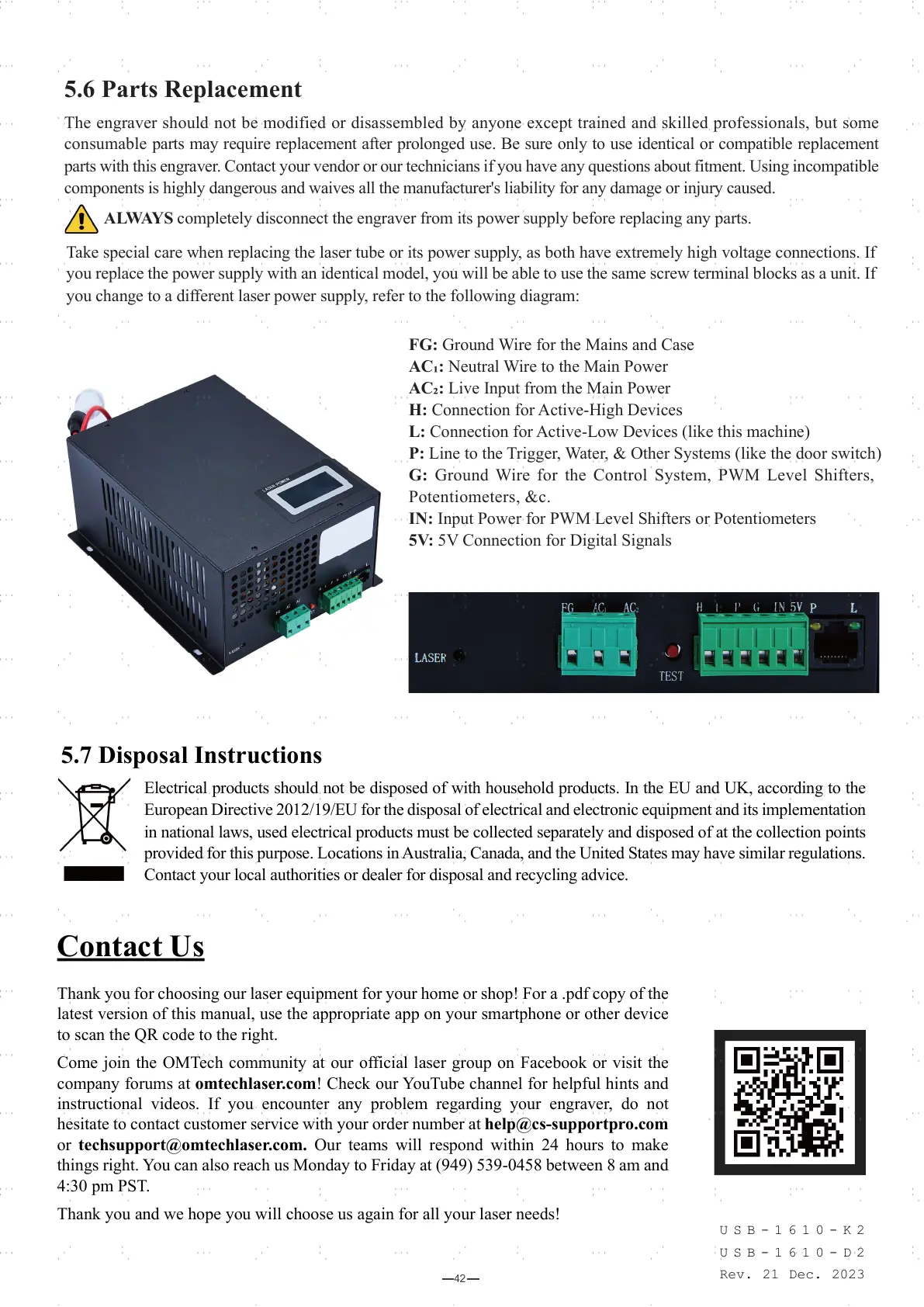

5.6 Parts Replacement
The engraver should not be modified or disassembled by anyone except trained and skilled professionals, but some
consumable parts may require replacement after prolonged use. Be sure only to use identical or compatible replacement
parts with this engraver. Contact your vendor or our technicians if you have any questions about fitment. Using incompatible
components is highly dangerous and waives all the manufacturer's liability for any damage or injury caused.
ALWAYS completely disconnect the engraver from its power supply before replacing any parts.
Take special care when replacing the laser tube or its power supply, as both have extremely high voltage connections. If
you replace the power supply with an identical model, you will be able to use the same screw terminal blocks as a unit. If
you change to a different laser power supply, refer to the following diagram:
5.7 Disposal Instructions
Electrical products should not be disposed of with household products. In the EU and UK, according to the
European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation
in national laws, used electrical products must be collected separately and disposed of at the collection points
provided for this purpose. Locations in Australia, Canada, and the United States may have similar regulations.
Contact your local authorities or dealer for disposal and recycling advice.
FG: Ground Wire for the Mains and Case
AC₁: Neutral Wire to the Main Power
AC₂: Live Input from the Main Power
H: Connection for Active-High Devices
L: Connection for Active-Low Devices (like this machine)
P: Line to the Trigger, Water, & Other Systems (like the door switch)
G: Ground Wire for the Control System, PWM Level Shifters,
Potentiometers, &c.
IN: Input Power for PWM Level Shifters or Potentiometers
5V: 5V Connection for Digital Signals
