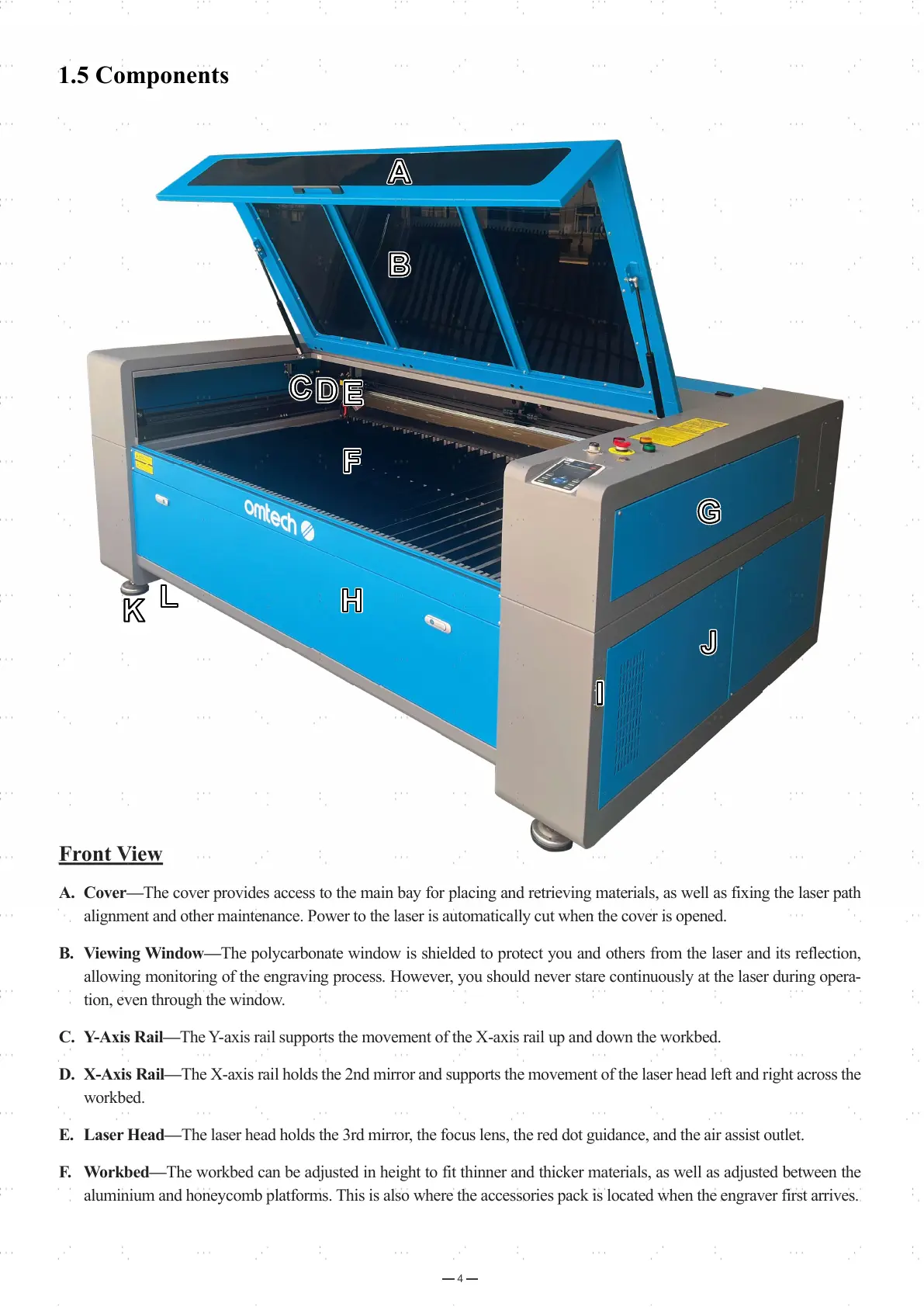

1.5 Components
AA
BB
CC
EE
FF
GG
HH
DD
LL
KK
JJ
II
Front View
A. Cover—The cover provides access to the main bay for placing and retrieving materials, as well as fixing the laser path
alignment and other maintenance. Power to the laser is automatically cut when the cover is opened.
B. Viewing Window—The polycarbonate window is shielded to protect you and others from the laser and its reflection,
allowing monitoring of the engraving process. However, you should never stare continuously at the laser during opera-
tion, even through the window.
C. Y-Axis Rail—The Y-axis rail supports the movement of the X-axis rail up and down the workbed.
D. X-Axis Rail—The X-axis rail holds the 2nd mirror and supports the movement of the laser head left and right across the
workbed.
E. Laser Head—The laser head holds the 3rd mirror, the focus lens, the red dot guidance, and the air assist outlet.
F. Workbed—The workbed can be adjusted in height to fit thinner and thicker materials, as well as adjusted between the
aluminium and honeycomb platforms. This is also where the accessories pack is located when the engraver first arrives.
