Omtech USB3020N User Manual

6

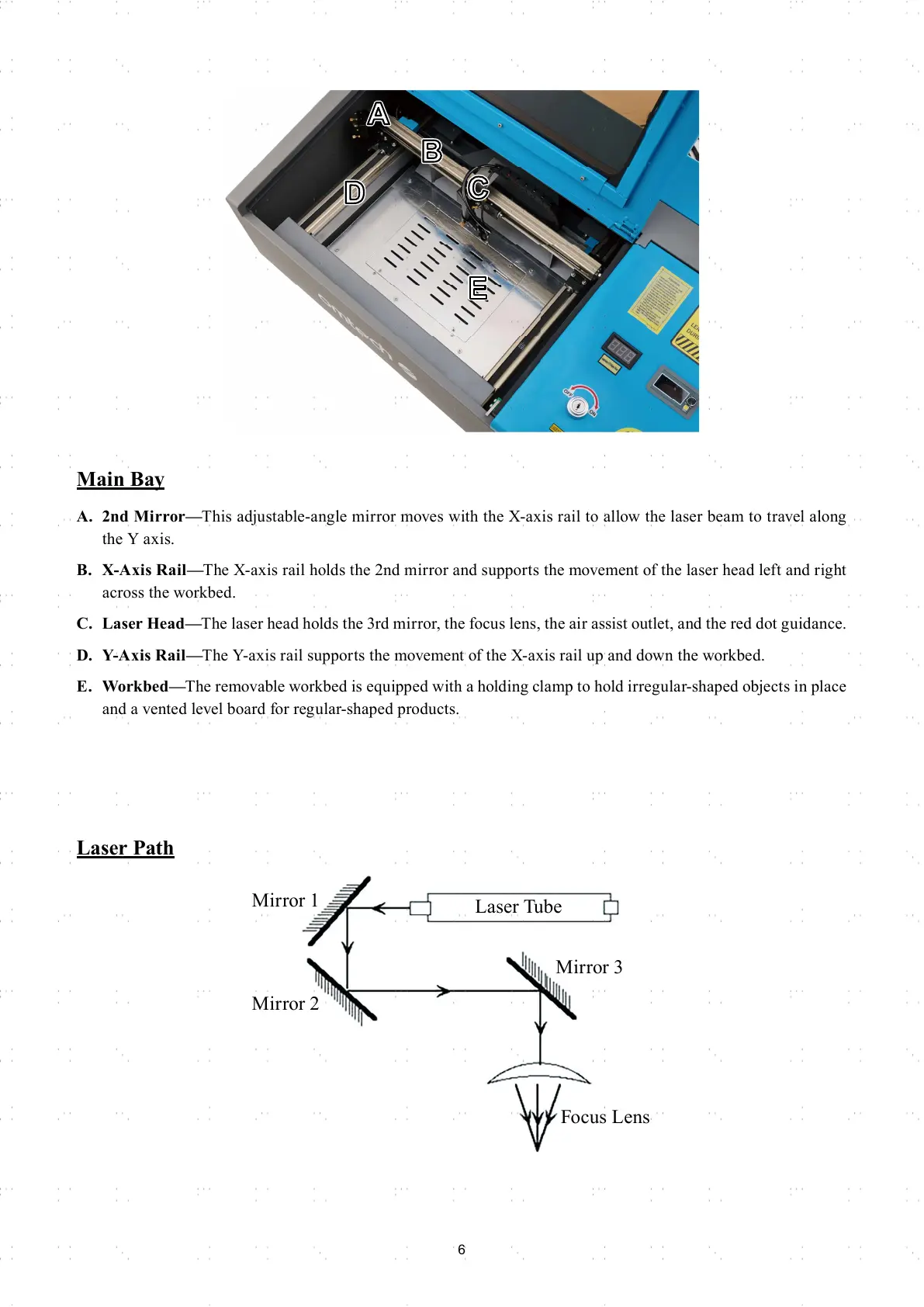

Main Bay
A. 2nd Mirror—This adjustable-angle mirror moves with the X-axis rail to allow the laser beam to travel along
the Y axis.
B. X-Axis Rail—The X-axis rail holds the 2nd mirror and supports the movement of the laser head left and right
across the workbed.
C. Laser Head—The laser head holds the 3rd mirror, the focus lens, the air assist outlet, and the red dot guidance.
D. Y-Axis Rail—The Y-axis rail supports the movement of the X-axis rail up and down the workbed.
E. Workbed—The removable workbed is equipped with a holding clamp to hold irregular-shaped objects in place
and a vented level board for regular-shaped products.
Laser Path
Laser Tube
Mirror 3
Mirror 1
Mirror 2
Focus Lens

Omtech USB3020N Specifications

General

Brand	Omtech
Model	USB3020N
Category	Engraver
Language	English
