ONEFINITY Elite Series - Page 21

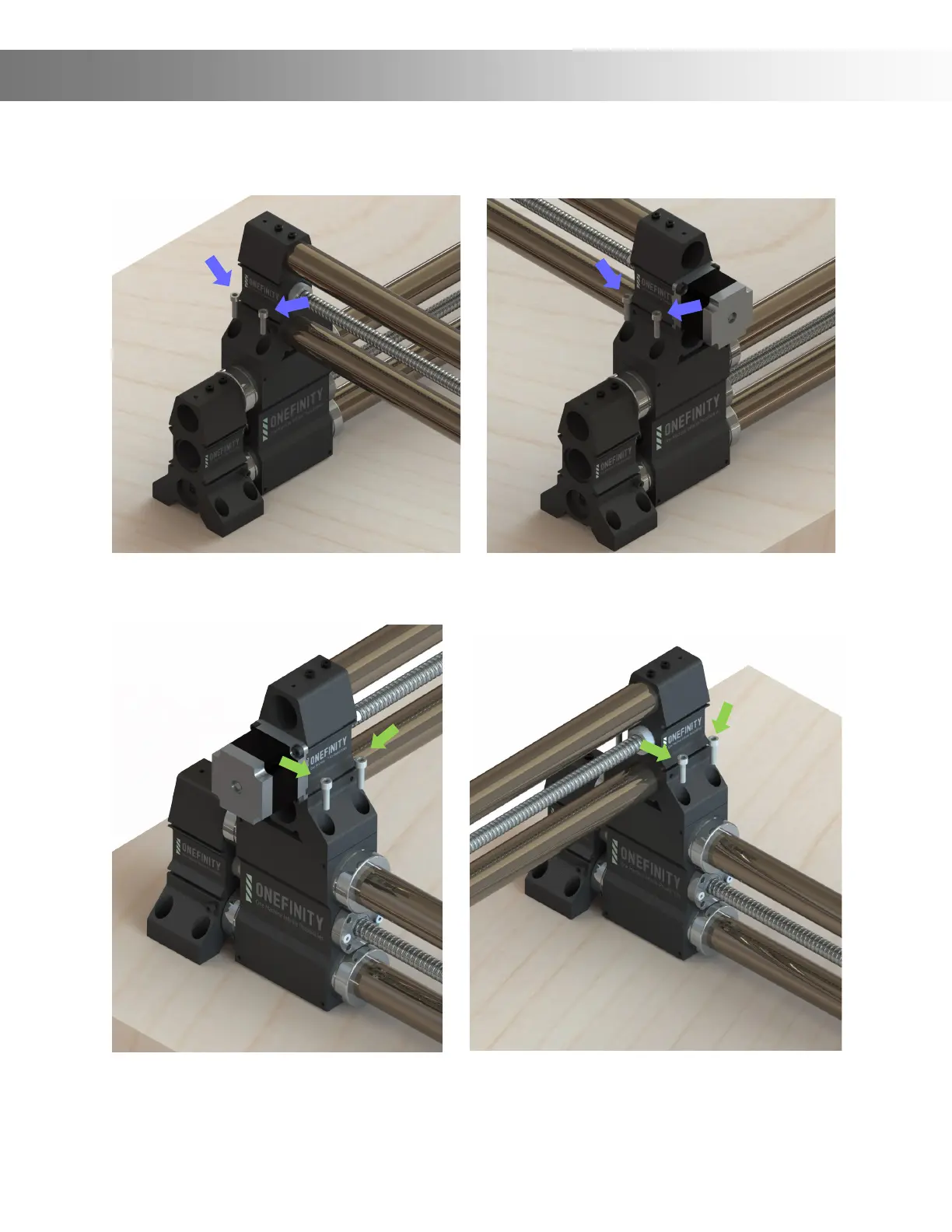

Step 5: Once you have ensured the Y-Axis Gantry Blocks and X-Axis Rails Ends are ush, fasten
the front of the X-Rail to the Y-Axis using four (4) X-Rail Mounting Screws (Blue Arrows)
Step 6: Fasten the back of the X-Rail to the Y-Axis using the remaining four (4) X-Rail Mount-
ing Screws (Green Arrows)
Assembly Instructions
