Oneida Air Systems Supercell - Assembly Instructions

The wall bracket should be installed to a sturdy, reinforced surface e.g. concrete wall, brick
wall, drywall with wooden studs. The wall bracket is designed to work with standard 16” stud
spacing. This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13 mm
.5"
13 mm
16"
406 mm
8"
203 mm
8"
203 mm
4"
102 mm
4"
102 mm
Supercell Wall Bracket Template
#ZBT040001
Drill Here Drill Here
Drill Here Drill Here
LEVEL THIS LINE
The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicular to the wall. Decide how you want your system oriented during installation to
best meet your shop’s needs. Other positions will not work as they will hinder installation of
the Rear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
The wall bracket should be installed to a sturdy, reinforced surface e.g. concrete wall, brick
wall, drywall with wooden studs. The wall bracket is designed to work with standard 16” stud
spacing. This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13 mm
.5"
13 mm
16"
406 mm
8"
203 mm
8"
203 mm
4"
102 mm
4"
102 mm
Supercell Wall Bracket Template
#ZBT040001
Drill Here Drill Here
Drill Here Drill Here
LEVEL THIS LINE
The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicular to the wall. Decide how you want your system oriented during installation to
best meet your shop’s needs. Other positions will not work as they will hinder installation of
the Rear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT

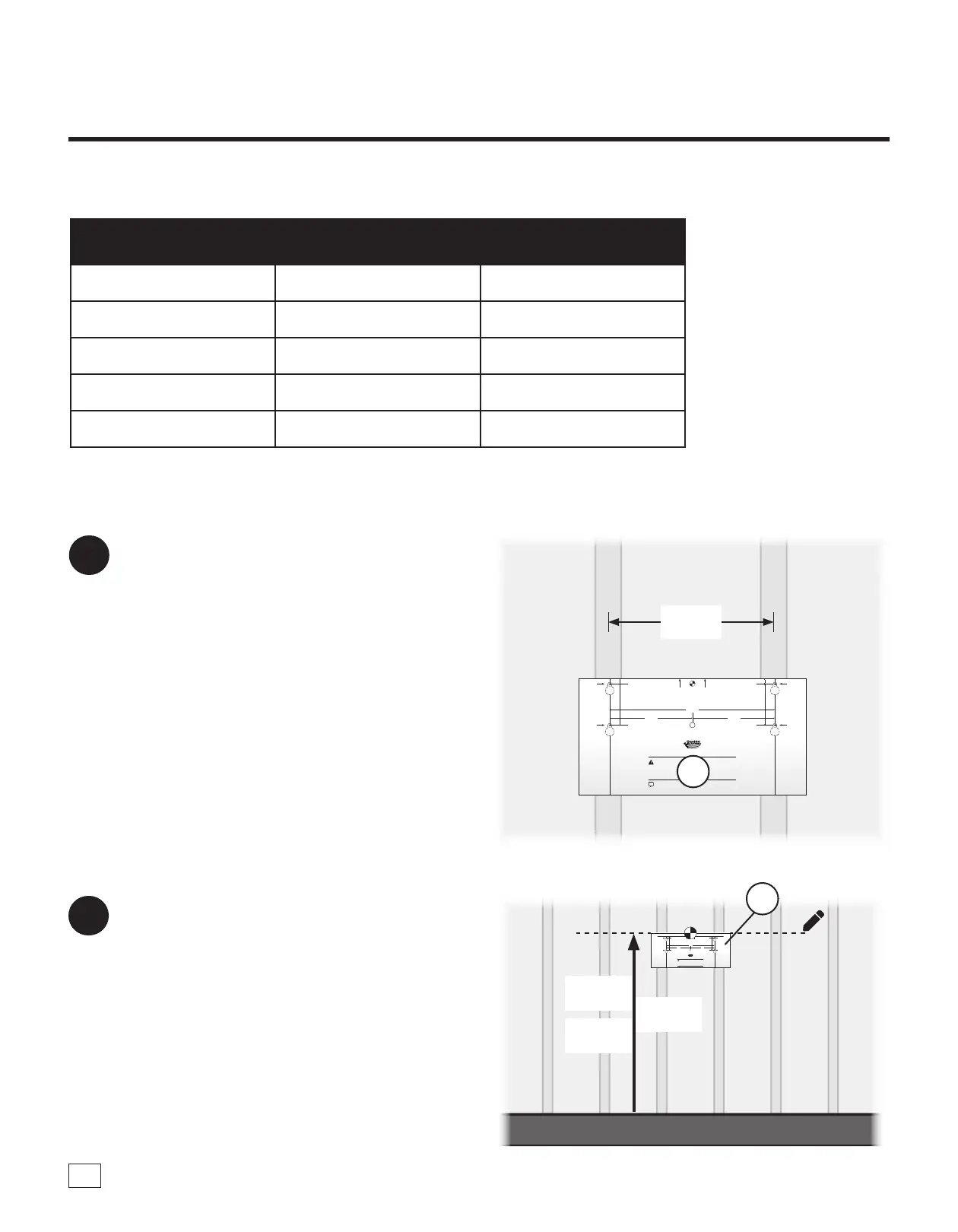

14 Oneida Air Systems
Assembly Instructions
You will need the following tools:
WALL MOUNTING BRACKET CYCLONE BODY
Stud Finder Light Adhesive Tape 7/16" Wrench
Tack / Center Punch / Nail Tape Measure / Ruler 7/16" Socket Wrench
Wall Mounting Fasteners * Level 1/2" Wrench
Power Drill Pencil / Marker 1/2" Socket Wrench
Drill Bit (for your wall fastener)
*You will need to supply your own wall mounting hardware. Use appropriate fasteners for the wall type you are
installing your system onto (e.g. lag bolts, drywall anchors, etc.).
1
Identify where you will install the Supercell
in your shop. It must mount to a reinforced
wall (studs, concrete, etc.) and is designed to
accommodate standard 16" stud spacing.
Center the wall bracket Template (G1)
between your wall studs [FIG. 1].
2
Mark a straight level line 45-13/16" (30-Gallon
drum), 38-1/2" (35-gallon drum), or 49-7/8"
(55-gallon drum) from the ground. Align the
top of the Template (G1) with the marked line
[FIG. 2] and temporarily secure the Template
(G1) to the wall with a tack or non-marking
tape. If you purchased the Universal Drum
Dolly, add an additional 4".
Note: If you wish to mount your system higher
than the recommend height, you will need
additional 5" dia. ex hose.
FIG. 2
FIG. 1
45-13/16"
1,164 mm
16"
406 mm
G1
G1
49-7/8"
1,267 mm
38-1/2"
978 mm
