FIG. 30
G21
G21
I
oneida-air.com 25
Assembly Instructions (Continued)
29

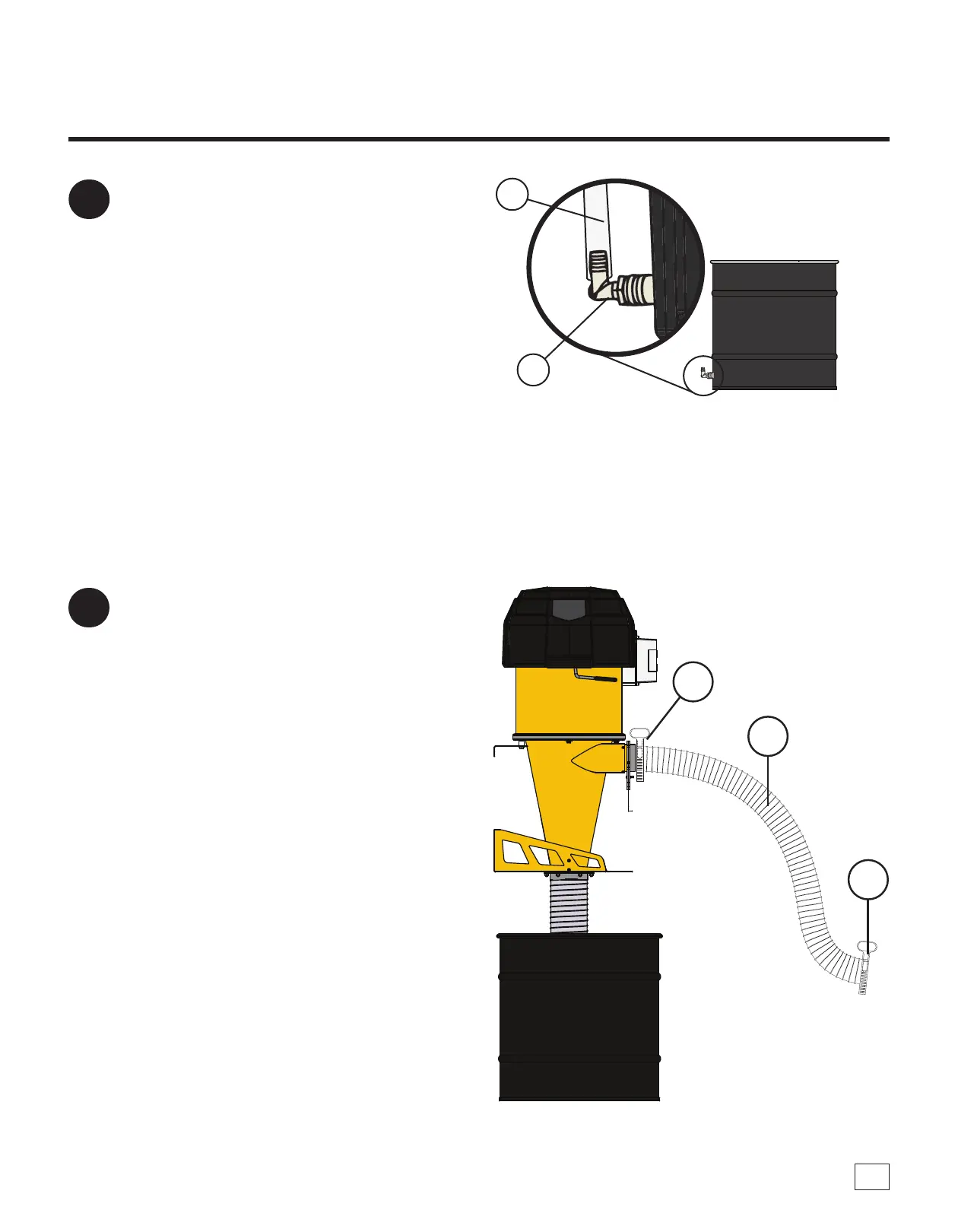

Attach the other end of the Vinyl Tubing (G16)
onto the Nylon Elbow (G18A) installed on the
lower section of the Drum (L). Push the Vinyl
Tubing onto the tting so that all the barbs are
covered [FIG. 29].
Note: If you are not using the automatic bag
holding feature of the system, the Valve of
the Tube Assembly MUST be in the closed
position.
30
Connect the Supercell to your tools or
ductwork using the Vacuum Pressure-Rated
Hose (I). Secure the hose in place using the
Turn-Key Band Clamps (G21) at either end
[FIG. 30].
Installation is complete! Open the inlet’s blast
gate to begin collecting dust from your tools.
Note: e system’s strong suction may cause
the steel drum to li or ex, causing a sharp
banging noise when the system is rst turned
on or when the lter is pulsed. is is normal
and should be expected as the negative pressure
builds up.
ONLY USE VACUUM PRESSURE RATED FLEXHOSE AND DUCT WITH THE SUPERCELL DUST COLLECTOR.
UNDER THE SYSTEM'S HIGH SUCTION, STANDARD HOSE/PIPE MAY COLLAPSE CAUSING AFFIXED TOOLS TO
BE PULLED TOWARDS THE SYSTEM, POTENTIALLY CAUSING DAMAGE AND/OR INJURY.
FIG. 29
G16
G18A
