Onkyo A-9377 Instruction Manual

6
Introduction —Continued
For detailed information, refer to the pages in parentheses.
A POWER ON/OFF switch (15)
Turns the A-9377 on or off.
B
SPEAKERS selector and indicators (15)
Selects speaker set A, speaker set B, both sets of
speakers, or turns the speakers off altogether. The A
and B indicators show which speaker set is selected.
C BASS control (17)
Adjusts the level of bass sounds.
D
MUTING indicator (16)
Lights up when the A-9377 is muted.
E
TREBLE control (17)
Adjusts the level of treble sounds.
F
Volume control (16)
Adjusts the volume.
G
BALANCE control (17)
Adjusts the balance of the left and right channels.
H TONE/DIRECT button and indicator (16)
Turns the Direct function on or off. The indicator
lights up when the Direct function is on.
I REC SELECTOR (17)
Selects the source to be recorded: LINE, PHONO,
CD, OFF, TUNER, DOCK, SOURCE.
J Input Selector and indicators (16)
Selects the input source: LINE, DOCK, PHONO,
CD, TUNER, or TAPE. The indicators show which
input source is selected.
K
Remote control sensor (10)
Receives control signals from the remote controller.
L PHONES jack (15)
Phone jack for connecting a pair of headphones.

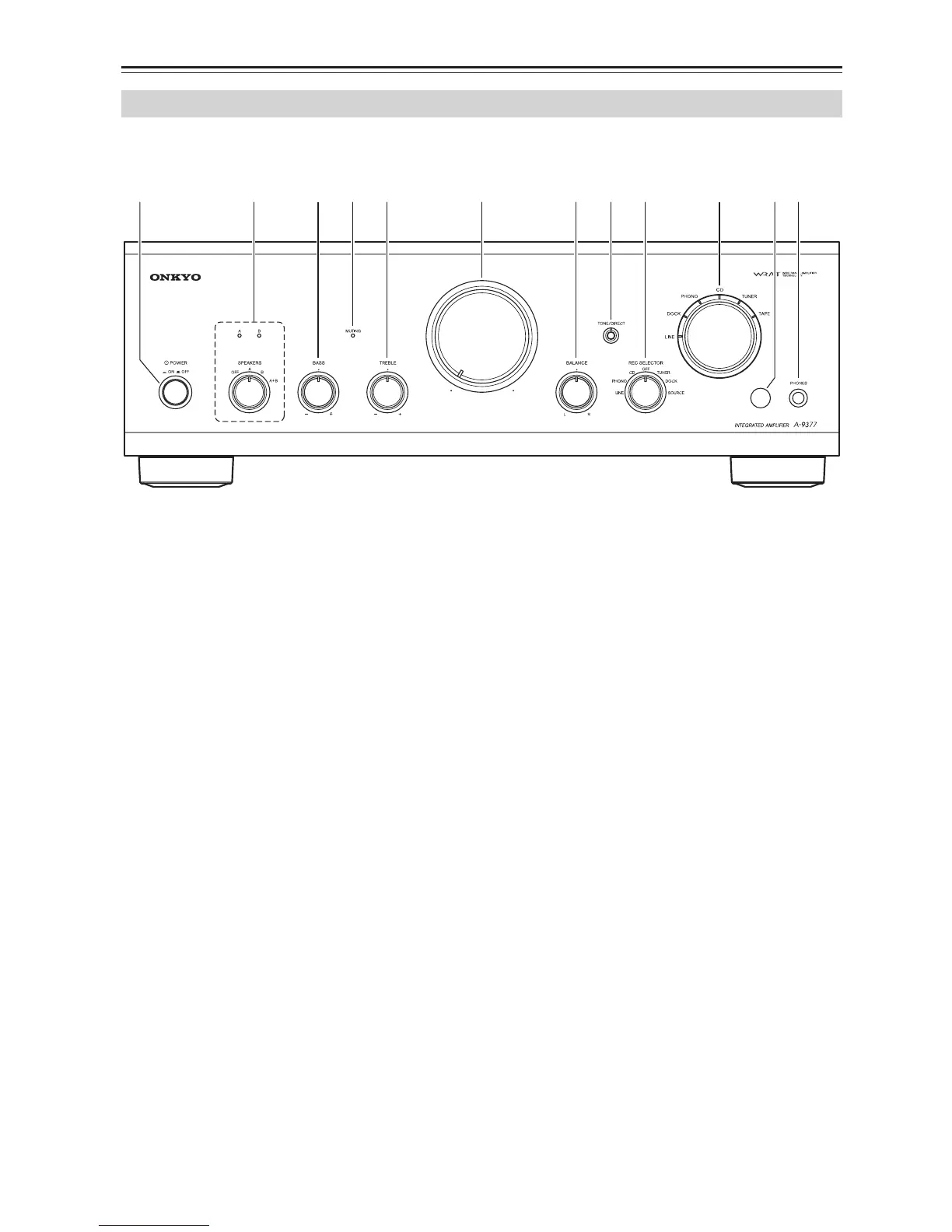

Front Panel
1 2 3 4 65 7 8 J9 LK

Onkyo A-9377 Specifications

General

Package depth	549 mm
Package width	428 mm
Package height	258 mm
Dimensions (WxDxH)	435 x 15 x 348 mm
Power requirements	AC 220-230 V, 50/60 Hz
Impedance	4 Ω
Frequency range	10 - 70000 Hz
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.08 %
Product color	Silver
Package weight	10700 g
Power consumption (typical)	286 W

Weight and Dimensions

Weight	8800 g
