Introduction
—Continued
A
GND terminal
Terminal for connecting a turntable’s ground wire.
B
SPEAKERS A
Terminal posts for connecting speaker set A.
C
SPEAKERS B
Terminal posts for connecting speaker set B.
D
AC INLET
Supplied power cord connects here.
E
AC OUTLETS
Supply AC power to other audio components. The
type of connector depends on the destination coun-
try.
F
PHONO (MM)
Analog audio input for connecting a turntable with a
moving-magnet cartridge.
G
CD
Analog audio input for connecting a CD player.
H
TUNER
Analog audio input is for connecting a tuner.
I
TAPE IN/OUT
Analog audio input and output for connecting a cas-
sette deck.
J
LINE
Analog audio input for connecting a component
with a line-level audio output (e.g., game console,
TV, etc.)
K
DOCK
Analog audio input for connecting an RI Dock.
L
PREOUT
Analog audio output for connecting a separate
power amplifier.
Note:
• Do not connect a source component to the PRE-
OUT jacks.
M
REMOTE CONTROL
(Remote Interactive) jacks can be connected to
jacks on other Onkyo audio components so that
you can control them with the A-9377’s remote con-
troller. To use , you must also make an analog
audio connection between the A-9377 and each
component.
N
VOLTAGE SELECTOR (not European model)
If your A-9377 has a VOLTAGE selector, set it to
match the AC voltage used in your area before plug-
ging in the power cord. (See page 3.)

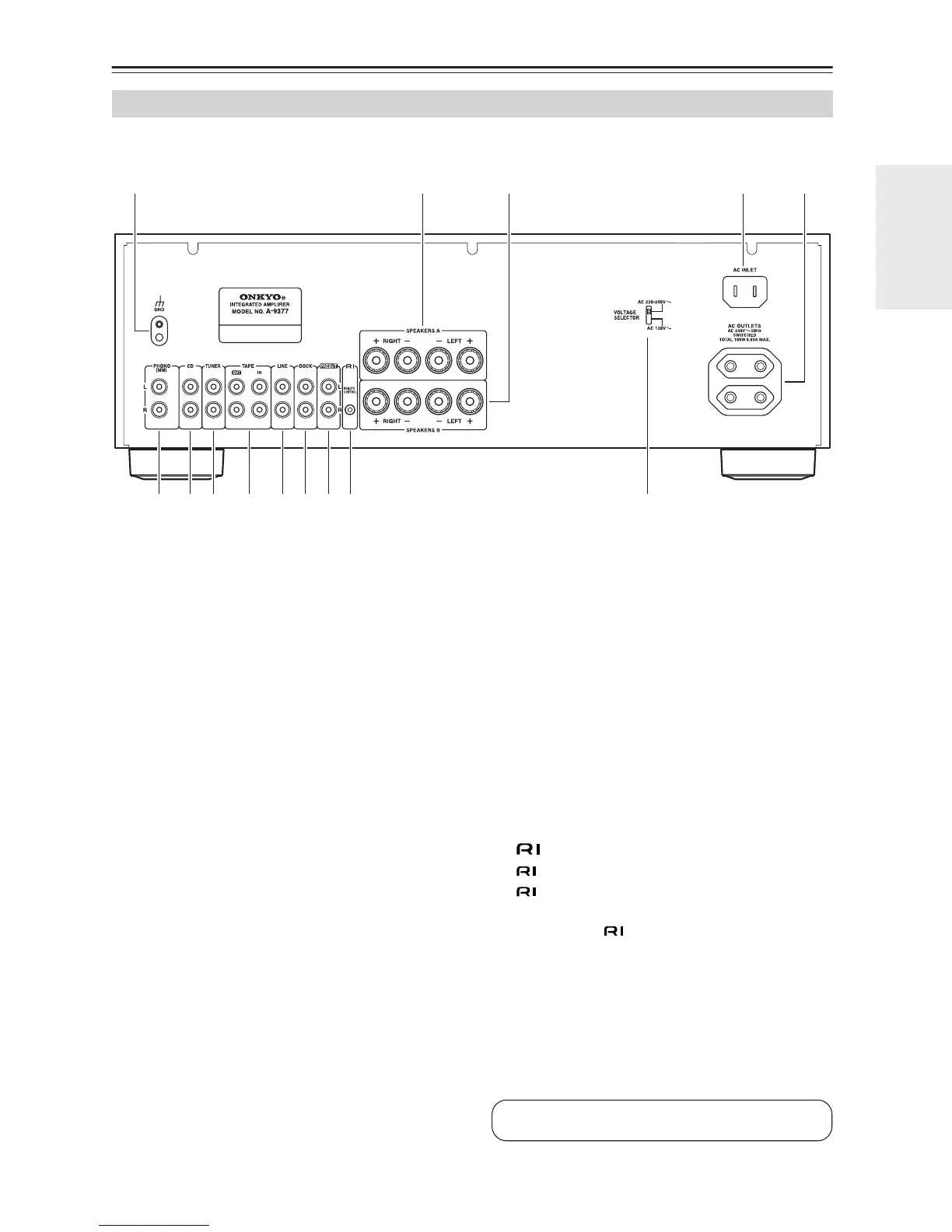

Rear Panel
* The type and number of connectors depends on the
destination country.
See pages 11–14 for connection information.
To Next Page
