Connecting the DV-CP704
This chapter explains how to connect the DV-CP704 to
your other AV components.
• Read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed
all audio and video connections.
Optical Digital Jack
The DV-CP704’s optical digital jack has shutter-type
cover that open when an optical plug is inserted and
close when it’s removed. Push plugs in all the way.
Caution: To prevent shutter damage, hold the optical
plug straight when inserting and removing.
RCA/phono AV Connection Color Coding
RCA/phono AV connections are usually color coded:
red, white, and yellow. Use red plugs to connect right-
channel audio inputs and outputs (typically labeled “R”).
Use white plugs to connect left-channel audio inputs and
outputs (typically labeled “L”). And use yellow plugs to
connect composite video inputs and outputs.
• Push the plugs in all the way
to make a good connection.
•To prevent interference, keep
audio and video cables away
from power cords and speaker
cables.
Before Making Any Connections
Analog audio
Right (red)
Left (white)
(Yellow)
Right (red)
Left (white)
(Yellow)
Composite video
Wrong!
Right!

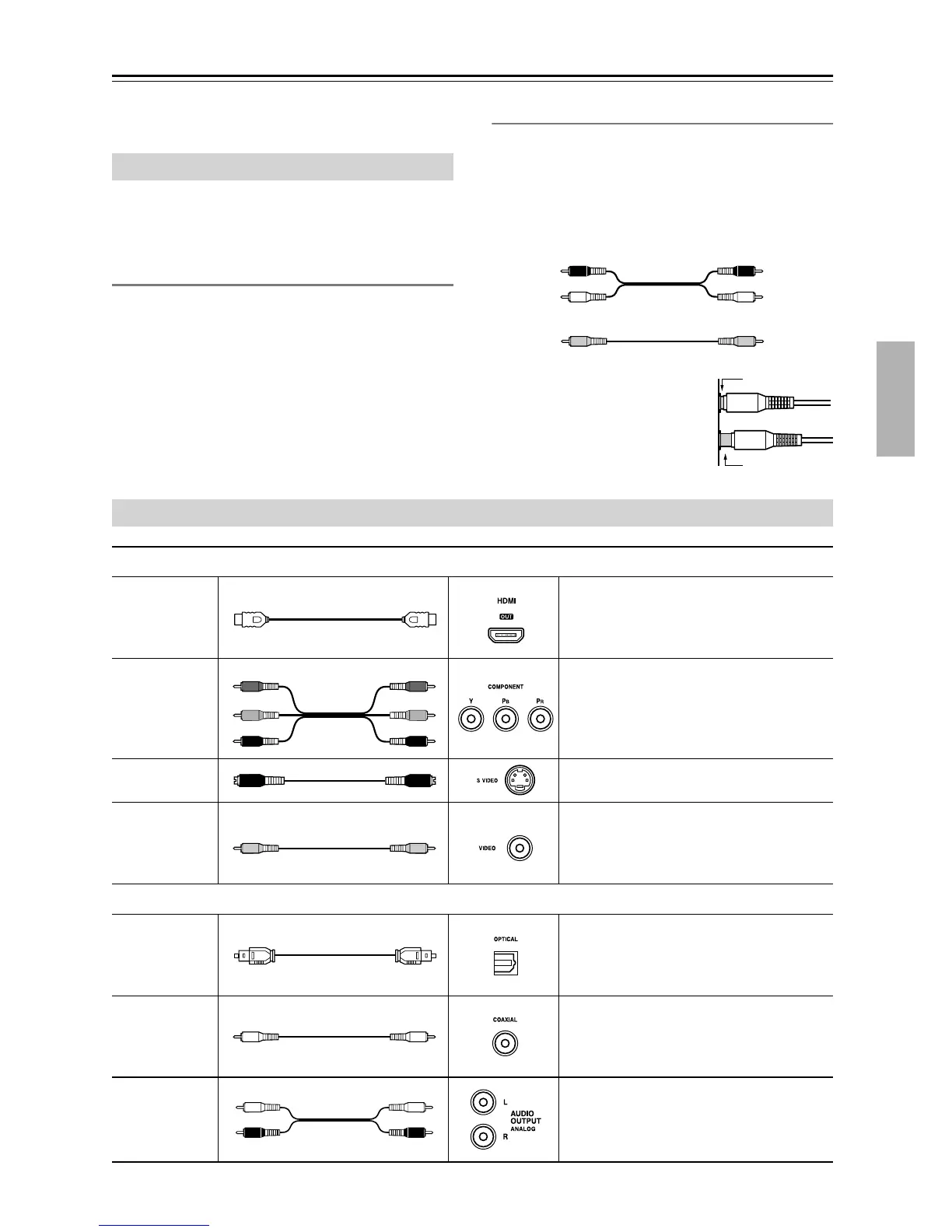

AV Cables & Connectors
Video
HDMI
HDMI connections can carry uncom-
pressed, standard or high definition digital
video and digital audio, for the best picture
and sound quality.
Component
video
Component video separates the luminance
(Y) and color difference signals (P
R, PB),
providing the best picture quality. (Some
TV manufacturers label their component
video inputs slightly differently.)
S-Video
S-Video provides better picture quality
than composite video.
Composite
video
Composite video can be found on virtually
all TVs, VCRs, and other video equipment.
Use only dedicated composite video
cables.
Audio
Optical digital
Optical digital audio connections with the
optical digital audio output and a suitable
AV receiver, you can enjoy DVD-Videos
with surround sound.
Coaxial digital
Coaxial digital audio connections with the
coaxial digital audio output and a suitable
AV receiver, you can enjoy DVD-Videos
with surround sound.
Analog
RCA/phono analog audio connectors can
be found on virtually all AV components.
C B C B P B
//
P
B
C R C R P R P/ / R
YY

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
