Onkyo DV CP704 User Manual

23
Basic Playback
This section explains how to load and remove discs.
Notes:
•You can load up to six discs. You don’t have to load all
six discs every time.
• When the disc tray is closed, all of the disc indicators
appear until the DV-CP704 has checked each bay for
the presence of a disc. If a bay is found to have no disc,
the corresponding indicator disappears.
• The disc tray can be opened and closed even while the
DV-CP704 is in Standby mode, so you don’t have to
turn it on to load or remove your discs. (The disc tray
may take several seconds to open.)
• The DV-CP704 supports 8 cm and 12 cm discs. To
avoid damaging your discs or DV-CP704, always
place discs in the center of the disc bays.
• Only load discs that are supported by the DV-CP704
(see page 7). Don’t load cartridge-type discs.
•To avoid personal injury, keep your hands away from
the disc tray as it closes.
•Always use the OPEN/CLOSE [ ] button to open
and close the disc tray. Never push the disc tray, and
don’t touch it, or obstruct it while it’s opening or clos-
ing. Don’t press down on the disc tray while it’s open,
and don’t load anything other than supported discs.
Doing so may damage your discs or DV-CP704.

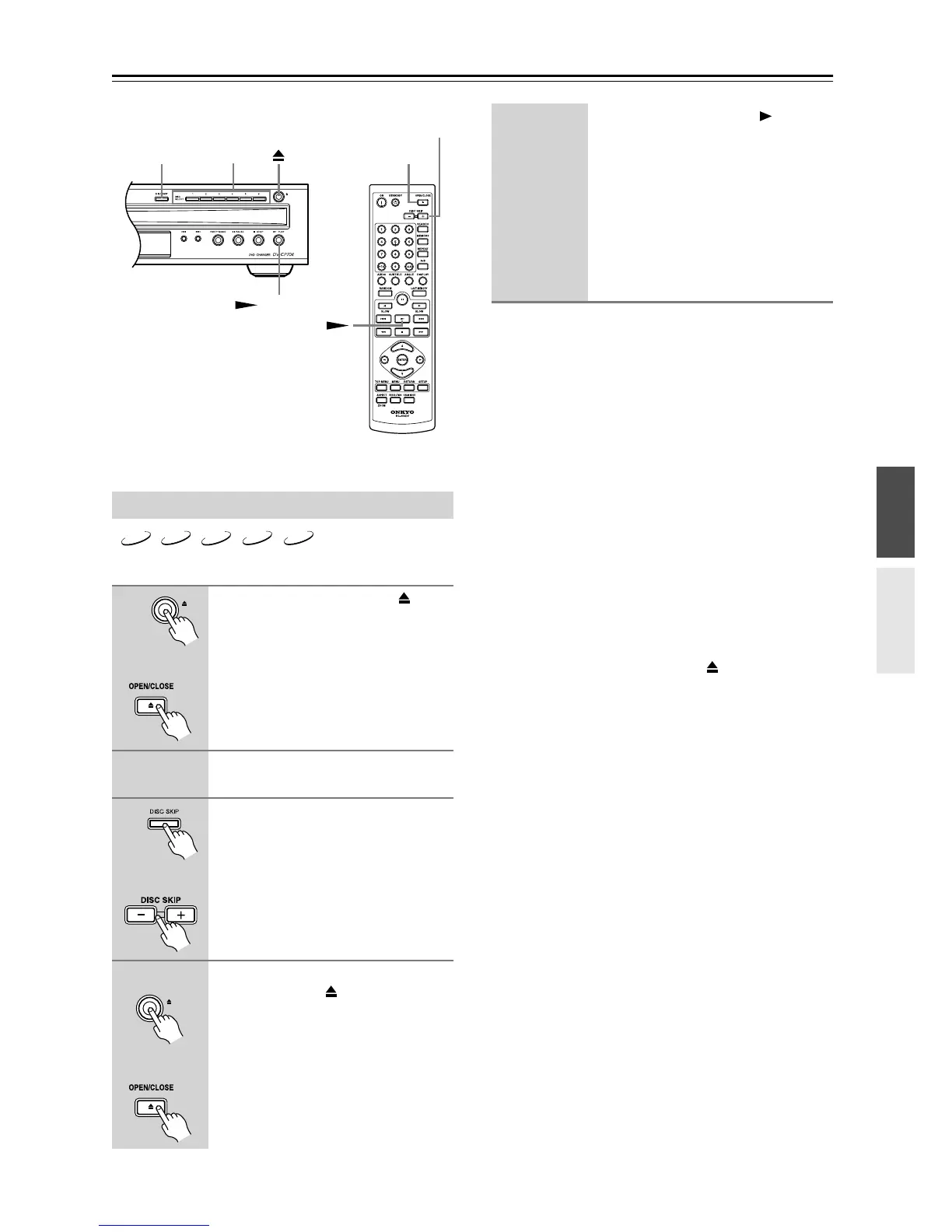

Loading & Removing Discs
1
Press the OPEN/CLOSE [ ]
button.
The disc tray opens and the six disc
number indicators appear on the dis-
play. A circle appears around the num-
ber of the disc bay on the right.
2
Place a disc, label side up, into
each bay.
3
Press the [DISC SKIP] button to
access the other disc bays.
The disc tray turns counterclockwise
two bays at a time.
Press the remote controller’s DISC
SKIP [+] button to turn the disc tray
counterclockwise. Press the DISC
SKIP [–] button to turn it clockwise.
4
When you’ve finished, press the
OPEN/CLOSE [ ] button again.
The disc tray closes.
See page 24 for information on select-
ing and playing discs.
PLAY
OPEN/CLOSE
DISC SKIP
DISC SKIP
DISC
SELECT
DVD CD MP3 WMA JPEG
Remote controller
Remote controller
Remote controller
Tip: If you press the Play [ ] button,
the disc tray will close and playback of
the disc in the right bay will start auto-
matically. If there is no disc in that bay,
the DV-CP704 will check the other
bays and play the first disc it finds.
Tip: If you press one of the DISC
SELECT 1–6 buttons, the disc tray will
close and playback of the selected disc
will start automatically.

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
