Onkyo DV CP704 User Manual

43

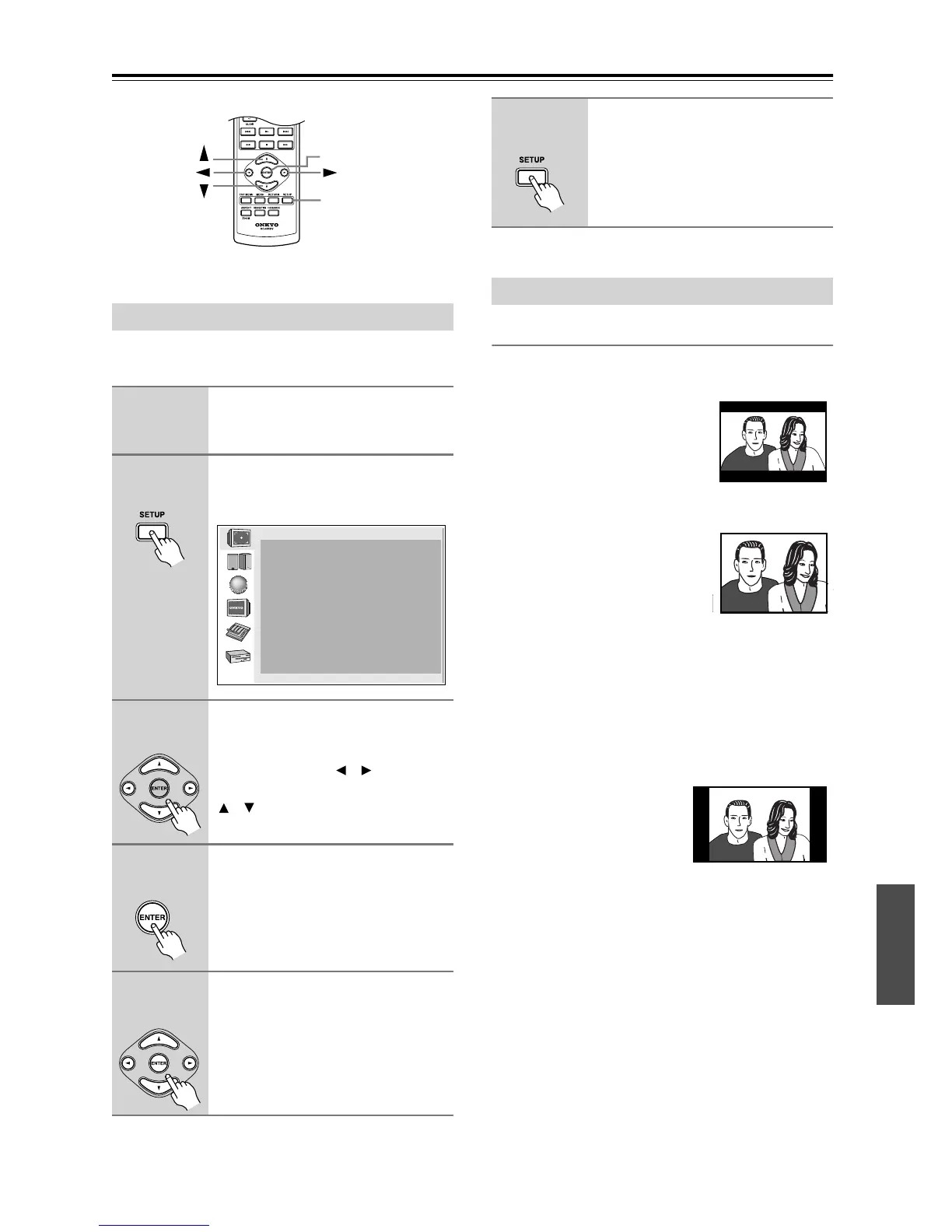

Configuring the DV-CP704—Continued
This section explains how to use the onscreen setup
menus.
TV Shape
With this setting you can select a picture format to match
the aspect ratio of your TV.
4:3 Letter box (default): Choose
this option if you have a standard
TV (4:3 aspect ratio). When you
watch widescreen DVD-Video
movies, the entire picture will be
visible and there will be black
bars at the top and bottom of the screen, as shown.
4:3 Pan & Scan: Choose this
option if you have a standard TV
(4:3 aspect ratio) and want to use
the full height of the screen when
watching widescreen
DVD-Video movies. In order to
use the full height of the screen, the picture will be
cropped on both sides, as shown. This option won’t
work with discs that don’t support pan and scan.
16:9 Widescreen: Choose this option if you have a
widescreen TV (16:9 aspect ratio). Depends on TV,
the picture appears stretched when watching programs
in 4:3 format.
16:9 Compressed: Choose
this option if you have a
widescreen TV (16:9 aspect
ratio) and the picture appears
stretched when watching pro-
grams in 4:3 format. Some
widescreen TVs have a setting to correct this. If your
TV doesn’t, and 4:3 programs appear stretched, select
this option to correct the problem.
Notes:
• This setting does not apply to DVD menus.
• When the HDMI OUT signal is at a resolution of 720p
or 1080i, programs in 4:3 format will appear stretched,
so we recommend that you select the 16:9 Com-
pressed option.
•With some DVD-Video discs this setting may have no
effect. See the disc’s sleeve notes to see which picture
format is used.
Using the Onscreen Setup Menus
1
Turn on your DV-CP704 and TV.
On your TV, select the video input to
which the DV-CP704 is connected.
2
Press the [SETUP] button.
The onscreen setup menu appears, as
shown.
3
Use the remote controller’s navi-
gation buttons to navigate the
menus.
Use the Left/Right [ ]/[ ] buttons to
move left or right. Use the Up/Down
[ ]/[ ] buttons to move up or down.
4
When you’ve selected an item,
press the [ENTER] button to see
the available options.
5
Use the navigation buttons to
select the options, and press the
[ENTER] button to confirm your
selection.
Press the [RETURN] button to go back
one step.
ENTER
SETUP
Remote controller
TV Shape
HDMI Output Setting
View Mode
HD Resolution
Progressive Setting
Video Black Level
HD Jpeg mode
Sharpness
Brightness
: Off
: Off
: Normal
: Auto
: Interlace
: Light
: Level 4
: Level 4
: 4:3 Letter box
Remote controller
Remote controller
Remote controller
6
When you’ve finished, press the
[SETUP] button again.
The onscreen setup menu closes.
Picture Menu
Remote controller

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
