Onkyo DV CP704 User Manual

13
Controls & Connectors—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
A REMOTE CONTROL
These (Remote Interactive) connectors can be
connected to the connectors on your other
Onkyo AV components for interactive control.
B ANALOG AUDIO OUTPUT
These RCA/phono connectors can be connected to
analog audio inputs on a hi-fi amp, or AV receiver.
C COAXIAL AUDIO OUTPUT
This coaxial digital audio output can be connected
to a coaxial digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
D OPTICAL AUDIO OUTPUT
This optical digital audio output can be connected to
an optical digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
E HDMI OUT
This HDMI jack outputs digital video and audio and
can be connected to an HDMI input on a compatible
TV or other component.
F COMPONENT VIDEO OUTPUT
These RCA/phono connectors can be used to con-
nect a TV or projector with component video inputs.
G S VIDEO OUTPUT
This connector can be used to connect a TV or pro-
jector with an S-Video input.
H VIDEO OUTPUT
This RCA/phono connector can be used to connect
a TV or projector with a composite video input.
I Power cord
This power cord should be connected to a suitable
wall outlet.
See page 18–21 for connection information.

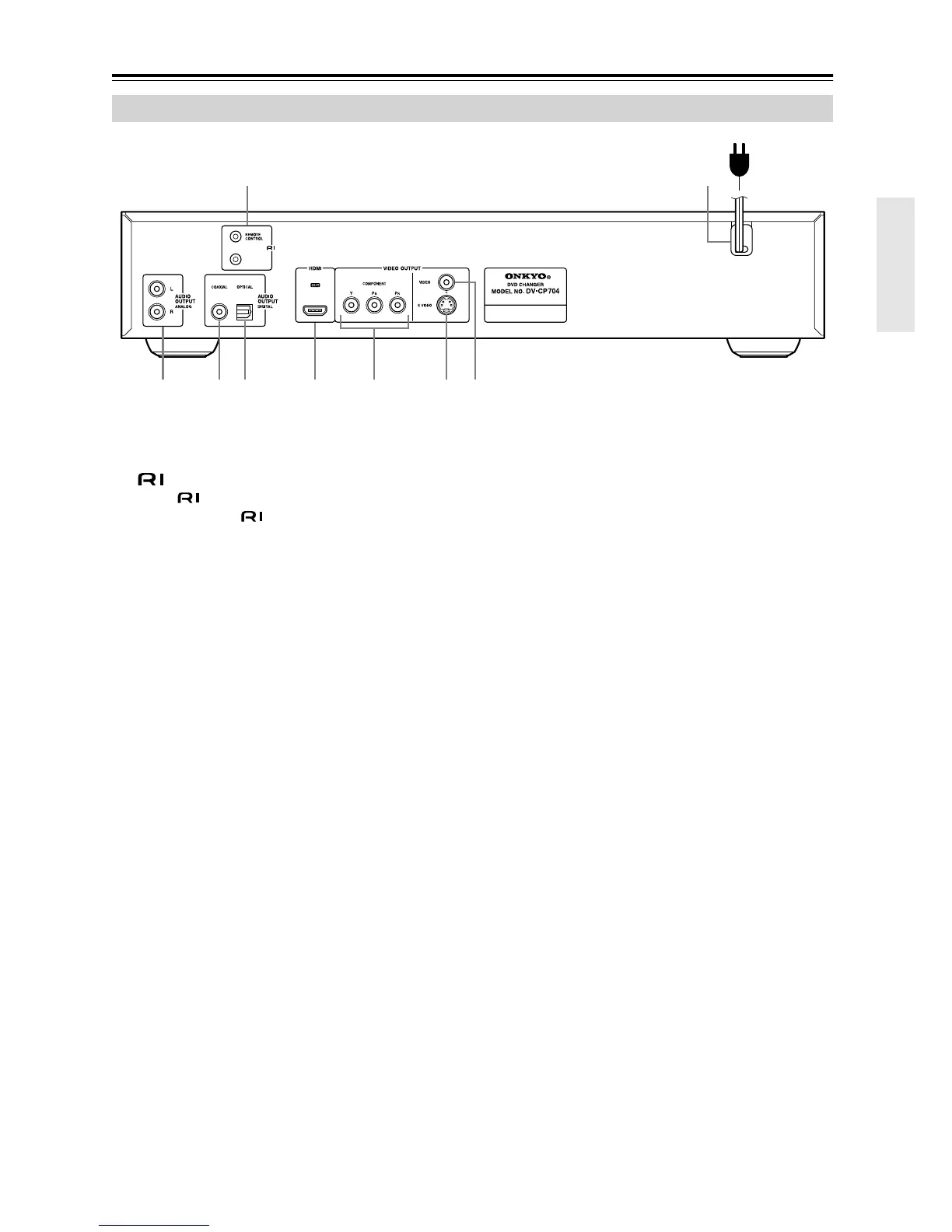

Rear Panel
2 5 6 7 83 4
1
9

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
