Introduction
Make sure you have the following accessories:
In catalogs and on packaging, the letter at the end of the product
name indicates the color. Specifications and operation are the
same regardless of color.
Highlights
• Dolby
*1
Digital and DTS Digital Out
*2
• Holds up to six discs
• Chain mode for successive disc playback
•Party mode plays discs in random order
•DVD-Video playback
• Audio CD playback
• MP3/WMA
*3
playback
• JPEG picture display and slideshow
• CD-R, CD-RW (Audio CD, MP3/WMA/JPEG)
•DVD-R/RW, DVD+R/RW (DVD-Video, MP3/WMA/
JPEG)
• Direct digital path for signal purity
•Vector Linear Shaping Circuitry
*4
Video
• Advanced 108 MHz/14-bit video D/A converter
• HDMI
*5
digital interface
• Component video output
• S-Video and composite video outputs
•Title, chapter, track, or time search
• Last Memory function allows you to resume playback
from a specific point on a DVD-Video disc, even if
that disc has been removed from the DV-CP704
• Supports 4:3 and 16:9 aspect ratio TVs
• Multiple camera angle support
•Parental Lock function
• Screen Saver function
Audio
• Audiophile-class performance
• Dynamic Range Control setting
• 192 kHz/24-bit D/A converter
• Coaxial digital output
• Optical digital output
• Analog output
Others
• Load discs without stopping playback
• Adjustable display brightness
• Slow motion playback
•Fast forward and reverse
• Repeat playback options include: Chapter, Title, 1
Disc, All Discs, Track, and Folder (MP3/WMA)
• Random playback options include: Title, 1 Disc, All
Discs, and Folder (MP3/WMA)
• Supports up to 8 soundtracks/languages
• Supports up to 32 subtitle languages
*1. Manufactured under license from Dolby Laboratories. “Dolby”
and the double-D symbol are trademarks of Dolby Laborato-
ries.
*2. “DTS” and “DTS Digital Out” are trademarks of DTS, Inc.
*3. Windows Media, and the Win-
dows logo are trademarks, or
registered trademarks of
Microsoft Corporation in the
United States and/or other coun-
tries.
*4. VLSC and the VLSC logo are registered trademarks of Onkyo
Corporation.
*5. HDMI, the HDMI logo and High-Definition Multimedia Inter-
face are trademarks or registered trademarks of HDMI licens-
ing LLC.

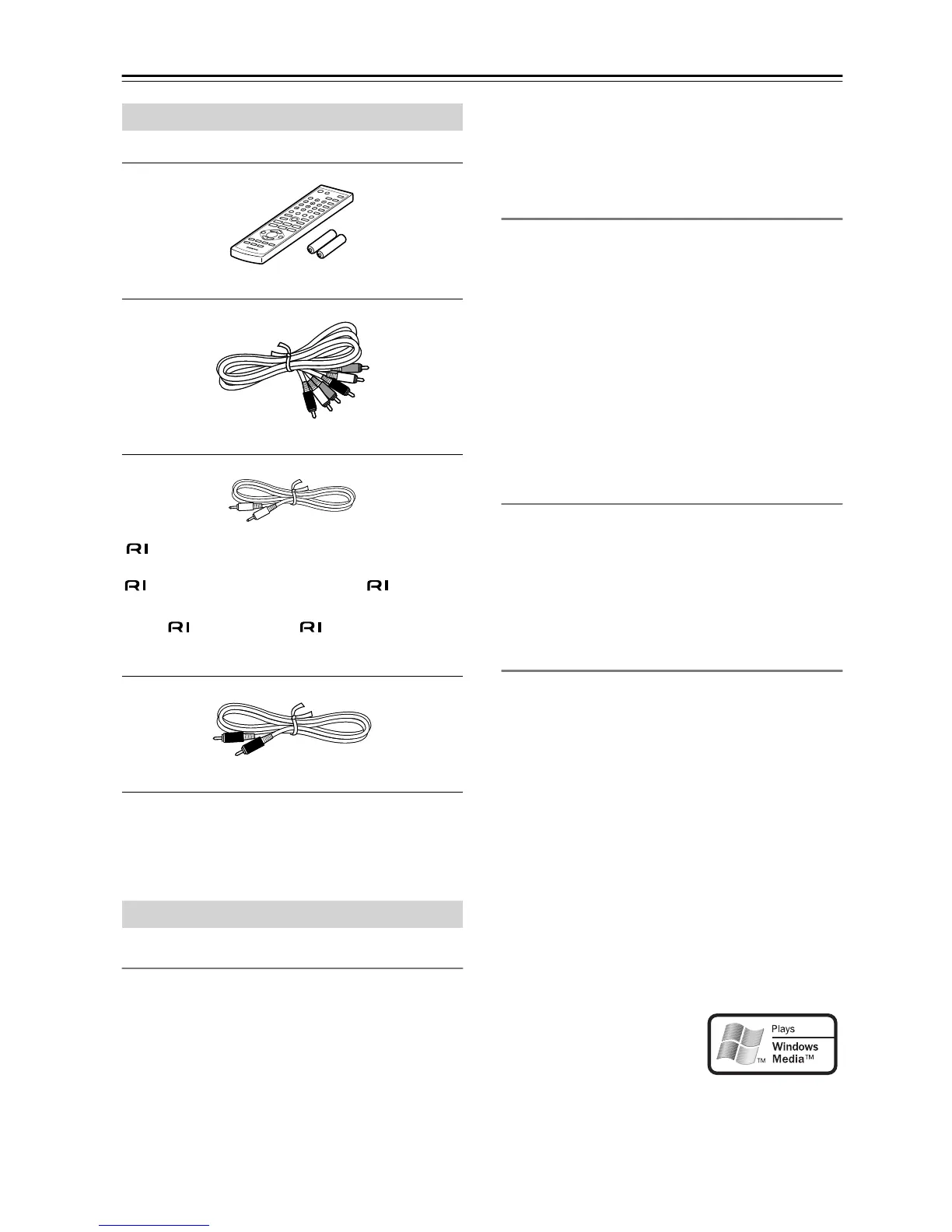

Supplied Accessories
Remote controller (RC-655DV) & 2 batteries (AA/R6)
AV connecting cable (RCA/phono) (1.5 m)
cable (0.8 m)
This cable is used to connect the DV-CP704 to other
-compatible Onkyo components for (Remote
Interactive) control.
To use , in addition to an connection, you must
make an analog audio connection (RCA) between the
DV-CP704 and your Onkyo AV receiver.
Coaxial digital cable (1.0 m)
DV-CP704 Features

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
