14
Controls & Connectors—Continued
The page numbers in parentheses show where you can
find the main explanation for each item.
A ON button (22)
This button is used to turn on the DV-CP704.
Don’t turn on the DV-CP704 until you’ve com-
pleted, and double checked all connections
(page 17).
B STANDBY button (22)
This button is used to set the DV-CP704 to Standby.
C Number buttons (28, 29, 36, 47)
These buttons are used to enter title, chapter, and
track numbers and to enter times for locating spe-
cific points in time.
To enter a single-digit number, simply press the cor-
responding button. To enter a double-digit number,
enter the numbers in order from left-to-right (e.g., to
enter 14, press [1] then [4].
The [+10] button is used to enter multiples of ten
(i.e., 10, 20, 30, and so on). For example, to enter
the number 25, press the [+10] button twice fol-
lowed by the [5] button.
D AUDIO button (26, 38)
This button is used to select foreign language
soundtracks and audio formats (e.g., Dolby Digital
or DTS).
E SUBTITLE button (26, 38)
This button is used to select subtitles.
F RANDOM button (35)
This button is used with the Random Playback func-
tion.
G SLOW [ ]/[ ] buttons (31)
These buttons are used for slow motion playback.
H Previous [ ] button (25, 27, 29, 32)
This button is used to select the previous chapter or
track. During playback it selects the beginning of
the current track.
I Play [ ] button (25)
This button is used to start playback.
J Fast Reverse [ ] button (30)
This button is used to start fast reverse.
K [], [], [], [] buttons (26)
These buttons are used to navigate DVD-Video
menus and the onscreen setup menus.
L TOP MENU button (26, 32)
This button is used to select the top menu.
M MENU button (26, 32)
This button is used to select the menu.

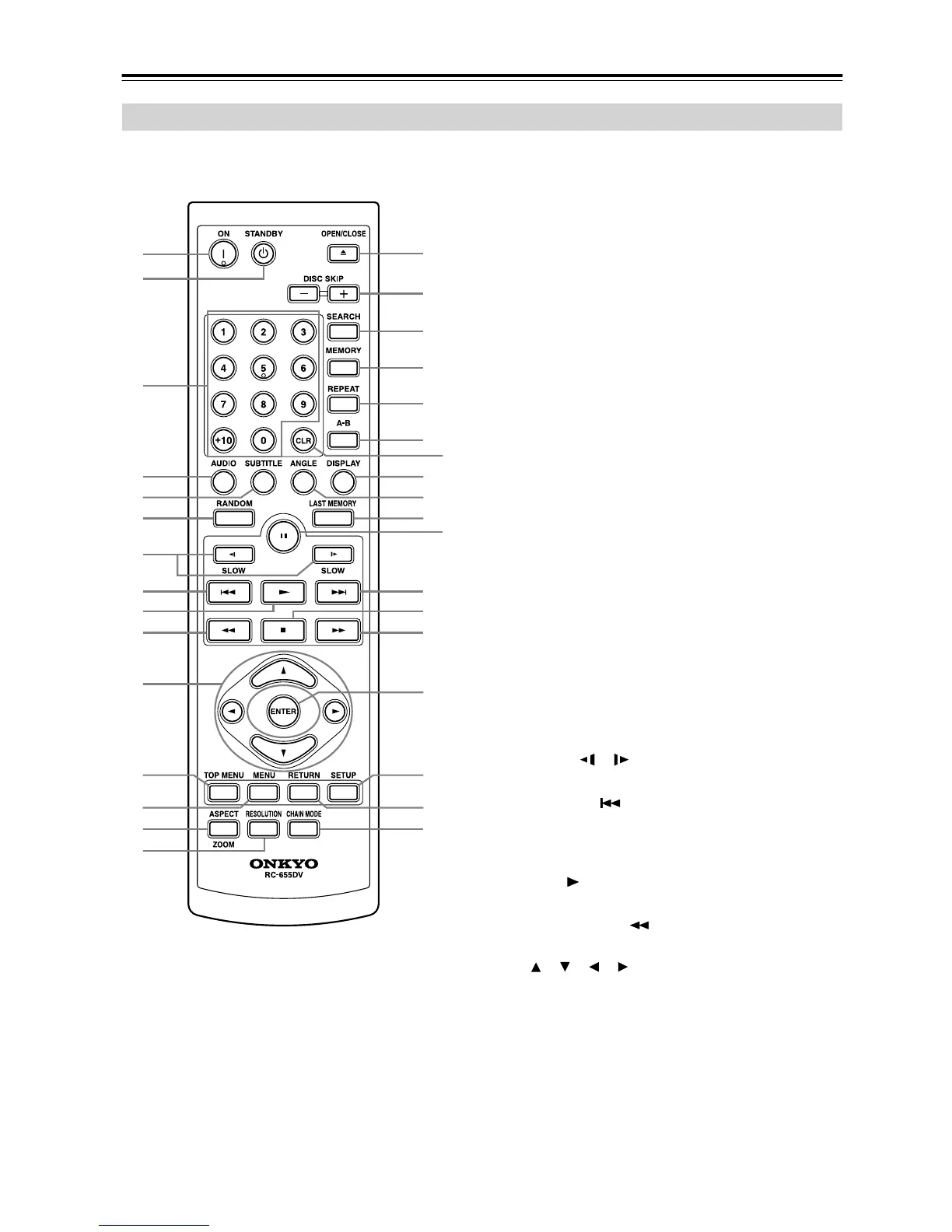

Remote Controller
1
3
4
6
2
9
b
d
P
Q
R
S
T
U
5
W
Y
7
8
a
J
c
X
M
f
V
Z
L
e
N
O
g
K

Table of Contents

Other manuals for Onkyo DV CP704

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo DV CP704 and is the answer not in the manual?

Onkyo DV CP704 Specifications

Operating Environment IconOperating Environment
Operating temperature5° to 35° C (41° F to 95° F)
Power IconPower
Power supply (U.S. model)120 V AC, 60 Hz
Power supply (Australian model)100–240 V AC, 50/60 Hz
Power consumption13 W
Power consumption in Standby mode (U.S. model)0.35 W
Power consumption in Standby mode (Australian model)0.35 W
Audio Specifications IconAudio Specifications
Signal-to-noise ratio95 dB
Audio dynamic range95 dB
Total harmonic distortion0.007% (1 kHz)
Wow and flutterBelow threshold of measurability
Video Outputs IconVideo Outputs
Component video Y1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR0.7 V (p–p), 75 Ω
S VIDEO Y0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C0.286 V (p–p), 75 Ω
Composite video1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1
Audio Outputs IconAudio Outputs
Optical output–22.5 dBm, optical connector x1
Coaxial output0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output19 pin connector
Weight and Dimensions IconWeight and Dimensions
Weight5.5 kg (12.1 lbs.)
Dimensions (W x H x D)435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
