Controls & Connectors
The page numbers in parentheses show where you can find the main explanation for each item.
A STANDBY/ON button (22, 45)
This button is used to set the DV-CP704 to On or
Standby.
Don’t turn on the power until you’ve completed,
and double checked all connections (page 22).
B STANDBY indicator (22)
This indicator lights up when the DV-CP704 is in
Standby mode.
C Disc tray (23)
The disc tray has six bays for loading up to six
discs.
D Disc tray light
This light illuminates the disc tray. It comes on
when the DV-CP704 is turned on, and is brighter
while the disc tray is open.
E DISC SKIP button (23, 24)
This button is used to select the disc bays (i.e.,
rotate the disc tray) when loading or removing
discs, and to select discs for playback.
F DISC SELECT 1–6 buttons (24)
These buttons are used to select discs. Playback
starts automatically when a disc is selected with
these buttons.
G Open/Close [ ] button (22, 23, 24)
This button is used to open and close the disc tray.
H RANDOM button (35)
This button is used with the Random function.
I DIMMER button (31)
This button is used to adjust the display brightness
and turn the disc tray light on or off.
J DISPLAY button (41)
This button is used to display information about the
current disc, title, chapter, or track, including the
elapsed time, remaining time, total time, and so on.
K REPEAT button (34)
This button is used with the Repeat function.
L Display
See “Display” on page 12 for more information.
M Remote control sensor (16)
This sensor receives control signals from the remote
controller.
N Previous [ ] button (25, 27–29, 32)
This button is used to select the previous chapter or
track. During playback it selects the beginning of
the current track.
O Next [ ] button (25, 27–29, 32, 35)
This button is used to select the next chapter or
track.
P PARTY MODE button (33)
This button is used with the Party mode function.
Q PAUSE [ ] button (25)
This button is used to pause playback.
R STOP [ ] button (25)
This button is used to stop playback and to cancel
Party mode.
S PLAY [ ] button (25)
This button is used to start playback and to cancel
fast forward and fast reverse.

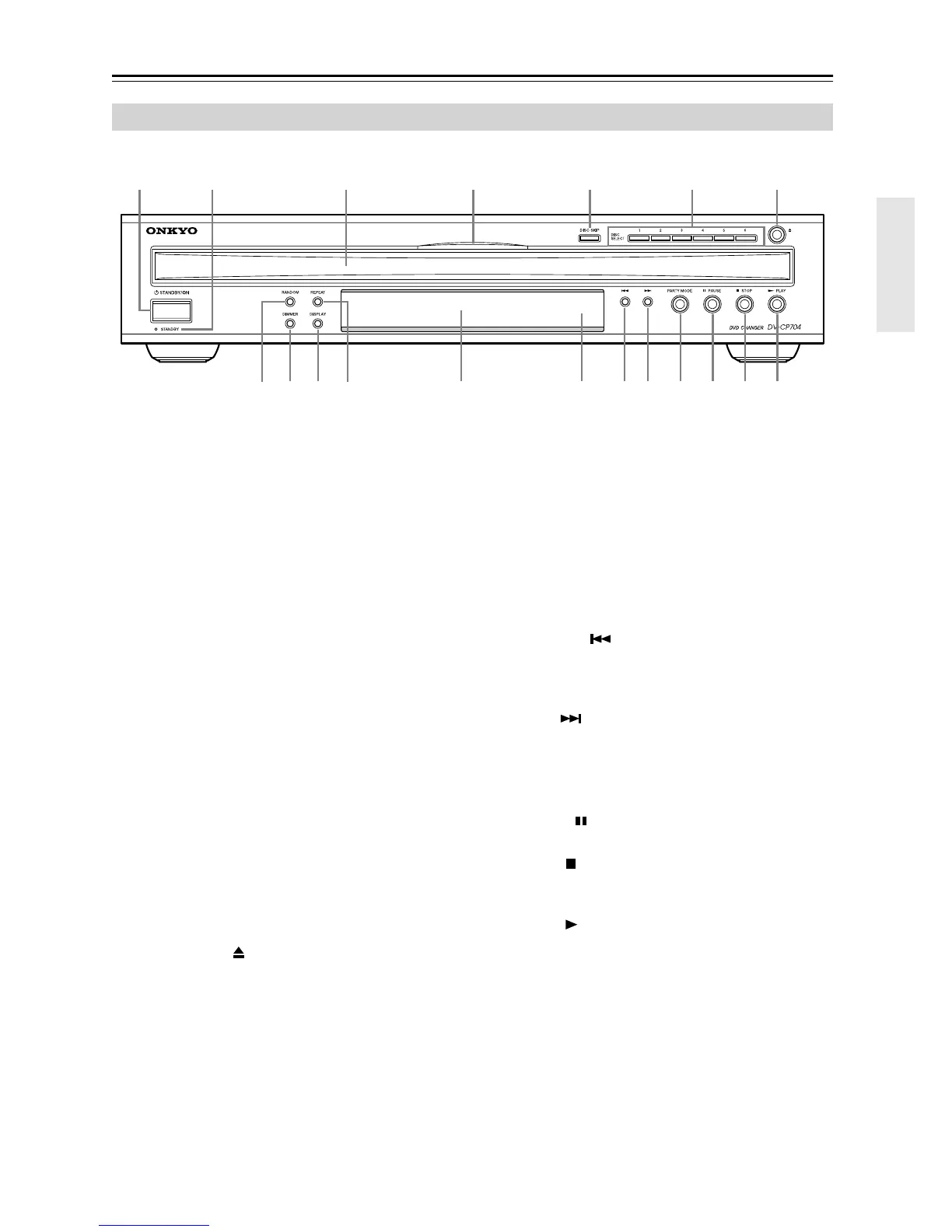

Front Panel
A
H
I
J
K
L
M
NO P
Q
RS
BDCEFG

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
