Connecting the DV-CP704—Continued
Notes:
• The DV-CP704 supports HDCP (High-bandwidth
Digital Content Protection), a protection system for
digital video. HDMI components that you connect to
the DV-CP704 must also support HDCP.
• The DV-CP704 supports High-Definition Multimedia
Interface Specification Information Version 1.0.
HDMI & the DV-CP704
■ Video
The DV-CP704’s HDMI OUT supports the following
video resolutions:
• 720 x 480p 60 Hz
• 720 x 576p 50 Hz (Australian model only)
• 1280 x 720p 50/60 Hz
• 1920 x 1080i 50/60 Hz
If the connected HDTV or projector doesn’t support a
resolution, you may get no picture.
On the DV-CP704, you can select a resolution suitable
for use with the connected HDTV or projector (see
page 39).
■ Audio Formats
The DV-CP704’s HDMI OUT supports the following
audio formats:
• PCM (48 kHz, 44.1 kHz, 96kHz)
• Dolby Digital
• DTS
If your TV only supports HDMI digital audio up to
48 kHz, change the Linear PCM Out setting to Down
Sample On (see page 45).
If your TV doesn’t support Dolby Digital, set the Digital/
HDMI Audio Out setting to PCM (see page 45).
If your TV doesn’t support DTS, the DV-CP704 will not
be able to play DTS format audio or soundtracks. In this
case, on your DVD-Video disc’s audio setup menu,
select an audio format other than DTS.
• The remote controller supplied with Onkyo AV
receiver or amplifiers can be used to control the
DV-CP704.
• The function of the upper and lower connectors are
the same. Connect to either one.
• Connecting an cable only does not make the sys-
tem operational. You must also connect the audio
cables as well.
•For remote control operation, you must make an ana-
log RCA connection between your DV-CP704 and the
other AV component, even if they are connected digi-
tally.

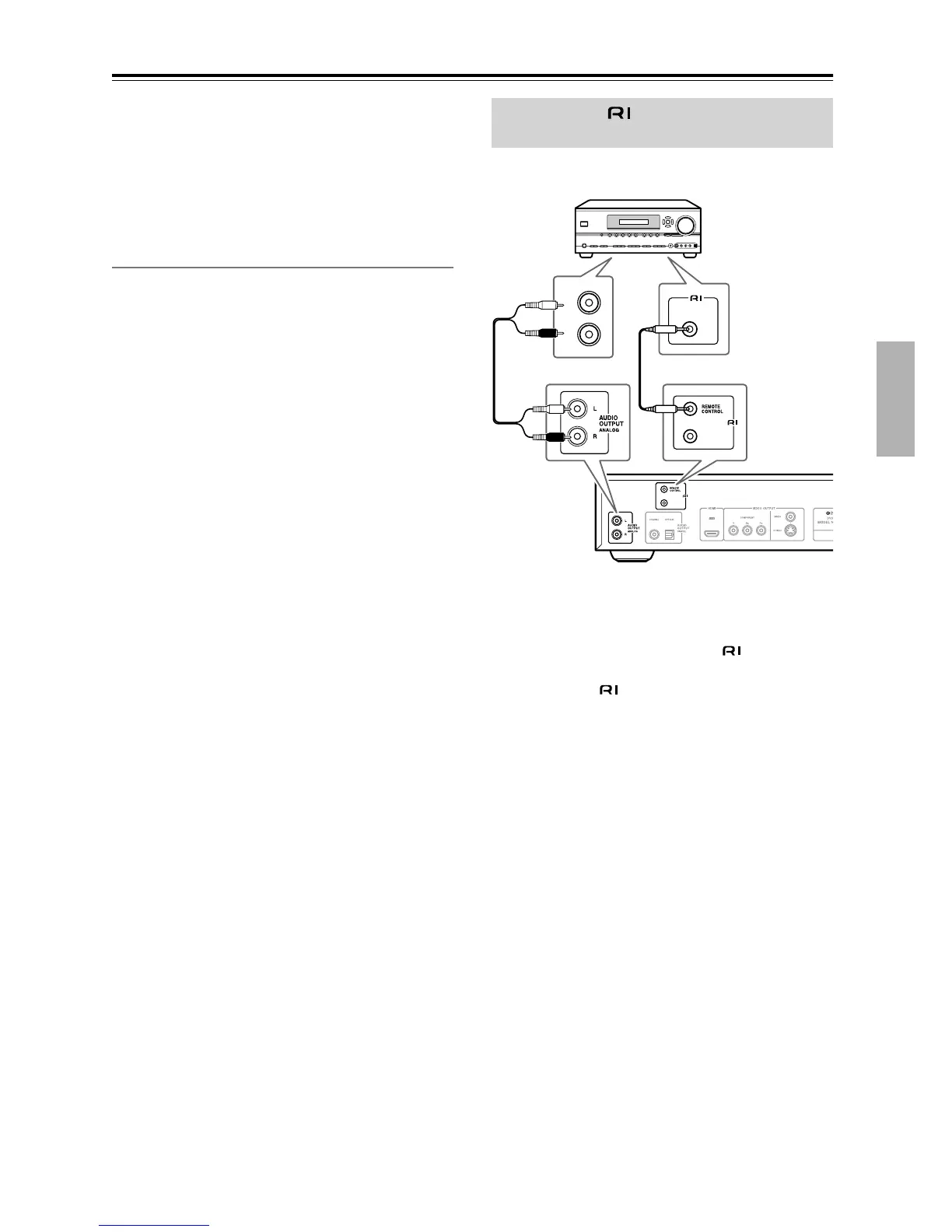

Connecting -compatible
Components
REMOTE
CONTROL
AV receiver
L
R
IN

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
