Controls & Connectors—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
1 CHAIN MODE, ALL, DVD & CD indicators
(33)
The CHAIN MODE indicator appears when the
Chain mode function is on. The ALL, DVD, and CD
indicators show the type or Chain mode selected.
When Party mode is selected, the CHAIN MODE
and CD indicators appear.
2 DISC indicator
The number of the currently selected disc appears
here.
3 TITLE indicator
While stopped, the total number of titles on the cur-
rent DVD-Video disc is displayed here. During
playback, the number of the current title is dis-
played.
4 CHP indicator
This indicator appears while the number of the cur-
rent chapter is being displayed.
5 TRACK indicator
This indicator appears while track numbers are
being displayed. While stopped, the total number of
tracks on the current audio CD, or MP3/WMA disc
are displayed. During playback, the number of the
current track is displayed.
6 PRGV indicator
This indicator appears when the Progressive Scan-
ning function is on.
7 LAST indicator (40)
This indicator appears when the Last Memory func-
tion has been set.
8 TOTAL indicator
This indicator appears while the total time is being
displayed.
9 REMAIN indicator
This indicator appears while the remaining time is
being displayed.
0 Camera angle indicator (37)
This indicator appears if the DVD-Video disc being
played features multiple camera angles.
A Play indicator (25)
This indicator is shown during playback.
B Pause indicator (25)
This indicator appears when playback is paused.
C Disc indicators 1–6 (23)
These indicators show how many discs are loaded.
The number of the current disc has a circle around
it.
When the disc tray is closed, all of the disc indica-
tors appear until the DV-CP704 has checked each
bay for the presence of a disc. If a bay is found to
have no disc, the corresponding indicator disap-
pears.
D Chapter & track number
Chapter and track numbers appears here.
E Time display
Time information, such as total time, remaining
time, and so on, is displayed here in hours, minutes,
and seconds. Other messages are also displayed.
F CDVD indicator
This indicator shows the type of disc currently
selected:
DVD: DVD-Video, DVD-R, DVD-RW, DVD+R, or
DVD+RW
CD: Audio CD, MP3/WMA/JPEG CD-R, or
CD-RW

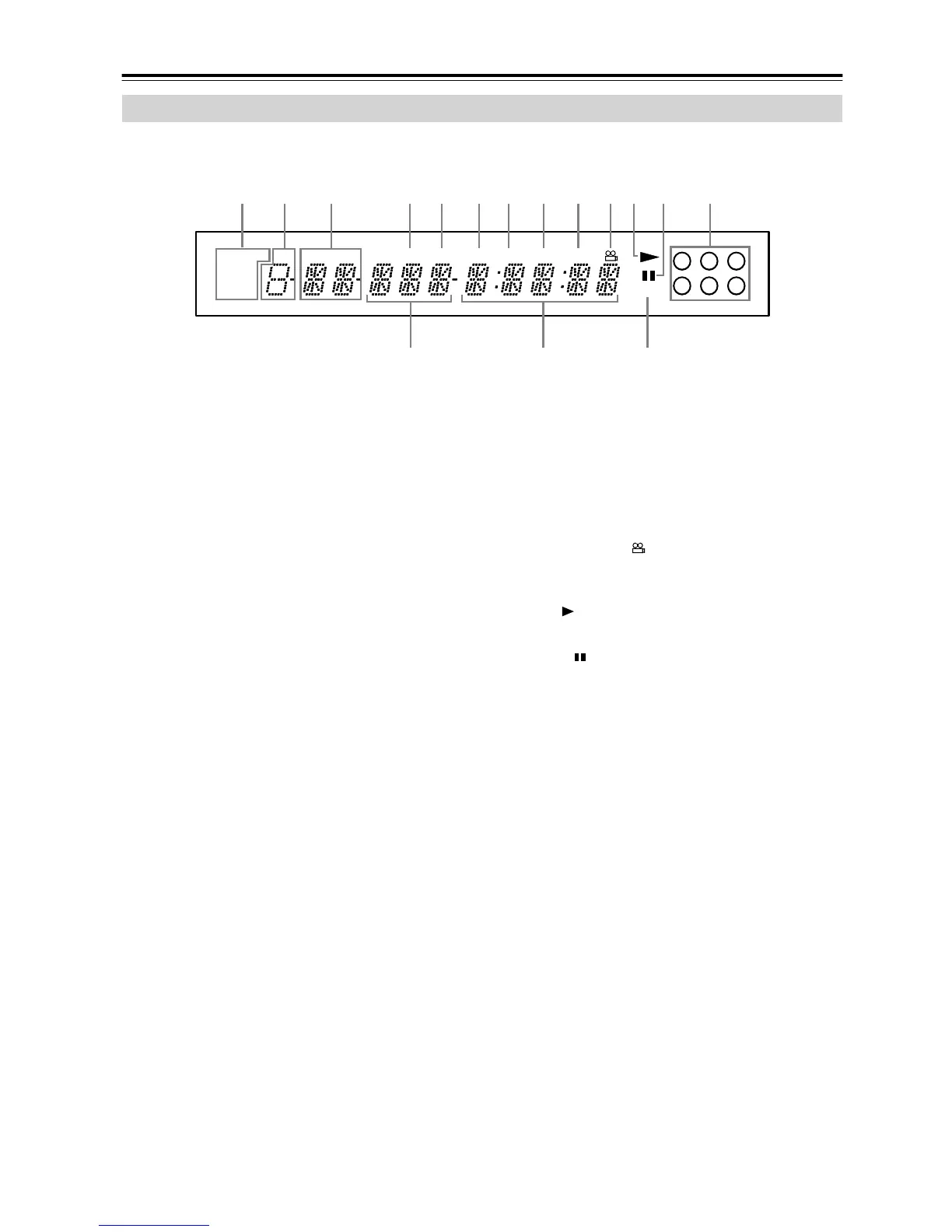

Display
CD
DVD
ALL
CHAIN MODE DISC TITLE CHP TRACK PRGV LAST TOTAL REMAIN
1 2 3
4 5 6
CDVD
13
DEF
45 67 8 90AB C2

Onkyo DV CP704 Specifications

Operating Environment

Operating temperature	5° to 35° C (41° F to 95° F)

Power

Power supply (U.S. model)	120 V AC, 60 Hz
Power supply (Australian model)	100–240 V AC, 50/60 Hz
Power consumption	13 W
Power consumption in Standby mode (U.S. model)	0.35 W
Power consumption in Standby mode (Australian model)	0.35 W

Audio Specifications

Signal-to-noise ratio	95 dB
Audio dynamic range	95 dB
Total harmonic distortion	0.007% (1 kHz)
Wow and flutter	Below threshold of measurability

Video Outputs

Component video Y	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x3
Component video PB/PR	0.7 V (p–p), 75 Ω
S VIDEO Y	0.7 V (p–p), 75 Ω, negative sync, 4-pin mini DIN x1
S VIDEO C	0.286 V (p–p), 75 Ω
Composite video	1.0 V (p–p), 75 Ω, negative sync, RCA/phono x1

Audio Outputs

Optical output	–22.5 dBm, optical connector x1
Coaxial output	0.5 V (p–p), 75 Ω, RCA/phono x1
Analog output	2.0 V (rms), 540 Ω, RCA/phono x2
HDMI output	19 pin connector

Weight and Dimensions

Weight	5.5 kg (12.1 lbs.)
Dimensions (W x H x D)	435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17 ins.)
