Onkyo R-811RDS User Manual

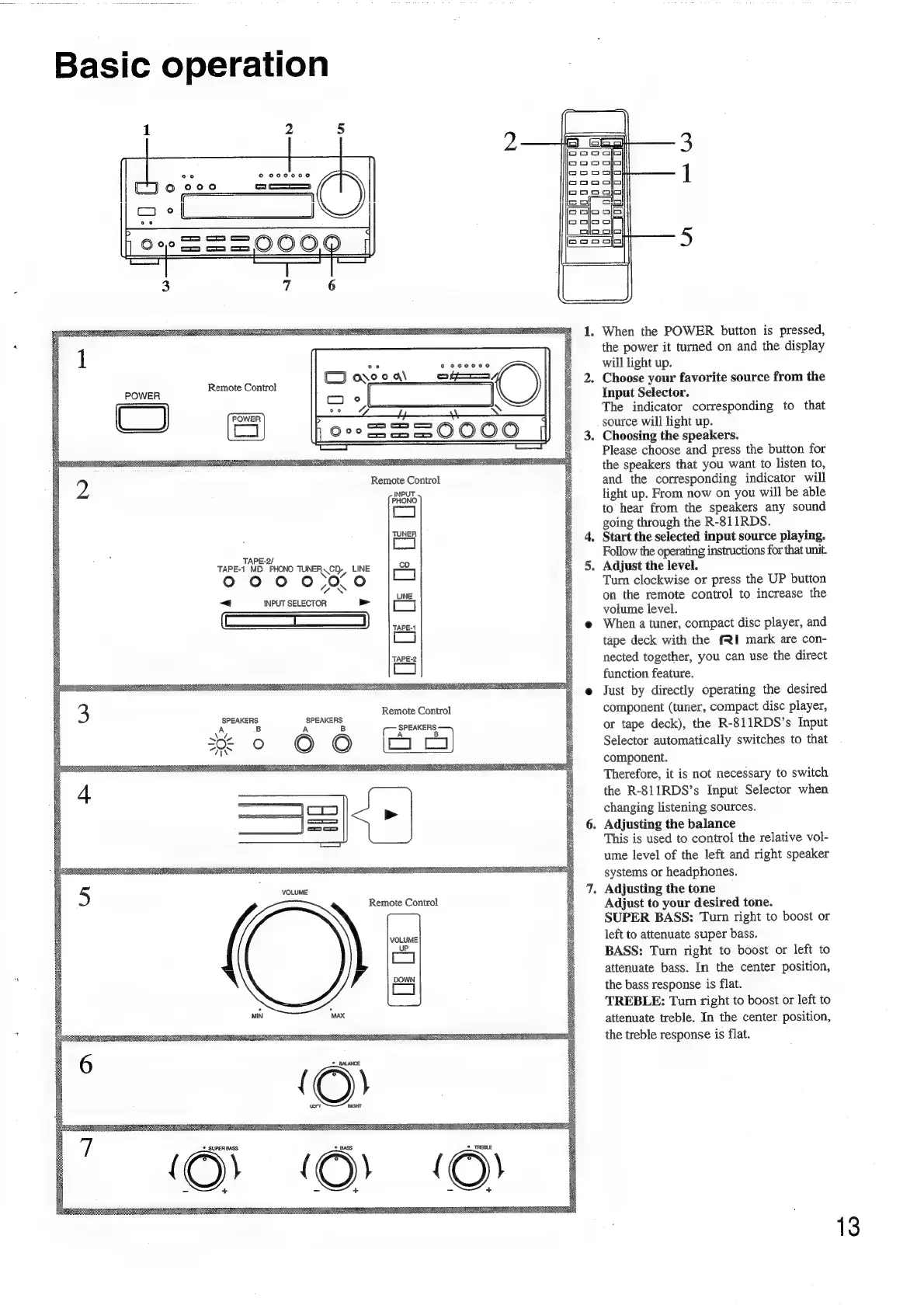

Basic operation
CO acoa
Co}
°° 4
Remote Control
oes S=S0000 |
2
Remote
Control
INPUT.
PHONO
TAPE-2/
TAPE-1 MD PHONO TUNER Woy, LINE
000 0/00
~< leursueeron - itd
wees
TAPE-2
Remote Control
SPEAKERS SPEAKERS
A B A B SPEAKERS
xo OO fF
VOLUME
Remote Control
VOLUME
4
* SUPER BASS
(©)
. When the POWER button is pressed,
the power it turned on and the display
will light up.
. Choose your favorite source from the
Input Selector.
The indicator corresponding to that
source will light up.
. Choosing the speakers.
Please choose and press the button for
the speakers that you want to listen to,
and the corresponding indicator will
light up. From now on you will be able
to hear from the speakers any sound
going through the R-811RDS.
Start the selected input source playing.
Follow the operating instructions for that unit
. Adjust the level.
Turn clockwise or press the UP button
on the remote control to increase the
volume level.
When a tuner, compact disc player, and
tape deck with the RI mark are con-
nected together, you can use the direct
function feature.
Just by directly operating the desired
component (tuner, compact disc player,
or tape deck), the R-811RDS’s Input
Selector automatically switches to that
component.
Therefore, it is not necessary to switch
the R-811RDS’s Input Selector when
changing listening sources.
. Adjusting the balance
This is used to control the relative vol-
ume level of the left and right speaker
systems or headphones.
. Adjusting the tone
Adjust to your desired tone.
SUPER BASS: Turn right to boost or
left to attenuate super bass.
BASS: Turn right to boost or left to
attenuate bass. In the center position,
the bass response is flat.
TREBLE: Turn right to boost or left to
attenuate treble. In the center. position,
the treble response is flat.
13

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
