Onkyo R-811RDS User Manual

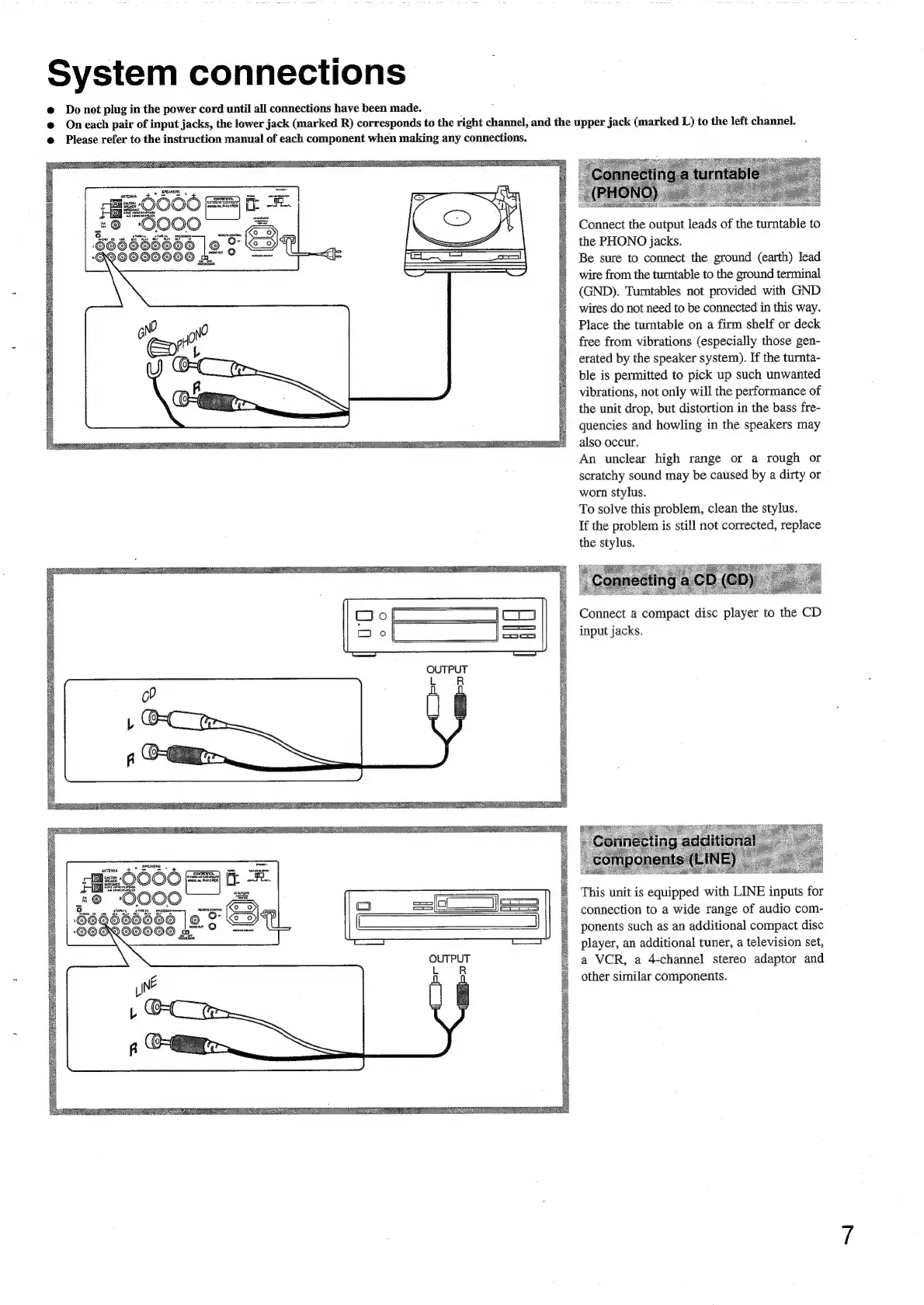

System connections
@ Do not plug in the power cord until all connections have been made.
@
On
each
pair
of
input
jacks,
the
lower
jack
(marked
R)
corresponds
to
the
right
channel,
and
the
upper
jack
(marked
L)
to
the
left
channel.
@ Please refer to the instruction manual of each component when making any connections.
Connect the output leads of the turntable to
the PHONO jacks.
Be sure to connect the ground (earth) lead
wire from the turntable to the ground terminal
(GND). Turntables not provided with GND
wires do not need to be connected in this way.
Place the turntable on a firm shelf or deck
free from vibrations (especially those gen-
erated by the speaker system). If the turnta-
ble is permitted to pick up such unwanted
vibrations, not only will the performance of
the unit drop, but distortion in the bass fre-
quencies and howling in the speakers may
also occur.
An unclear high range or a rough or
scratchy sound may be caused by a dirty or
worn stylus.
To solve this problem, clean the stylus.
If the problem is still not corrected, replace
the stylus.
Connect a compact disc player to the CD
input jacks.
Ens ike
This unit is equipped with LINE inputs for
connection to a wide range of audio com-
ponents such as an additional compact disc
player, an additional tuner, a television set,
a VCR, a 4-channel stereo adaptor and
other similar components.

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
