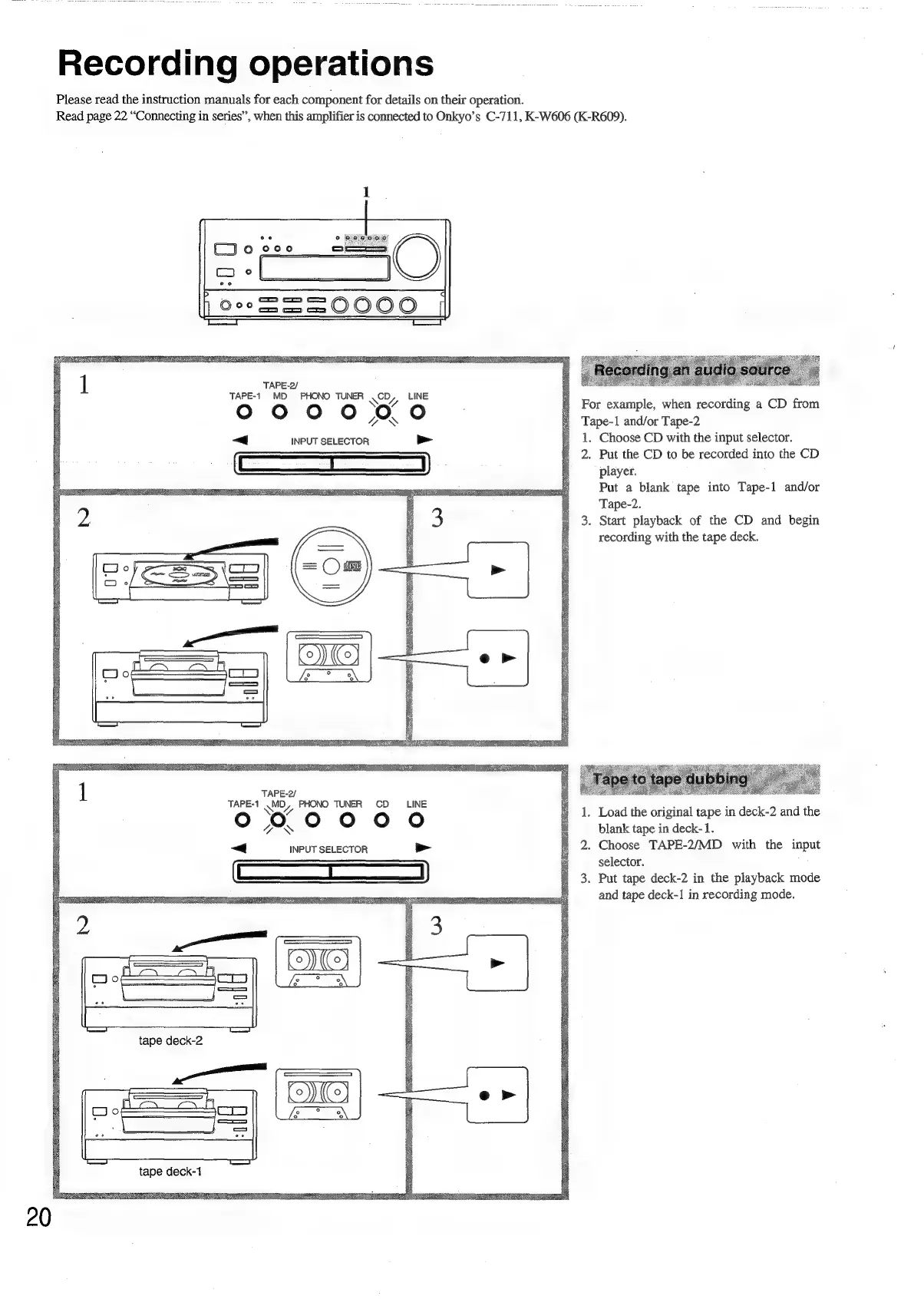

Recording operations
Please read the instruction manuals for each component for details on their operation.
Read page 22 “Connecting in series”, when this amplifier is connected to Onkyo’s C-711, K-W606 (K-R609).
CJo 308
C3 0
| Oe Ss=O0000 |
TAPE-2/
TAPE-1 MD PHONO TUNER wy LINE
0000500
~< INPUT SELECTOR >
For example, when recording a CD from
Tape-1 and/or Tape-2
1. Choose CD with the input selector.
2. Put the CD to be recorded into the CD
player.
Put a blank tape into Tape-1 and/or
Tape-2.
3. Start playback of the CD and begin
recording with the tape deck.
TAPE-2/
TAPE-1 we, PHONO TUNER CD LINE
030 0000
INPUT SELECTOR
1. Load the original tape in deck-2 and the
blank tape in deck-1.
2. Choose TAPE-2/MD with the input
selector.
3. Put tape deck-2 in the playback mode
and tape deck-1 in recording mode.
OKO
tape deck-1
20

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
