Onkyo R-811RDS User Manual

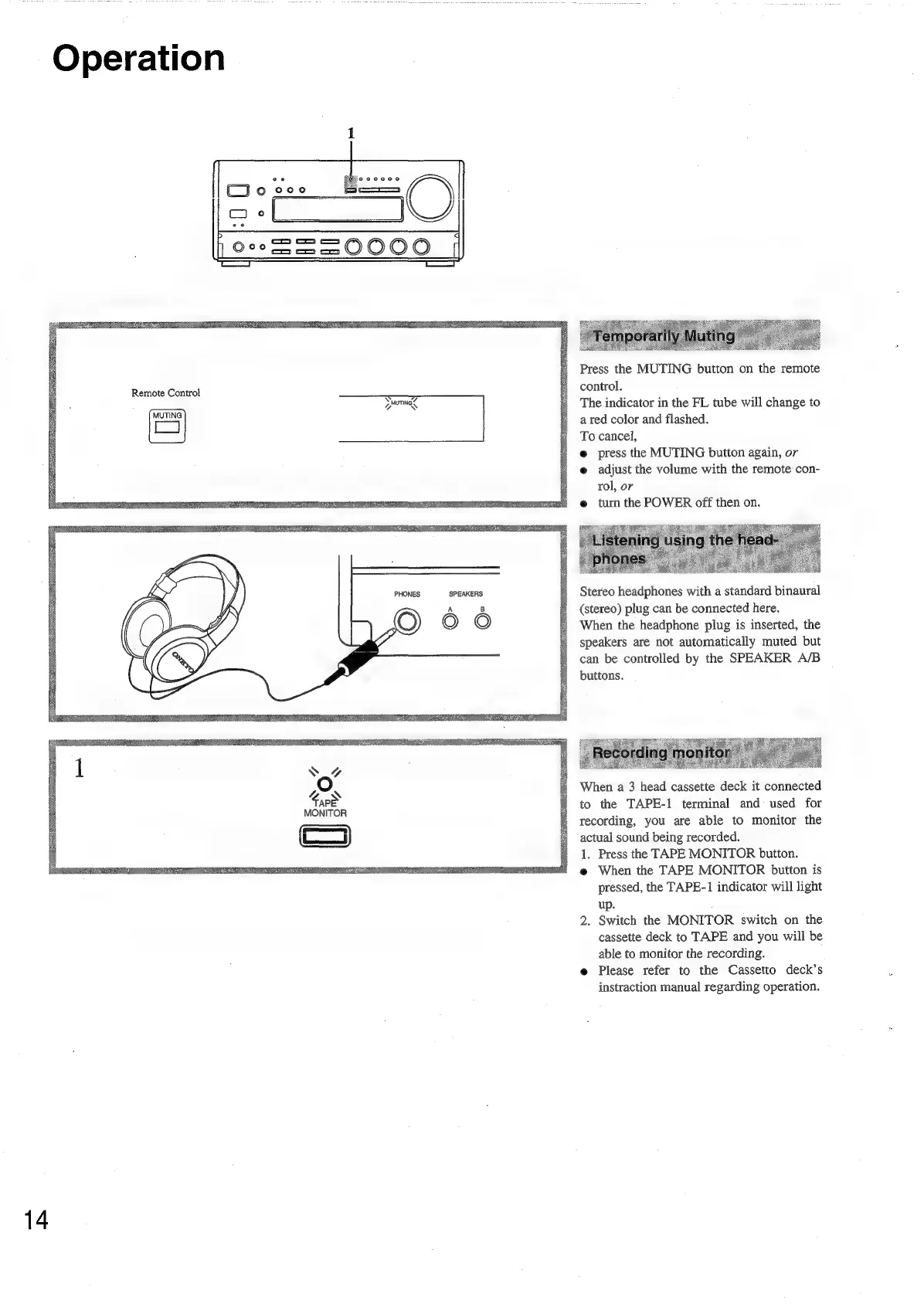

Operation
Press the MUTING button on the remote
control.
The indicator in the FL tube will change to
a red color and flashed.
Ey
To
cancel,
@ press the MUTING button again, or
e adjust the volume with the remote con-
rol, or
e@ turn the POWER off then on.
Remote Control
PHONES SPEAKERS |. Stereo headphones with a standard binaural
A B |, (stereo) plug can be connected here.
When the headphone plug is inserted, the
speakers are not automatically muted but
can be controlled by the SPEAKER A/B
buttons.
When a 3 head cassette deck it connected
to the TAPE-1 terminal and used for
recording, you are able to monitor the
actual sound being recorded.
1. Press the TAPE MONITOR button.
e@ When the TAPE MONITOR button is
pressed, the TAPE-1 indicator will light
MONITOR
up.
2. Switch the MONITOR switch on the
cassette deck to TAPE and you will be
able to monitor the recording.
e@ Please refer to the Cassetto deck’s
instraction manual regarding operation.
14

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
